• Model NO.：WZ30-25
• Scraper Type：Pull Scraper
• Load and Unload Method：Front Discharge
• Engine Power：147~515kw
• Transport Package：Suitable Package for Shipment
• Specification：Standard Configuration
• Trademark：EVANGEL
• Origin：Jiangsu, China
• Production Capacity：30 Sets, Month

Basic Info.

Model NO. WZ30-25 Scraper Type Pull Scraper Load and Unload Method Front Discharge Engine Power 147~515kw Transport Package Suitable Package for Shipment Specification Standard Configuration Trademark EVANGEL Origin Jiangsu, China Production Capacity 30 Sets/ Month

Product Description

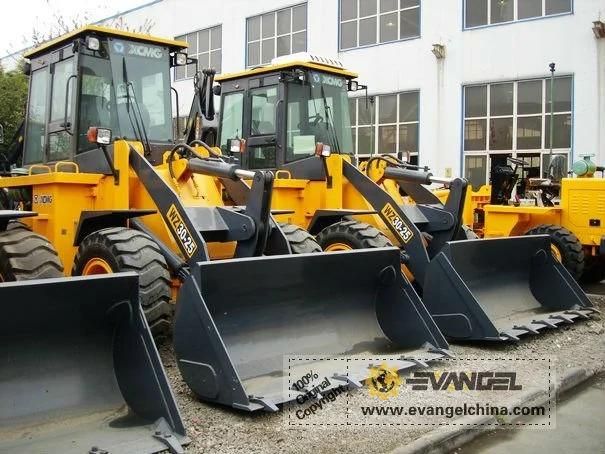

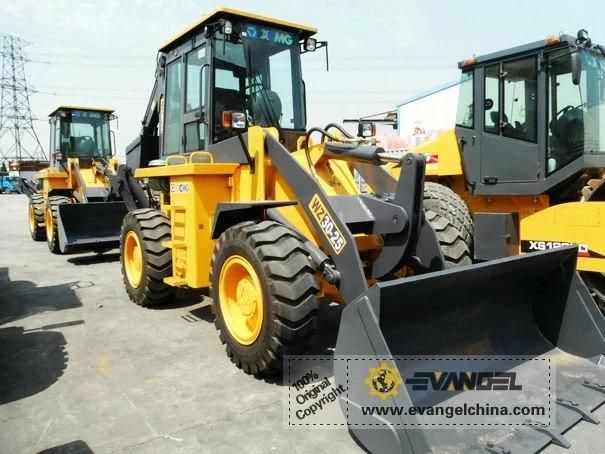

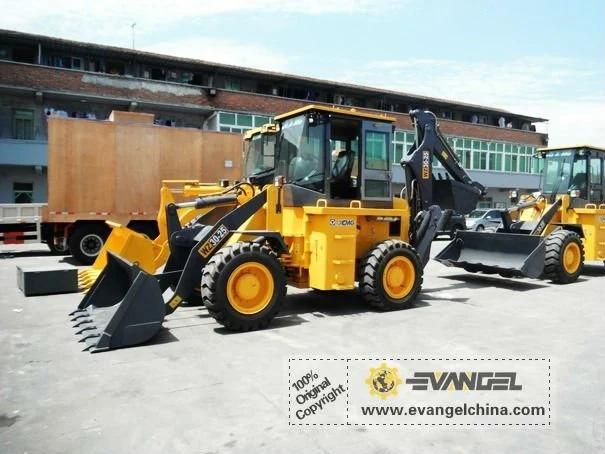

4WD WZ30-25 Backhoe Loader

Performance Characteristics:



Backhoe Loader in Chinese home, people calls its figure land generally " both ends is busy " .

 Cab

Cab can be replaced independently,Indoor with a strong air-conditioning system, during hot and cold environment,

Comfortable working, multi-band car radio, mp3 players, car stereo allows you to work more enjoyable.

Easy to operate the hydraulic tank, fuel tank, they are also independently replaceable, and are in low places,

Whole frame

The machine adopts special backhoe loader frame, using the whole welded structure, high strength characteristics.

H-leg straight leg, during mining, crushing, lifting heavy objects, the operator can feel the stability of H-type super straight legs, independent control of left and right legs can make the machine on slopes or rough terrain easily get on the horizontal position.

Working device:

Load-side adopts a unique eight-bar linkage that automatically keep the bucket level when the loading arm lift bucket . According to need, you can also add some attachments, such as a multi-bucket, fork, log grappler and so on.

Travel System:

Travel System adopts hydrostatic drive. Using German technology shift driven front axle.

Hydraulic System:

Main pump adopts Germany Rexroth pump technology, Chinese wellknown enterprises produce the pump.

All excavators adopts open hydraulic system, with good micro performance, and make the operation much stabler,

Power system

It adopts Cummins engine is optional, B3.3T-C80, power is 60 kw.



Description	Specifications	Unit
Bucket capacity(heaped)	1.0	m3
Digger capacity	0.3	m3
Dumping clearance	2700	mm
Dumping reach	950	mm
Max. steering angle	±35	°
Max. steering angle of dig working device	±85	°
Tracing speed i(F/R)	0-6.2	km/h
Tracing speed ii(F/R)	0-12	km/h
Tracing speed iii(F/R)	0-20	km/h
Tracing speed iv(F/R)	0-33	km/h
Back ispeed	0-8	km/h
Back iispeed	0-28.5	km/h
Diesel	Yuchai
Model	YC4108
Modality
Rated power	65	kw
Rated speed	2500	r/min
Wheel base	2600	mm
Tread	1700	mm
Tires	16/70-24
Max. digging depth	4400	mm
Max. digging radius	5471	mm
Overall dimension(L x W x H)	8000 x 2200 x 3350	mm
Operating weitght	9500	kg
