Hbts Electric Small Concrete Pump

Linyi Raytone Machinery Imp&Exp Co., Ltd.
  • Type：Concrete Pump
  • Shotcrete Type：No
  • Machining Process：Hydraulic
  • Structure：Cylinder Type
  • Productivity：20m3,H,25m3,H,30m3,H,40m3,H
  • Feeding Height：1100

Base Info

  • Model NO.：HBTS series
  • Vibrating Amplitude：1.1mm
  • Certification：ISO9001: 2000, CE
  • Condition：New
  • Color：According to Customers′
  • Rated Speed：1480r,Min
  • Concrete Slump Range：120-230mm
  • Cleaning Mode：High Pressure Washing
  • Aggregate Size：Breakes Tone<=30mm
  • Main Pump：Kawasaki112
  • Pump：Concrete Pump
  • Power Type：Electric
  • Weight：2200-3000kg
  • After-Sales Service Provided：Engnieers Available to Service
  • Warranty：One Year
  • Transport Package：Suitable for Sea Transportation
  • Specification：4500*1500*1800, 4500*1500*1800, 4400*1500*1700,
  • Trademark：Raytone Machinery
  • Origin：Shandong, China(Mainland)
  • HS Code：8413400000
  • Production Capacity：120 Set,Sets Per Month

Description

NO.ItemUnitHBTS30-10-45HBTS40-12-45HBTS25-8-37HBTS20-8-30 1Max Theoretical concrete output capacitym³/h30402520  2Max concrete outlet pressureMpa101288 3Concrete slumpmm120-230120-230120-230120-230 4Aggregate sizemmBreakstone<=30Breakstone<=30Breakstone<=30Breakstone<=30 5Distribution valve S ValveS ValveS ValveS Valve 6Main powerKW45453730 7Speedr/min 1480148014801480 8Concrete Cylinder diameter/strokemmφ160/1000φ170/1000φ140/1000φ140/1000 9Capacity of oil tankL200200200150 10Hopper capacitym³0.40.40.30.3 11Feeding heightmm1100110011001100 12The theoretical maximum delivery distance vertical/horizontalm150/500150/500130/400130/400  13Washing way of pipeline high pressure Washinghigh pressure Washinghigh pressure Washinghigh pressure Washing 14Dimensions(LXWXH)m4500*1500*18004500*1500*18004100*1450*17004100*1400*1450 15Total weightKg3000300025002200 17Support model fixed support legfixed support legfixed support legfixed support leg 18Hydraulic oil cooling model  air cooling radiator air cooling radiator air cooling radiator air cooling radiator 19Voltage/phaseV/HZ380/50380/50380/50380/50 20Conveying tube inner Dimmm125A/80A125A/80A125A/80A125A/80A
Other Photos:

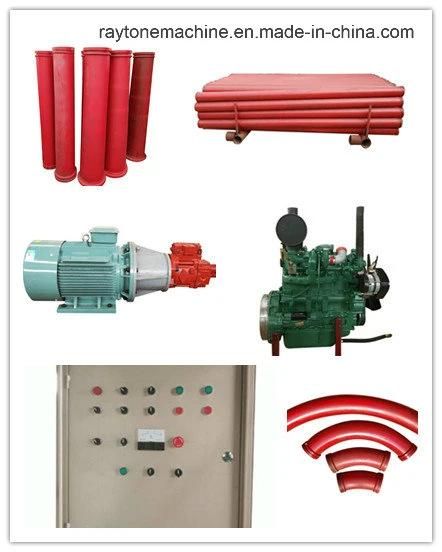

Genset and Pipes:
Hbts Electric Small Concrete Pump

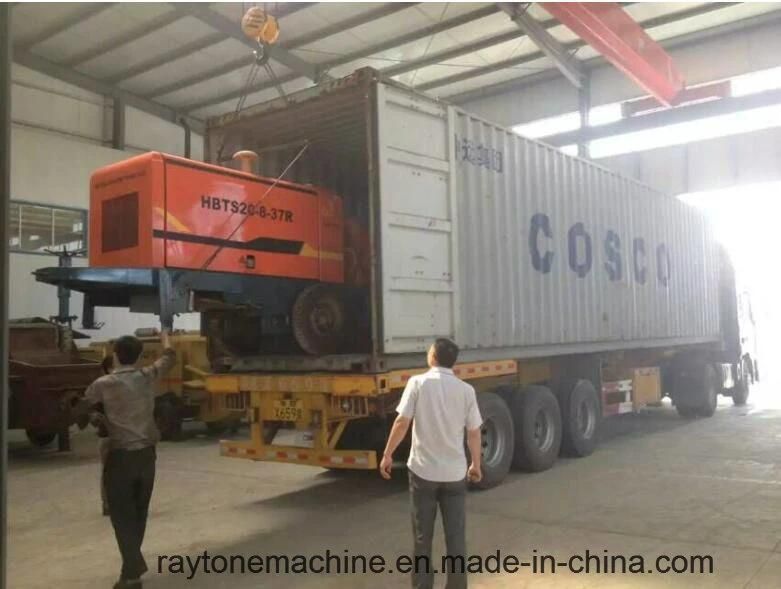

Machine Loading:

Hbts Electric Small Concrete Pump

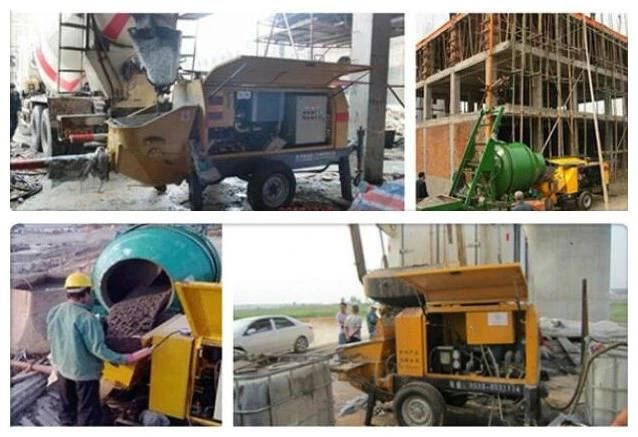

Machine Working

Hbts Electric Small Concrete Pump

Welcome for your inquiry!
