Concrete Mixing Station Batching Plant
Shanghai Super-Above Industry Holdings Co., Ltd.- Shotcrete Type：Wet
- Machining Process：Vacuum
Base Info
- Model NO.：sacms2
- Structure：Rotor Type
- Productivity：240m²,h
- Feeding Height：1400mm
- Vibrating Amplitude：2.2mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：Yellow
- Aggregate Feeding：Skip Hopper
- After-Sales Service Provided：Engineers Available
- Aggregate Size(mm)：60,80
- Accuracy of Fly Ash：1% Kg
- Transport Package：Naked Shipment
- Specification：CE
- Trademark：Super-above
- Origin：Jiangsu, China
- HS Code：8474310000
- Production Capacity：5000PC,Year
Description
Basic Info.
Model NO. sacms2 Structure Rotor Type Productivity 240m²/h Feeding Height 1400mm Vibrating Amplitude 2.2mm Certification ISO9001: 2000, CE Condition New Color Yellow Aggregate Feeding Skip Hopper After-Sales Service Provided Engineers Available Aggregate Size(mm) 60/80 Accuracy of Fly Ash 1% Kg Transport Package Naked Shipment Specification CE Trademark Super-above Origin Jiangsu, China HS Code 8474310000 Production Capacity 5000PC/YearProduct Description
Concrete Mixing Station Batching Plant

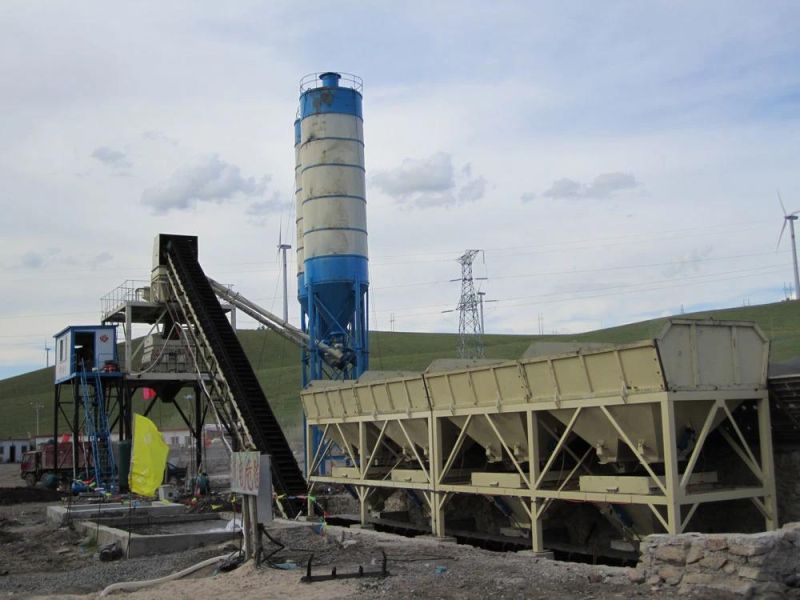

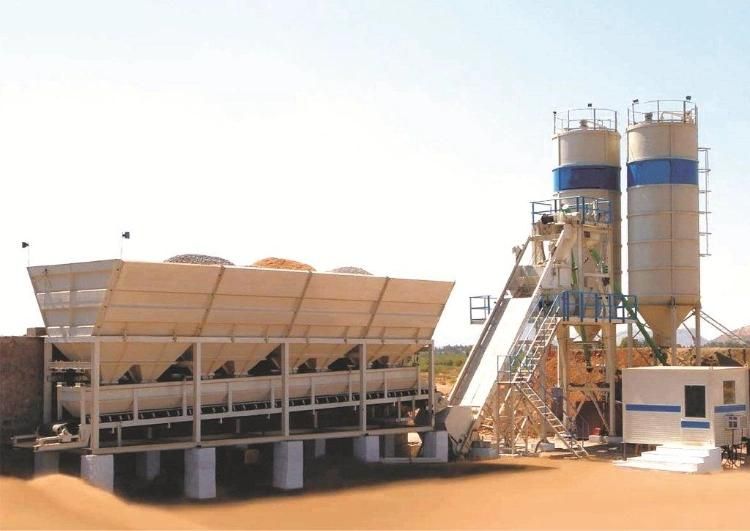

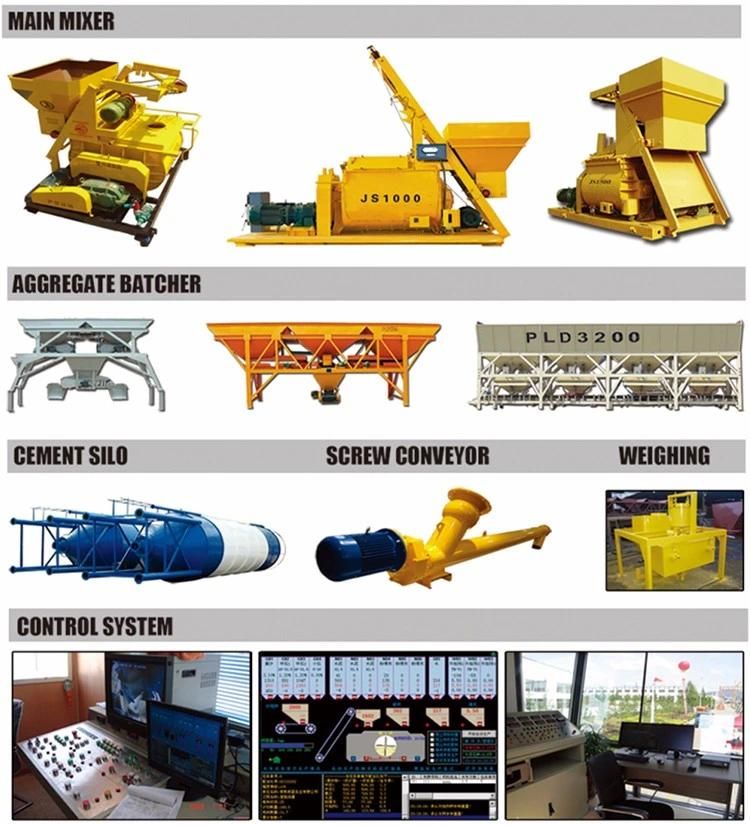

Mobile batching plant(Standard model)The basic structure of concrete batching plant is feeding system, measuring system, mixing system, electrcal system and
auxiliary equipment(such as air compressor, water pump, etc).They are used to trasport, feed,store, batch, weigh, mix and
discharge the concrete raw materials: cement, water, sand, crushed stone, admixture and additive.
Features of Concrete Batching Plant
1. Great production performance.
2. High quality and precise concrete production.
3. Different layout options according to customer requirements.
4. Possibility of different kinds of concrete production with different type of mixers.
6. Easy maintenance and low operating cost
6.Get ISO Certification
concrete batching plant specification| Model | YHZS35 | YHZS50 | YHZS75 | YHZS90 |
| Capacity (m3/h) | 35 | 50 | 75 | 90 |
| Mixer | JS750 | JS1000 | JS1500 | JS2000 |
| Batch machine | 4*5 m3 | 4*6 m3 | 4*6 m3 | 4*8 m3 |
| Max. Aggr. Size (mm) | ≤ 80 | ≤ 80 | ≤ 80 | ≤ 80 |
| Aggr. scale | (0-1500)kg, ±2% | (0-2400)kg, ±2% | (0-3600)kg, ±2% | (0-4800)kg, ±2% |
| Water scale | (0-200)kg, ±1% | (0-250)kg, ±1% | (0-400)kg, ±1% | (0-500)kg, ±1% |
| Cement scale | (0-400)kg, ±1% | (0-500)kg, ±1% | (0-900)kg, ±1% | (0-1200)kg, ±1% |
| Additive scale | (0-30)kg, ±1% | (0-30)kg, ±1% | (0-30)kg, ±1% | (0-30)kg, ±1% |
| Total power (kW) | 60 | 80 | 100 | 115 |
| Discharging height (m) | 3.8 | 3.8 | 3.8 | 3.8 |
| Cement silo (optional) | 100T | 100T | 100T | 100T |
| Screw conveyor | 219mm*9 | 219mm*9 | 219mm*9 | 219mm*9 |
| Manual cement loading bucket | 2.5m3 | 2.5m3 | 2.5m3 | 2.5m3 |
| Screw conveyor | 219mm*12m | 219mm*12m | 219mm*12m | 219mm*12m |
Specifications Mobile batching plant
(Simple model)
| Model | YHZD25 | YHZD35 | YHZS50 | YHZS75 |
| Capacity (m3/h) | 25 | 25 | 50 | 75 |
| Mixer | JD500 | JD750 | JSJ1000 | JSJ1500 |
| Power (kW) | 1x18.5 | 1x30 | 2x18.5 | 2x30 |
| Output (m3) | 0.5 | 0.75 | 1 | 1.5 |
| Max. aggr. size (mm) | <=60 | <=60 | <=60 | <=80 |
| Hopper | 4*4m3 | 4*4m3 | 4*6m3 | 4*6m3 |
| Agg. Scale | (0-1000)kg ±2% | (0-1500)kg ±2% | (0-2000)kg ±2% | (0-3000)kg ±2% |
| Cement (kg) | (0-300)kg, ±1% | (0-500)kg, ±1% | (0-600)kg, ±1% | (0-800)kg, ±1% |
| Water (kg) | (0-200)kg, ±1% | (0-300)kg, ±1% | (0-300)kg, ±1% | (0-400)kg, ±1% |
| Admixture (kg) | (0-20)kg, ±1% | (0-20)kg, ±1% | (0-20)kg, ±1% | (0-20)kg, ±1% |
| Max. towing speed(km/h) | 15 | 15 | 15 | 15 |
| Tread (outside)(mm) | 2800 | 3200 | 3400 | 3400 |
| Turning radius(mm) | 11 | 15 | 15 | 15 |
| Total weight(kg) | 20000 | 25000 | 15000 | 32000 |
| Power(kW) | 35 | 48 | 65 | 90 |
| Discharge Height (m) | 2.8 | 2.8 | 2.8 | 2.8 |

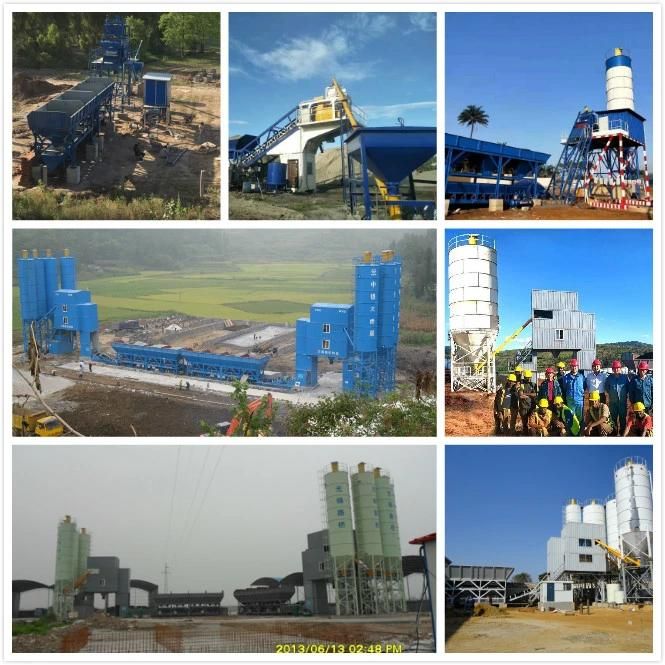

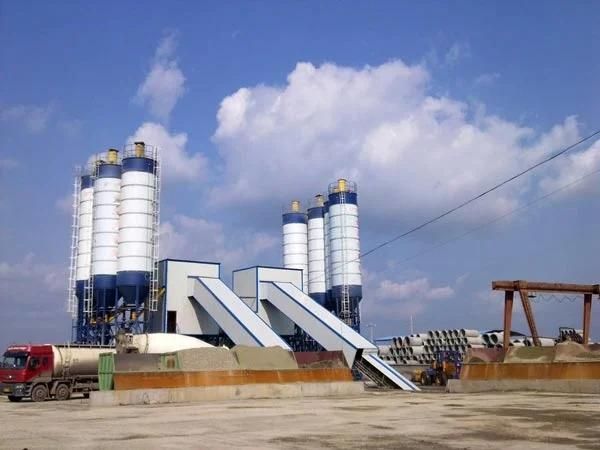

Our Cases
