• Model NO.：JBTS40-13-85R
• Certification：ISO9001: 2000
• Condition：New
• Color：Yellow, Orange
• Weight：5300kg
• Concrete Slump：120-230mm
• Max Concrete Outlet Pressure：13MPa
• Distribution Valve：S Valve
• Main Motor：85kw
• Speed：2300r,Min
• Capacity of Oll Tank：400L
• Max Theortical Concrete Output Capacity：40m3,H
• Overal Dimensions：4700*2300*2800mm
• Supports Model：The Fixed Support Leg
• Transport Package：Nude
• Specification：4700*2300*2800mm
• Trademark：Raytone Machinery
• Origin：Shandong, China(Mainland)
• HS Code：8413400000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. JBTS40-13-85R Certification ISO9001: 2000 Condition New Color Yellow, Orange Weight 5300kg Concrete Slump 120-230mm Max Concrete Outlet Pressure 13MPa Distribution Valve S Valve Main Motor 85kw Speed 2300r/Min Capacity of Oll Tank 400L Max Theortical Concrete Output Capacity 40m3/H Overal Dimensions 4700*2300*2800mm Supports Model The Fixed Support Leg Transport Package Nude Specification 4700*2300*2800mm Trademark Raytone Machinery Origin Shandong, China(Mainland) HS Code 8413400000 Production Capacity 50 Sets Per Month

Product Description

Movable Mobile Trailer Diesel Concrete Pump With Mixer


Brief Introduction:
the diesel movable concrete pump has been widely used in water conservancy, electricity, railway, highway, tunnel, mine, national defense, etc. the capacity covers from 15m3 to 90 m3 per hour,  vertical distance can reach up to 70 meters high, horizontal distance can ga as far as 250 meters

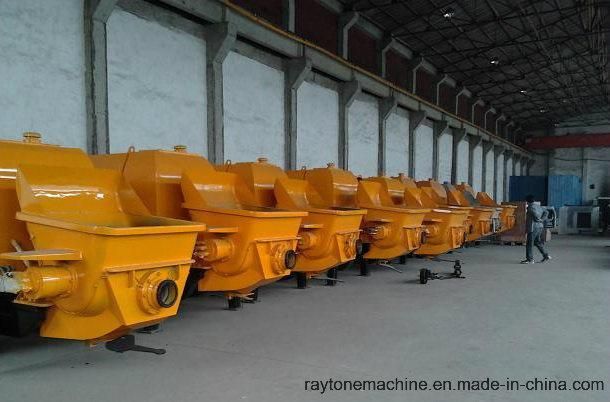

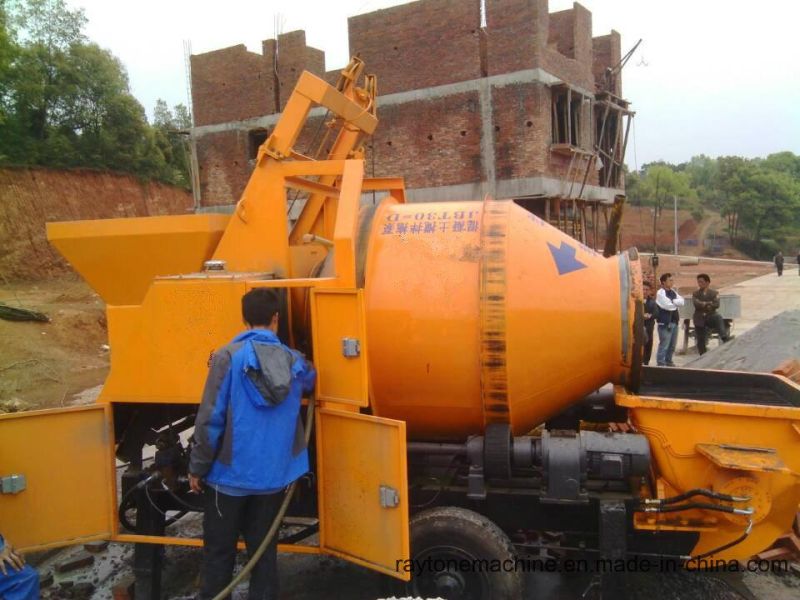

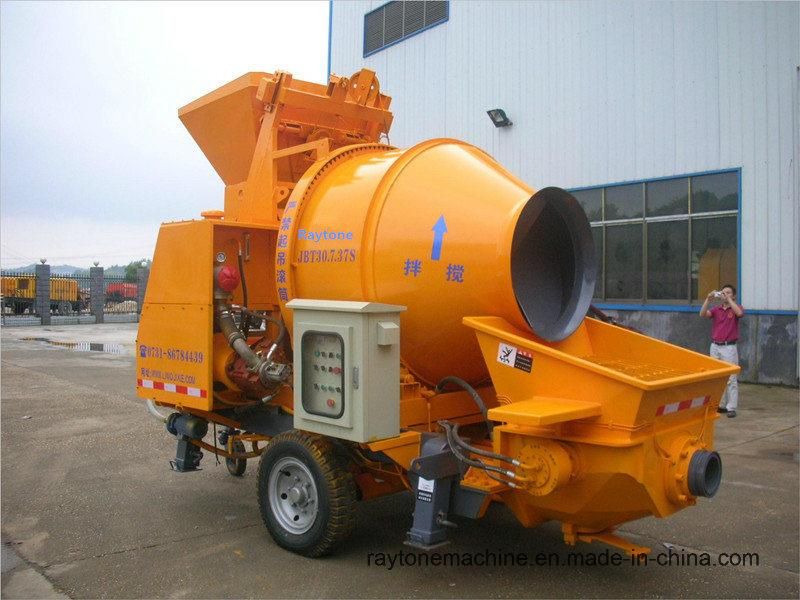

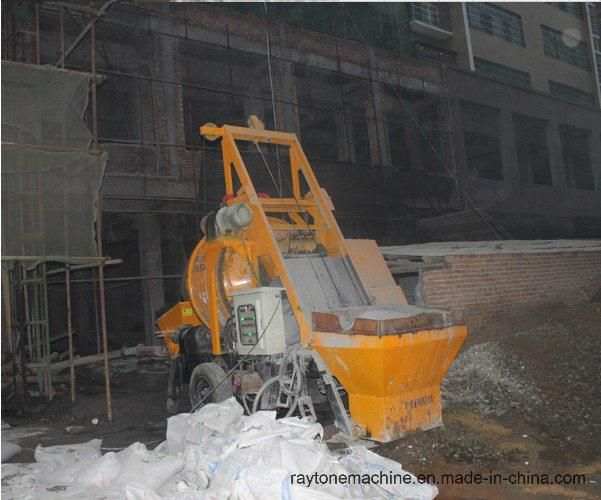

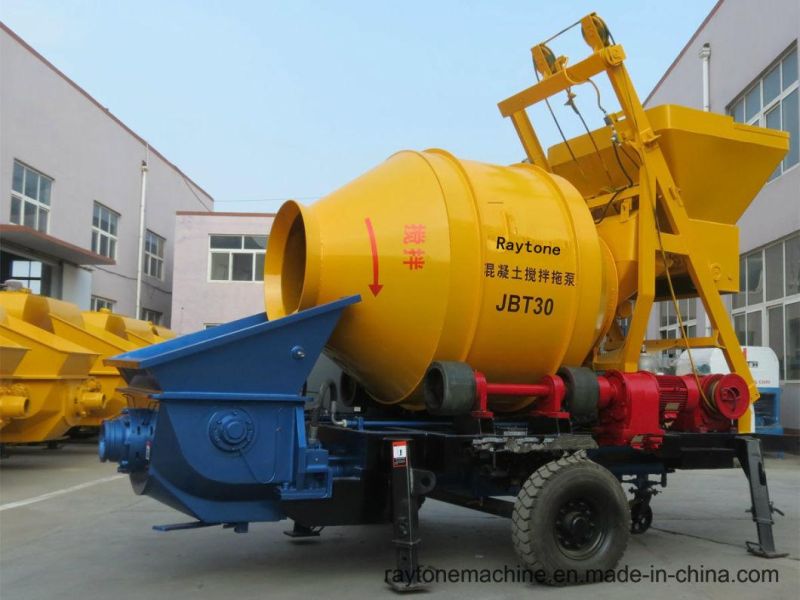

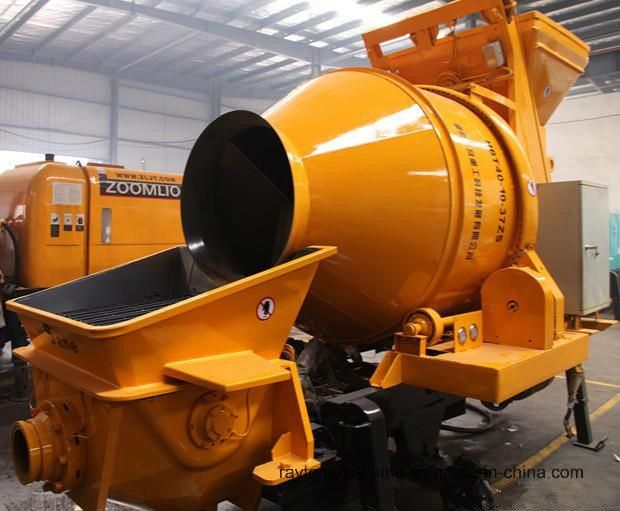

Detailed Pictures:





Main technical Parameter:

NO.	Item	Unit	Drum mixer pump
1	Max Theoretical Concrete Output Capacity	m³/h	40
2	Max Concrete outlet pressure	Mpa	13
3	Concrete slump	mm	120-230
4	Aggregate Size	mm	breakstone≤40
5	Main pump		South Korea Kwasaki112
6	Distribution valve		S valve
7	Hydraulic valve		Beijing Huade
8	Main motor	KW	Yuchai85
9	Mixer model		JVC450
10	Power of mixing motor	KW
11	Mixer winch motor	KW
12	Mixer water motor	KW
13	Speed	r/min	2300
14	Concrete cylinder diameter/stroke	mm	φ180/1000
15	Pumping oil cyliner diameter/stroke	mm	φ100/1000
16	High/low pressure switch		NO
17	Capacity of oil tank	L	400
18	Hopper capacity	m³	0.6
19	Feeding height	mm	1100
20	The theoretical maximum  delivery distance vertical/horizontal	m	70/150
21	Washing way of pipeline		Washing
22	Overall dimensions(L*W*H)	m	4700*2300*2800
23	Total weight	Kg	5000
24	Chassis model		Trail
25	Support model		The fixed support leg
26	Hydraulic oil cooling model		The air cooling radiator
