Jbt15 Concrete Pump with Mixer

Linyi Raytone Machinery Imp&Exp Co., Ltd.
  • Type：Concrete Pump
  • Shotcrete Type：Wet
  • Machining Process：Hydraulic
  • Structure：Spiral Type
  • Productivity：35m²,h
  • Feeding Height：1380mm

Base Info

  • Model NO.：JBT15
  • Certification：ISO9001: 2000, CE
  • Condition：New
  • Color：Orange
  • Dimension：6800*2200*3150mm
  • Weight：8000kg
  • Mixing Time：15s
  • Drum Rotary Speed：15r,M
  • Diameter of Drum：1440mm
  • Capacity of Discharge Hopper：800L
  • Capacity of Charge Hopper：650L
  • Mixing Output：15m3,H
  • Pumping Output：30m3,H
  • Warranty：One Year
  • Transport Package：Suitable for Sea Transportation
  • Specification：6800*2200*3150mm
  • Trademark：Raytone Machinery
  • Origin：Shandong, China(Mainland)
  • HS Code：84743100
  • Production Capacity：50 Sets Per Month

Description

oncrete mixer pump itemsModel        JBT15Mixing  outputm3/h15Pumping outputm3/h30Max pressure on concreteMpa8The type of distribution valve S tube valveDelivery cylindermm200Oil tank capacityL170Outlet opening diametermm180Inner dia of delivery pipemm125PowerKW30+8+0.55+5.5=44.05Max diameter of aggregatesmm40Maximum delivery horizontal distancem200Maximum delivery Vertical distancem70Capacity of charge hopperL650Capacity of discharge hopperL800Diameter of drummm1440Drum rotary speedr/m15Mixing times15Dimensionmm6800*2200*3150Weightkg8000Quantity in 20ft containerset1
Detailed Pictures:

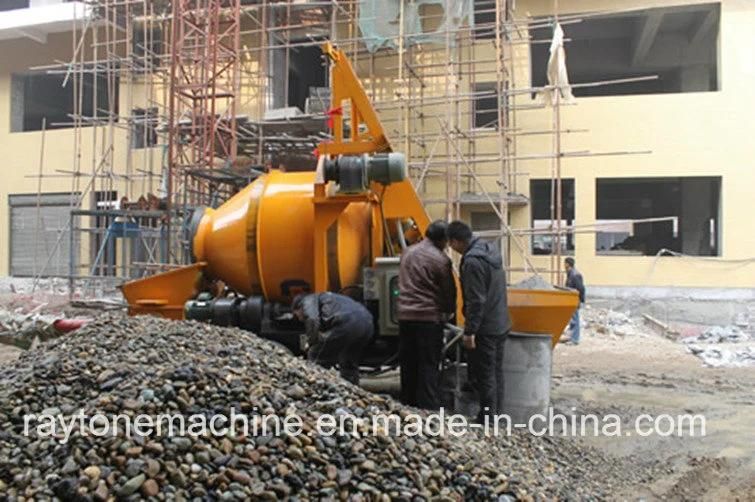

Jbt15 Concrete Pump with Mixer

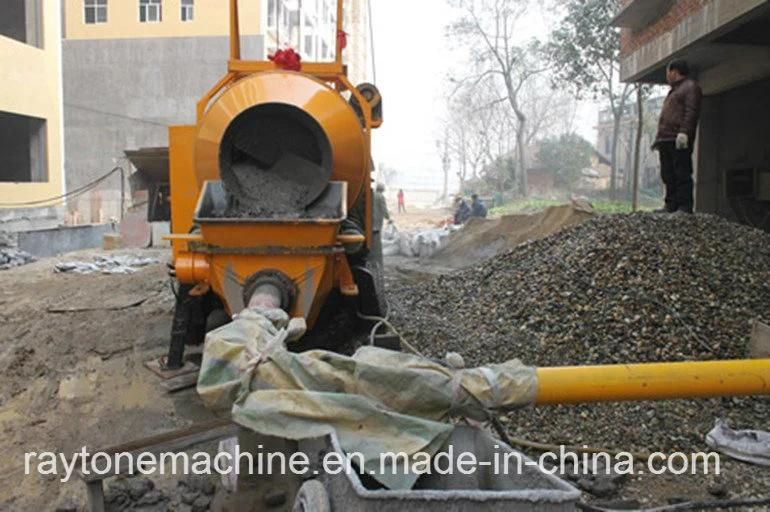

Jbt15 Concrete Pump with Mixer

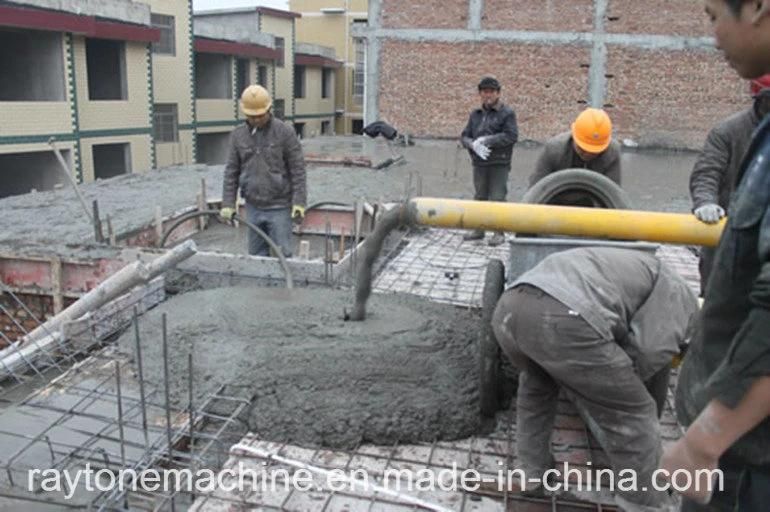

Jbt15 Concrete Pump with Mixer

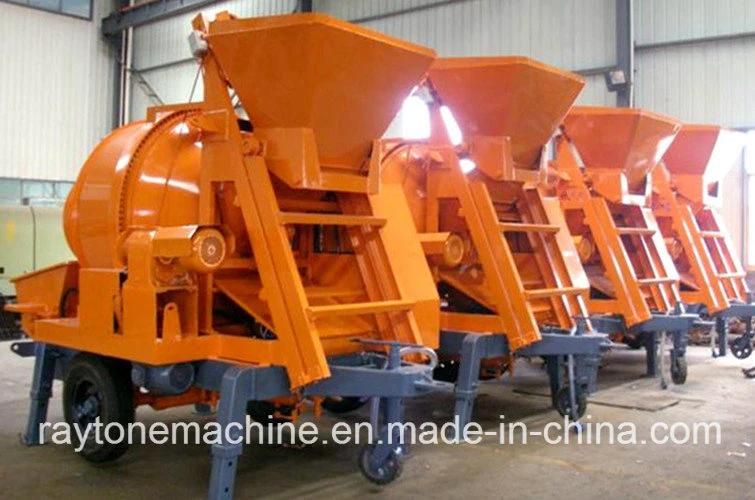

Jbt15 Concrete Pump with Mixer

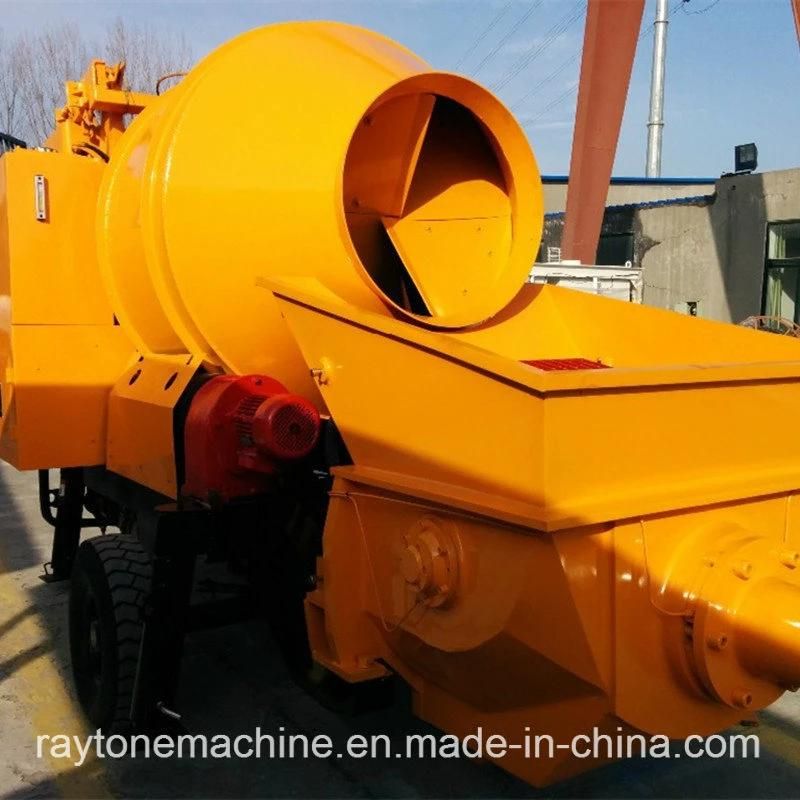

Jbt15 Concrete Pump with Mixer
