Jbt30 Concrete Pump with Mixer

Linyi Raytone Machinery Imp&Exp Co., Ltd.
  • Type：Concrete Pump
  • Shotcrete Type：Wet
  • Machining Process：Vacuum
  • Structure：Spiral Type
  • Productivity：35m²,h
  • Feeding Height：1100mm

Base Info

  • Model NO.：JBT30
  • Vibrating Amplitude：1.0mm
  • Certification：ISO9001: 2000, CE
  • Condition：New
  • Color：Orange
  • Dimension：4960*2100*2500mm
  • Weight：4500kg
  • Power：30kw
  • Rated Speed：1480rpm
  • Delivery Pressure：6MPa
  • Oil Tank Capacity：170L
  • Motor Rated Voltage：380V
  • Pumping Vertical Reach：50m
  • Pumping Horizontal Reach：200m
  • Warranty：One Year
  • Transport Package：Suitable for Sea Transportation
  • Specification：4960*2100*2500mm
  • Trademark：Raytone machinery
  • Origin：Shandong, China(Mainland)
  • HS Code：8413400000
  • Production Capacity：50 Set Per Month

Description

ParametersUnitJBT30-DMax. Theoretical Pumping Outputm³/h30Max. Theoretical Mixing Outputm³/h15Type of Distribution Valve/S Valve Powerkw30(Motor)Rated SpeedRpm1480Delivery PressureMpa6Hydraulic System Type/Open Oil Tank CapacityL170Concrete Cylinder Size × StrokemmΦ180×1000Hopper Capacity × Filling HeightL×mm600×1050Motor Rated Voltagev380Mixing Motor Powerkw4X2Concrete Outlet Diameter mmΦ180Max. Aggregate SizemmPebble:40  Crushed Stone:30Total Weightkg4500Machine Size(LxWxH)mm4960×2100×2500Pumping Vertical Reachm50Pumping Horizontal Reachm200
Detailed Pictures:

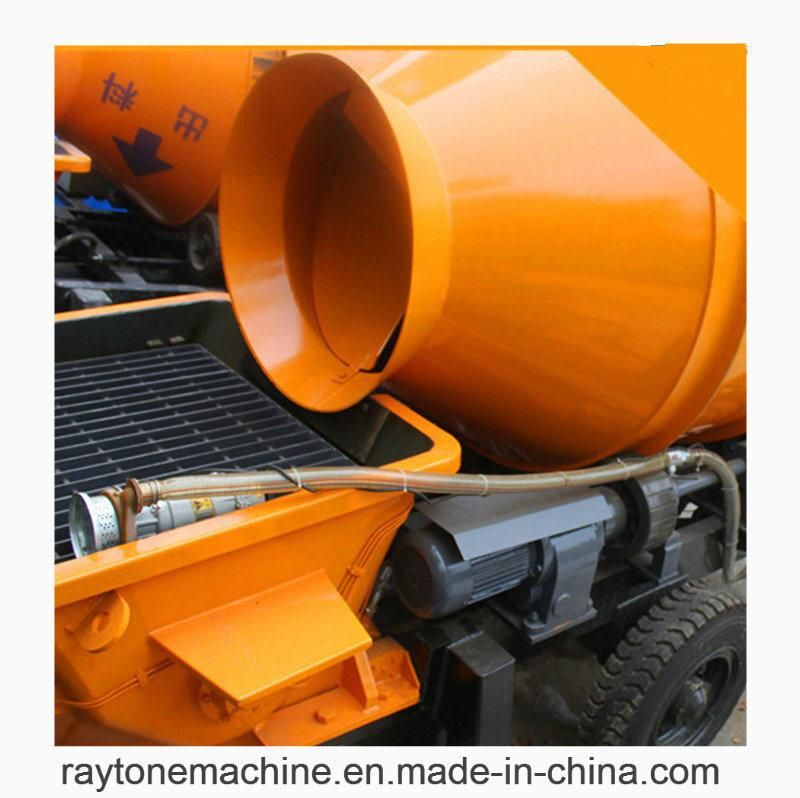

Jbt30 Concrete Pump with Mixer

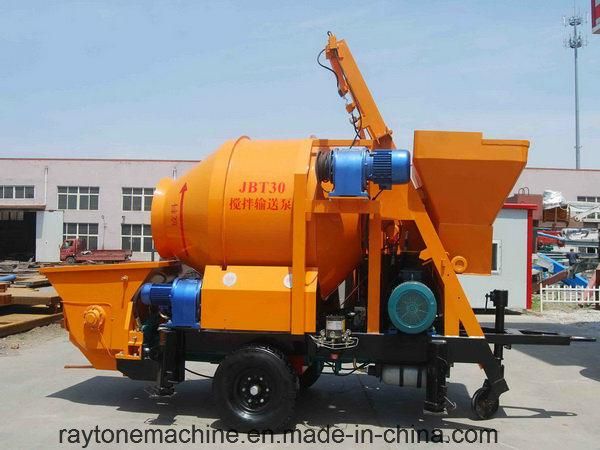

Jbt30 Concrete Pump with Mixer

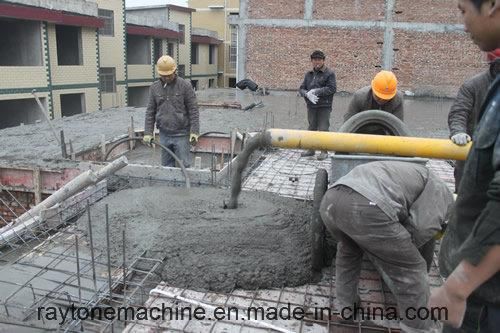

Jbt30 Concrete Pump with Mixer

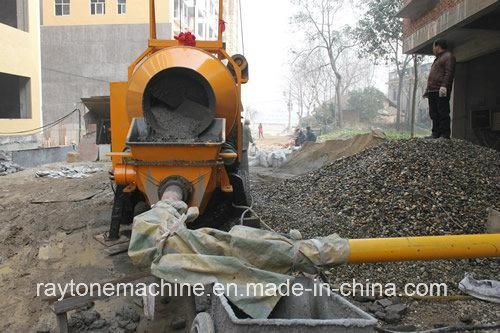

Jbt30 Concrete Pump with Mixer

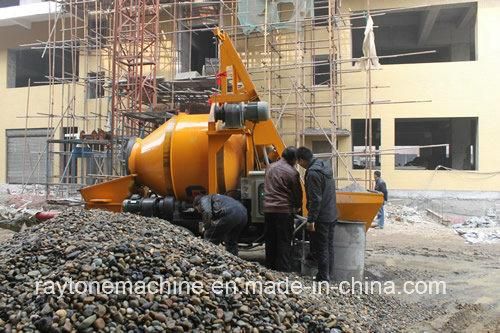

Jbt30 Concrete Pump with Mixer
