• Model NO.：JZM750
• Condition：New
• Color：Orange
• Dimension：5650*2065*3535mm
• Weight：4000kg
• Pump Motor：0.75kw
• Lifting Motor：7.5kw
• Mixing Motor：11kw
• Rotating Speed：12.26r,Min
• Aggregate Size：≤80mm
• Charging Volume：1200L
• Discharge Volume：750L
• Warranty：One Year
• Transport Package：Suitable for Sea Transportation
• Specification：5650x2065x3535 mm
• Trademark：Raytone Machinery
• Origin：Shandong, China(Mainland)
• HS Code：847310000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. JZM750 Condition New Color Orange Dimension 5650*2065*3535mm Weight 4000kg Pump Motor 0.75kw Lifting Motor 7.5kw Mixing Motor 11kw Rotating Speed 12.26r/Min Aggregate Size ≤80mm Charging Volume 1200L Discharge Volume 750L Warranty One Year Transport Package Suitable for Sea Transportation Specification 5650x2065x3535 mm Trademark Raytone Machinery Origin Shandong, China(Mainland) HS Code 847310000 Production Capacity 50 Sets Per Month

Product Description

JZM750 Drum Concrete Mixer Brief Introduction:

JZM series mixer is a gravity type of double-conic reversing drum concrete mixer, the drum transit by gear or friction wheel, the drum rotates clockwise during mixing and anti-clockwise during discharging. It is portable and movable. The mixer can mix plasticity and damp half-dry concrete. These mixer services for ordinary construction site, roads, bridge projects and precast plant.
This mixer is a self-falling and movable concrete mixing machine, discharging with the double wimble rotating reversely. It could be used for mixing plastic and damp-dry rigid concrete. The mixing drum mixes the material by rotating positively, and discharges by rotating reversely. It is adaptable for architectural building site, civil engineer, and bridge project, small and medium concrete plant. You can dig a hole for fixed mix; it can make the hopper orifice level with the ground. By this way, feeding will be more convenient.
This machine is an advanced type of mixing machine. It is original in structure with a light weight and beautiful appearance. It can be operated and maintained easily and have a high productivity and good-quality mixing.
Main Technical Parameters:

Model:	JZM750
Discharge volume:	750L
Charging volume:	1200L
Capacity:	30~35 m3/h
Aggregate sizes:	≤80mm
Rotating speed:	12.26 r/min
Mixing motor:	11kw
Lifting motor:	7.5kw
Pump motor:	0.75kw
Weight:	4000kg
Dimensions :	5650x2065x3535 mm

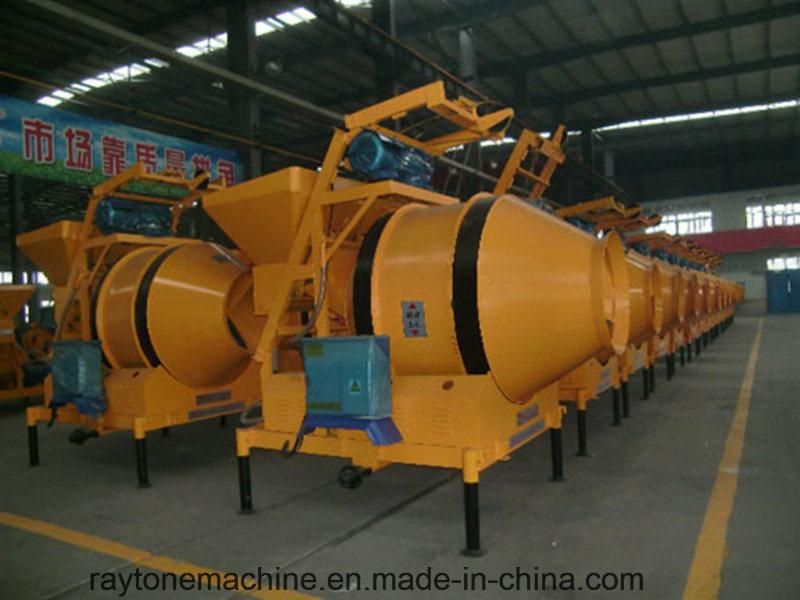

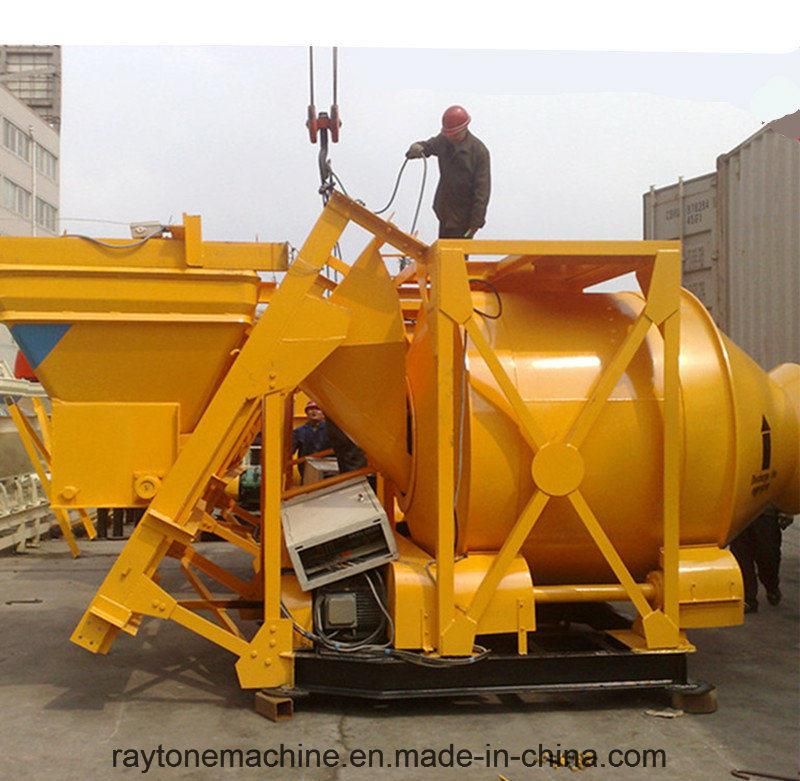

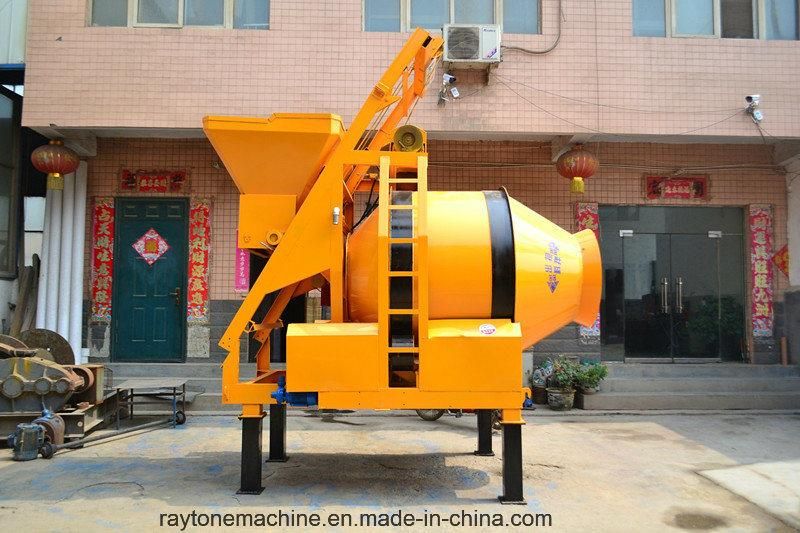

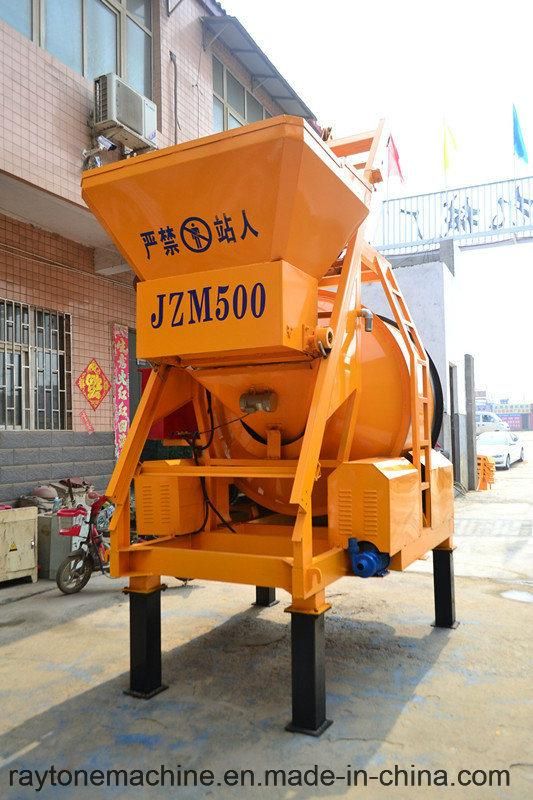

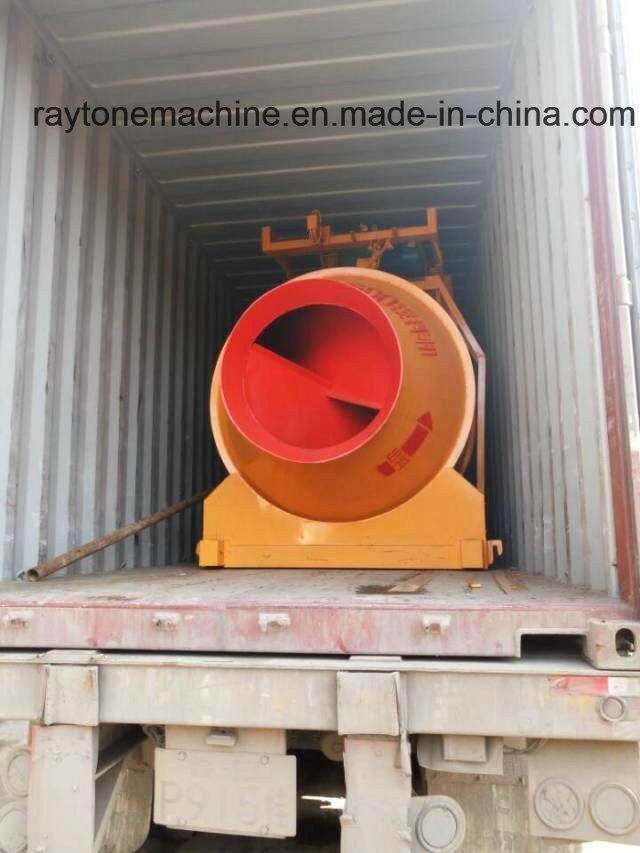

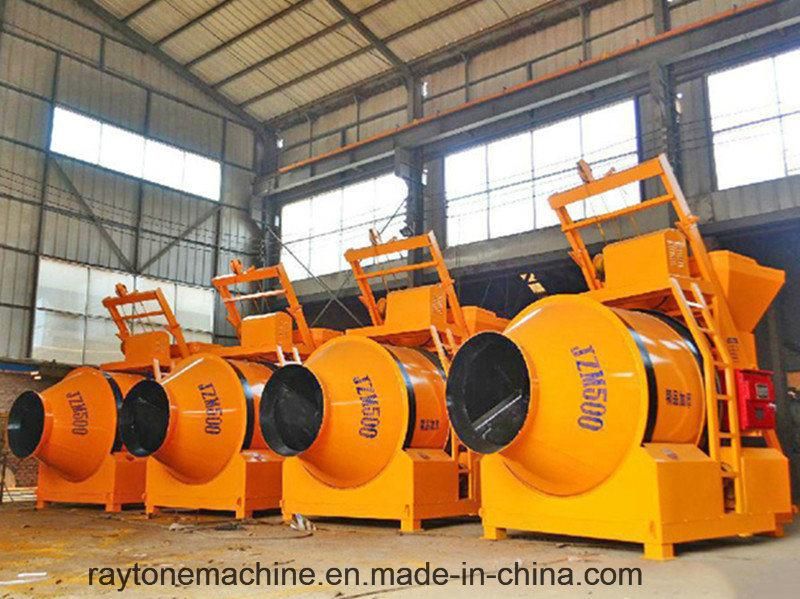

Detailed Pictures:
