• Model NO.：JZC350
• Condition：New
• Color：Yellow
• Dimension：2766*2140*3000mm
• Weight：1950kg
• Pump Motor：0.55kw
• Lifting Motor：4.5kw
• Mixing Motor：5.5kw
• Rotating Speed：14r,Min
• Capacity：10-14m3,H
• Charging Volume：560L
• Discharge Volume：350L
• Warranty：One Year
• Transport Package：Suitable for Sea Transportation
• Specification：2766x2140x3000 mm
• Trademark：Raytone Machinery
• Origin：Shandong, China(Mainland)
• HS Code：84743100
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. JZC350 Condition New Color Yellow Dimension 2766*2140*3000mm Weight 1950kg Pump Motor 0.55kw Lifting Motor 4.5kw Mixing Motor 5.5kw Rotating Speed 14r/Min Capacity 10-14m3/H Charging Volume 560L Discharge Volume 350L Warranty One Year Transport Package Suitable for Sea Transportation Specification 2766x2140x3000 mm Trademark Raytone Machinery Origin Shandong, China(Mainland) HS Code 84743100 Production Capacity 50 Sets Per Month

Product Description

JZC350 Concrete Mixer Brief Introduction:

JZC350 concrete mixer is a gravity type of double-conic reversing drum concrete mixer, the drum transit by gear or friction wheel, the drum rotates clockwise during mixing and anti-clockwise during discharging. It is portable and movable. The mixer can mix plasticity and damp half-dry concrete. These mixer services for ordinary construction site, roads, bridge projects and precast plant.
This mixer is a self-falling and movable concrete mixing machine, discharging with the double wimble rotating reversely. It could be used for mixing plastic and damp-dry rigid concrete. The mixing drum mixes the material by rotating positively, and discharges by rotating reversely. It is adaptable for architectural building site, civil engineer, and bridge project, small and medium concrete plant. You can dig a hole for fixed mix; it can make the hopper orifice level with the ground. By this way, feeding will be more convenient.
This machine is an advanced type of mixing machine. It is original in structure with a light weight and beautiful appearance. It can be operated and maintained easily and have a high productivity and good-quality mixing.

Main Technical Parameters:

Model:	JZC350
Discharge volume:	350L
Charging volume:	560L
Capacity:	10~14 m3/h
Aggregate sizes:	≤60mm
Rotating speed:	14 r/min
Max. drag speed:	20km/h
Mixing motor:	5.5kw
Lifting motor:	4.5KW
Pump motor:	0.55kw
Weight:	1950kg
Dimensions:	2766x2140x3000 mm

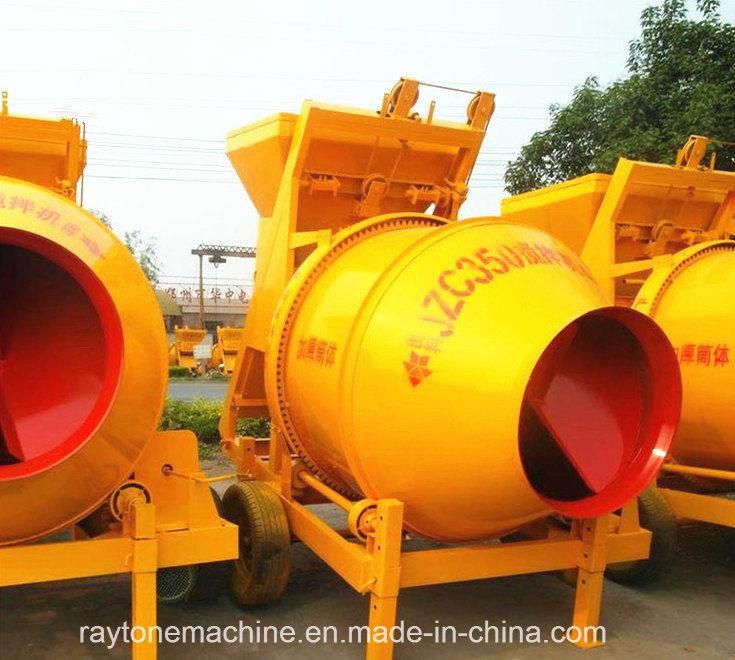

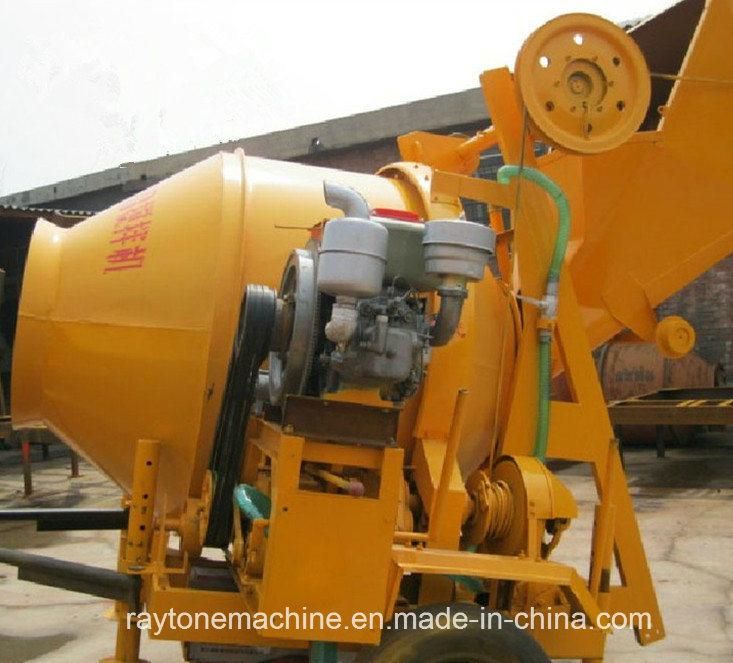

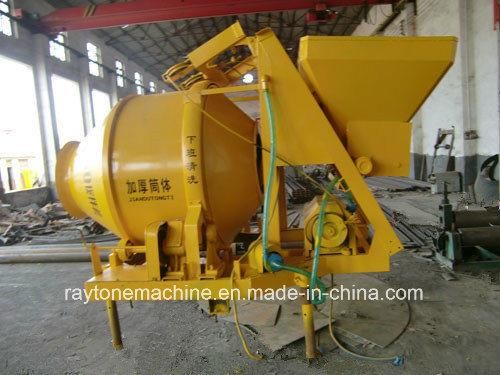

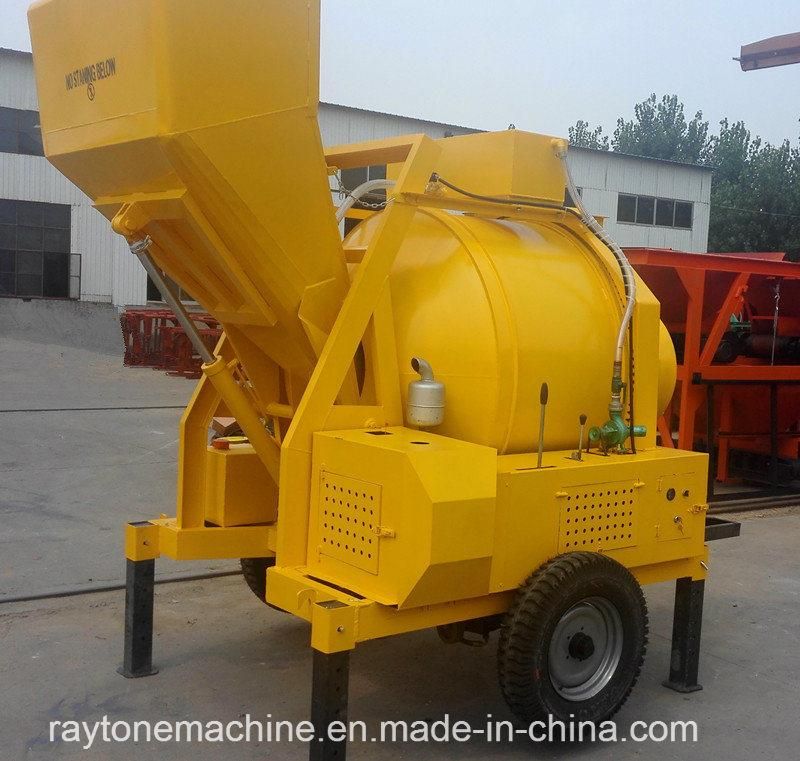

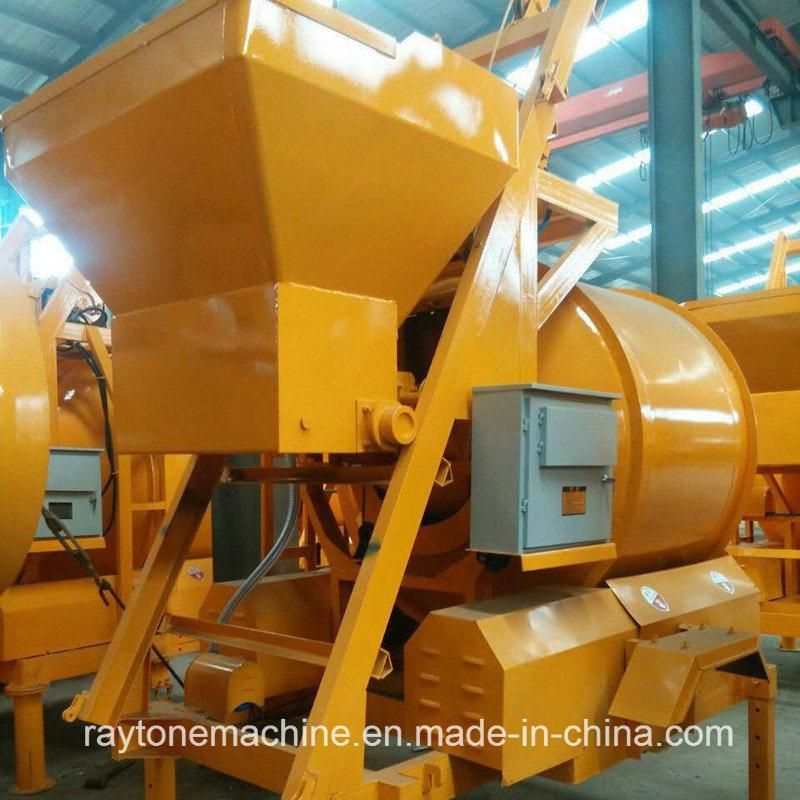

Detailed Pictures:
