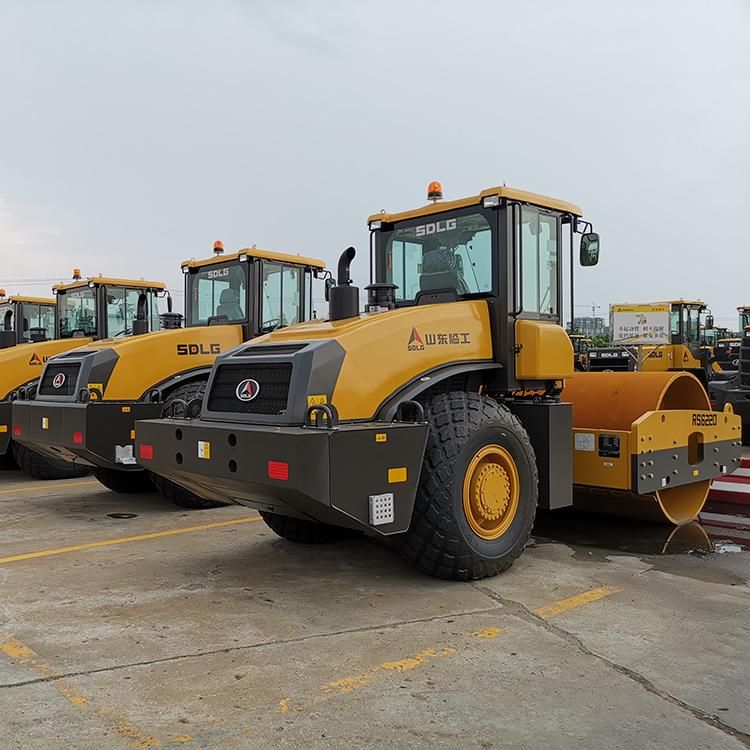

• Model NO.：RS8220
• Automatic Grade：Automatic
• Product Capacity：>400t,h
• Certification：ISO9001: 2000, CE
• Condition：New
• Front Wheel Distri 18000kgbuted Weight：11000kg
• Rate Power：140kw
• Operating Weight：22000kg
• Grade Ability：30
• Static Linear Load：511n,Cm
• Clutch Type：Dry Single-Plate Clutch
• Rated Speed：2200rpm
• Usage：Construction Sites
• Keywords：Road Construction Euipments
• Parking Brake：Mechanical
• Rolling Width：2150mm
• Transmission Type：Fixed Shaft Power Shift
• Gears：Forward 3 Reverse 3
• Steering Angle (Grad)：+-36
• Transport Package：Nude
• Specification：6370*2360*3185mm
• Trademark：SDXG
• Origin：China
• HS Code：8429401900
• Production Capacity：5000

Overall dimension L*W*H6370*2360*3185mmWidth of vibratory drum2150mm Diameter of vibratory drum1575mm Wheelbase3441mm Min. ground clearance407mmMin turning radius6600mmCompaction width2150mm Theoretical gradeability30%Swing angle12°Turning angle35°Overall parameters Operating weight22000kgFront wheel distributed weight11000kg Rear wheel distributed weight11000KgNominal amplitude2.0/1.0mmFrequency28/35HzExcitation force(high/low)390/300kNStatic linear load511N/cmEngine ModelWP6G190E20Type Four-stroke, Inline, water-cooled, direct injectionRated Power@Revolution Speed 140kWDisplacement 6750mL Cylinder bore × stroke 105*130mm Emission standard Tier2Rated fuel consumption 215g/kW.hMax. torque 800N.m Transmission systemClutch typeDry single-plate clutchTransmission typeFixed shaft power shiftGearsForward 3 reverse 3Speed at forward/reverse gear I0-2.5km/hSpeed at forward/reverse gear II0-4.9km/hSpeed at forward gear III0-11.7km/hBrake system Service brake typeAir over hydraulic disc typeParking brake typeManual drum brakingSteering system Type Full hydraulic steering gearSystem pressure16MpaVibratory system Type closed systemSystem pressure35MpaFill capacity Fuel 270L Engine oil 16L Hydraulic oil 125L Detailed Images
