• Model NO.：SD8n
• Condition：New
• Color：Yellow
• Operation Weight,(Including Ripper) (Kg：37300
• Ground Pressure(Kpa)：94
• Track Gauge(mm)：2083
• Min. Ground Clearance (mm)：556
• Dozing Capacity (M³)：11.24
• Blade Width (mm)：3940
• Max. Digging Depth (mm)：582
• Transport Package：RO-RO,Bulk,Container
• Trademark：Hbxg
• Origin：China
• HS Code：8429119000
• Production Capacity：1000 Set Per Month

SPECIFICATIONOperation weight,(including ripper)  (Kg)     37300Ground pressure(KPa)     94Track gauge(mm)   2083Gradient 30°/25°Min. ground clearance (mm)      556Dozing capacity (m³)      11.24Blade width (mm)   3940Max. digging depth (mm)   582Overall dimensions (mm) (including ripper)      7604×3823×3402(with straight tilting blade)EngineTypeCUMMINS NTA855-C360S10 C6121ZLG10 (Licensed CAT 3306 diesel engine)Rated revolution (rpm) 2100Rated power (KW)     257Torque storage coefficient   20%Undercarriage systemTypeThe track is triangle shape. The sprocket is elevated elastic suspended.  Number of track rollers (each side)      8Pitch (mm) 216Width of shoe (mm)  560Gear  1st2nd3rdForward  (Km/h)0-3.50-6.20-10.8Backward (Km/h)0-4.70-8.10-13.9Implement hydraulic systemMax. system pressure (MPa)     20Control type   Pilot controlSystem output(L/min)  220Driving systemTorque converterTorque converter is power separating hydraulic-mechanic typeTransmissionPlanetary, power shift transmission, with three speeds forward and three Speeds reverse, speeds and Direction can be quickly shiftSteering clutchThe steering clutch is hydraulic
 pressed, non-constant engaged clutch.Steering braking clutch The braking clutch is pressed by spring, separated       hydraulic, constant meshed  type.Final driveThe final drive is two-stage planetary reduction gear     mechanism, splash lubrication.

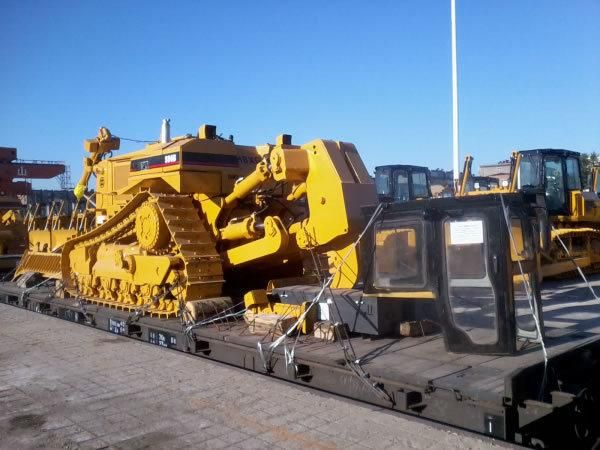

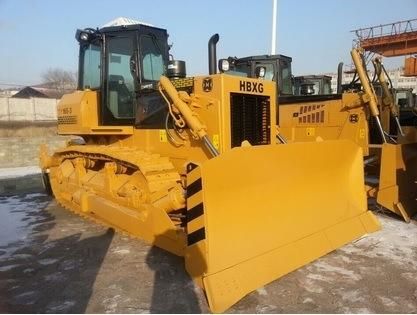

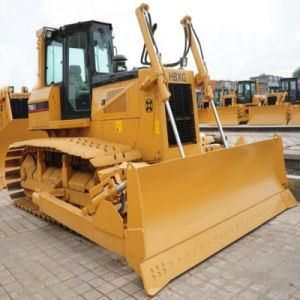

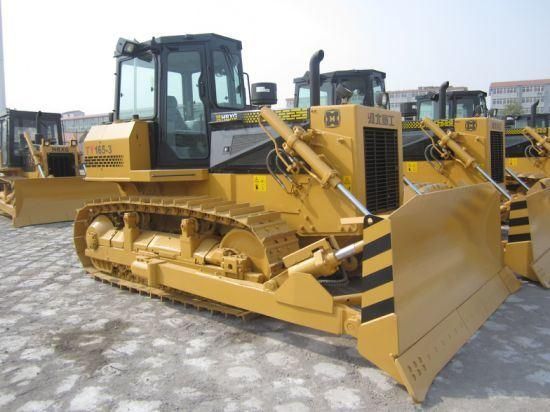

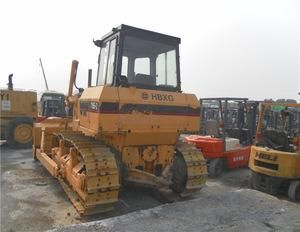

Product Show
