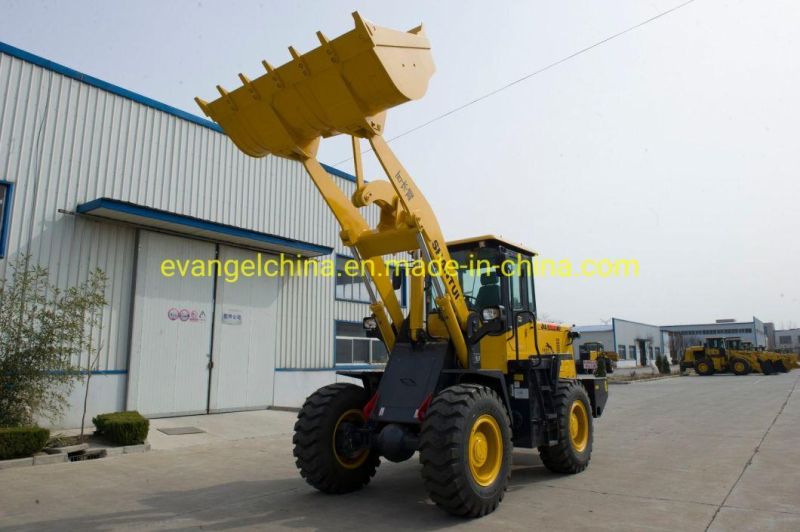

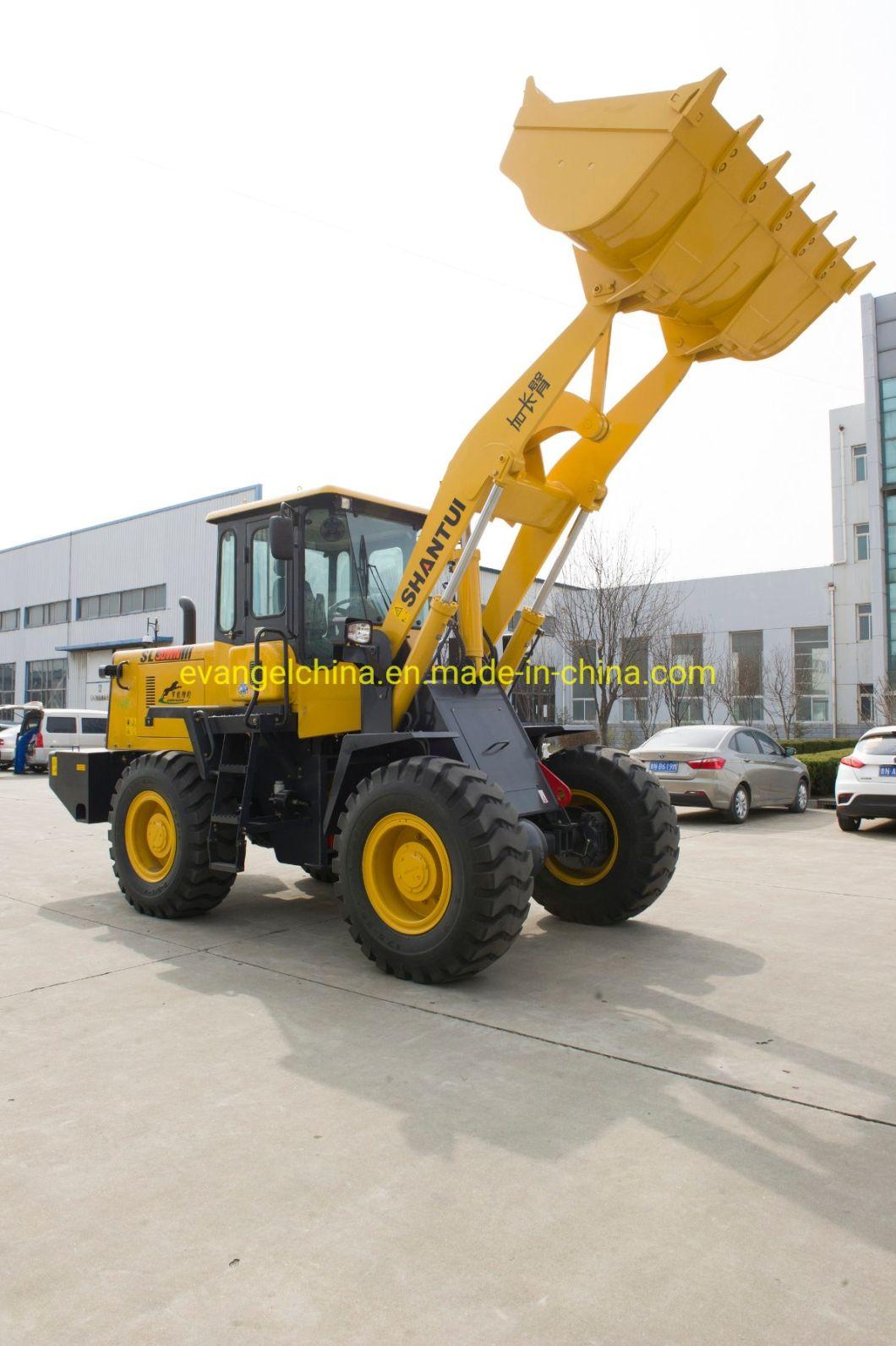

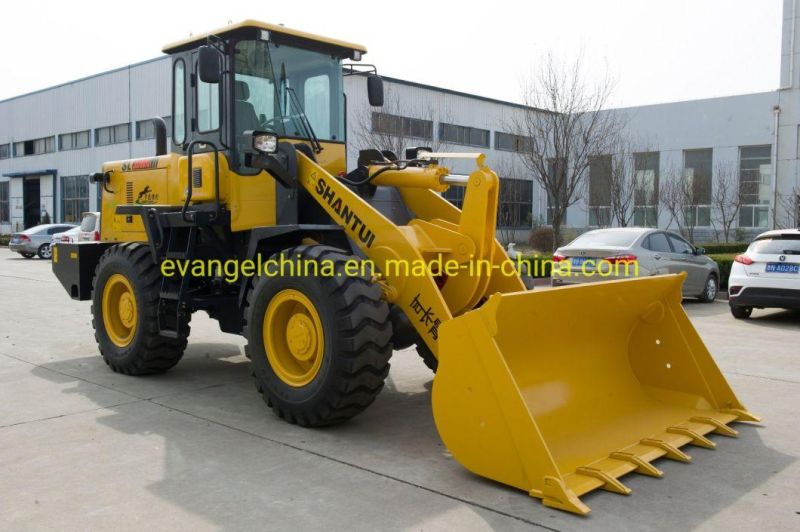

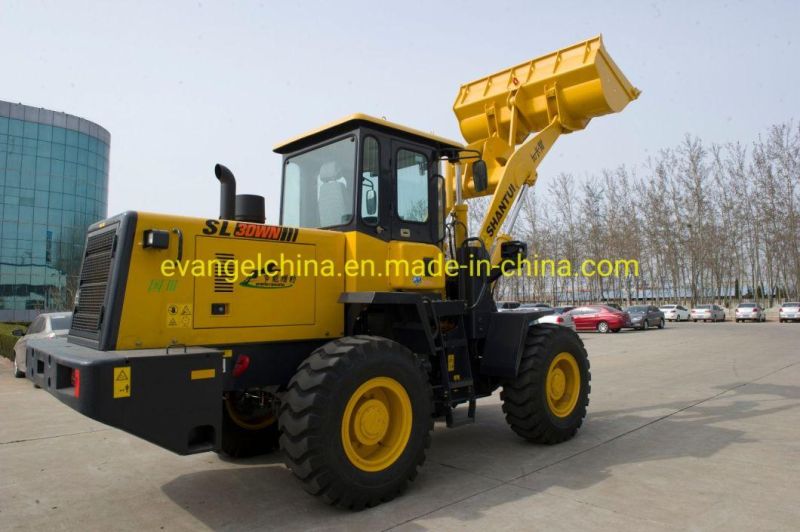

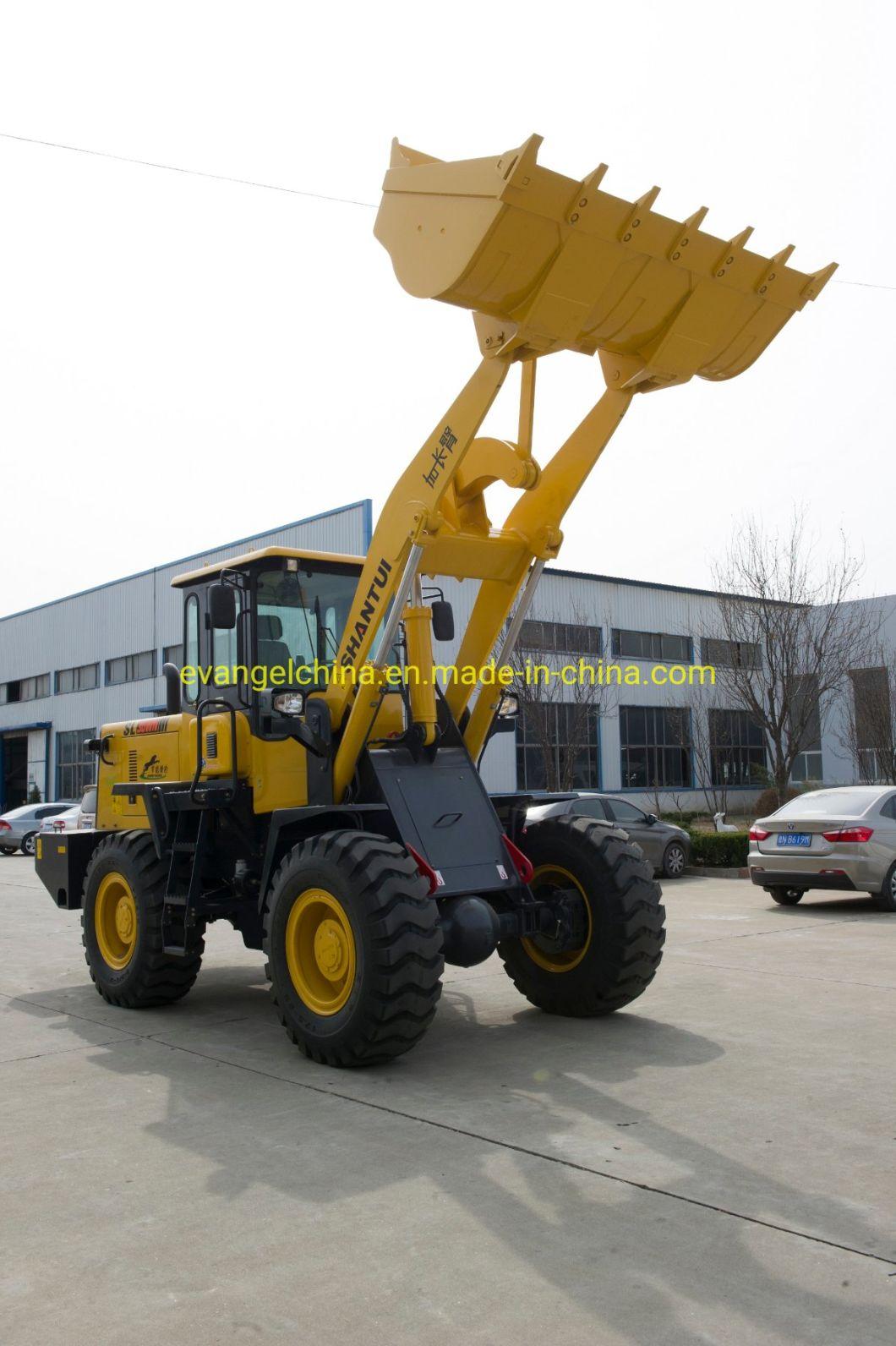

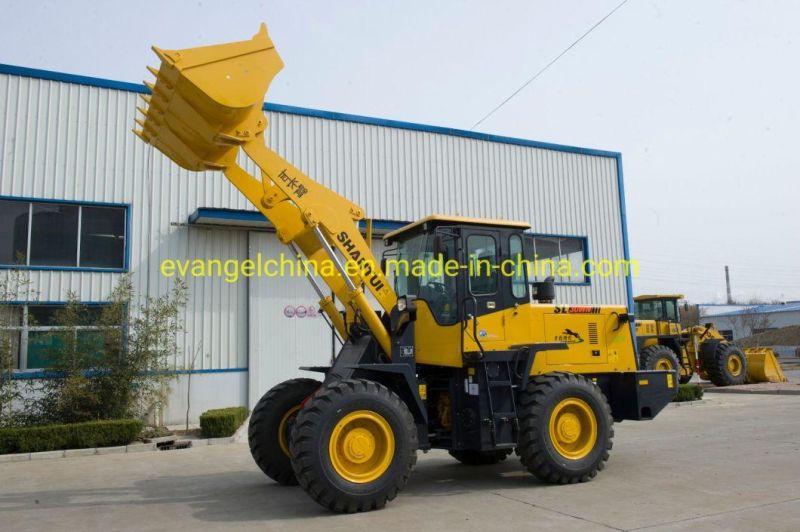

• Model NO.：SL30WN
• Type：Small Loader
• Color：Yellow
• Engine：Weichai Wp6g125e201
• Rated Power (Kw/Rpm)：92,2200
• Displacement (L)：6.75
• Maximum Torque (Nm)：500
• Operating Weight (Kg)：10300
• Center Distance of Tires (mm)：1856
• Wheel Base (mm)：2700
• Maximum Traction Force (Kn)：110
• Transport Package：Nude Packing
• Specification：7170*2484*3235mm
• Trademark：SHANTUI
• Origin：China
• Production Capacity：200units,Month

MODELSL30WNEngine Weichai WP6G125E201Rated power (kW/rpm) 92/2200Displacement (L) 6.75Minimum diesel consumption(g/kW•h)215Maximum torque (NM) 500Operating weight (kg) 10300Dimension LxWxH (mm) 7170*2484*3235Center distance of tires (mm) 1856Wheel base (mm)2700Loading capacity (t)3Bucket capacity (m3) 1.7Maximum traction force (KN) 110Maximum breakout force (KN) 105Static tipping load (full turn) (kg) 6000Gradeability (°) 30Minimum turning radius (mm)Outside of tire5100Outside of bucket5920Turning angle (°) 36Dumping height (mm)Standard Arm2875Extended3057Long3200Dumping reach (mm)Standard Arm955Extended906Long886Lifting/Lifting,dumping and lowering time (S) 5.1/9.0Travel speed (km/h)Forward 10-7Forward 20-12Forward 30-23Forward 40-37Reverse 10-8.3Reverse 20-28Reverse 3-Reverse 4-
