Professional Manufacturer Shantui Sg18-3 180HP with Quality Guarantee Motor Grader
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Onsite Installation, Video Technical Support
- Warranty：1 Year
- Certification：ISO, CE
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic
Base Info
- Model NO.：SG18-3
- Walking Mode：Wheeled
- Type：Medium-sized Grader
- Width of Shovel Blade：3660,3965mm
- Transport Package：Roro,Container,Bulk
- Specification：15600KG
- Trademark：Sinomada
- Origin：China
- HS Code：8705109100
- Production Capacity：500units,Month
Description
Product DescriptionProduct name SG18-3 Performance parameters Operating weight of machine (kg) 15900 Wheelbase (mm) 6260 Wheel tread (mm) 2155 Minimum ground clearance (mm) 430 Steering angle of front wheels (°) ±45 Articulated steering angle (°) ±25 Maximum traction force (kN) 83.5(f=0.75) Turning radius (mm) 7,800 (Outer side of front wheel) Maximum gradeability (°) 20 Width of shovel blade (mm) 3660/3965 Height of shovel blade (mm) 635 Blade slewing angle (º) 360 Blade cutting angle (º) 37-83 Maximum digging depth of blade (mm) 500 Length (mm) 9015 Width (mm) 2600 Heigh (mm) 3400 Engine Engine model 6BTAA5.9-C180 Emission China-II Type Mechanical direct injection Rated power/rated speed (kw/rpm) 132kW/2200rpm

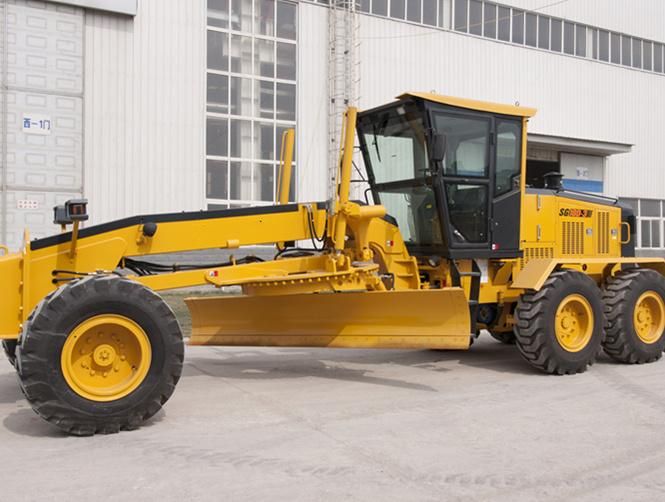

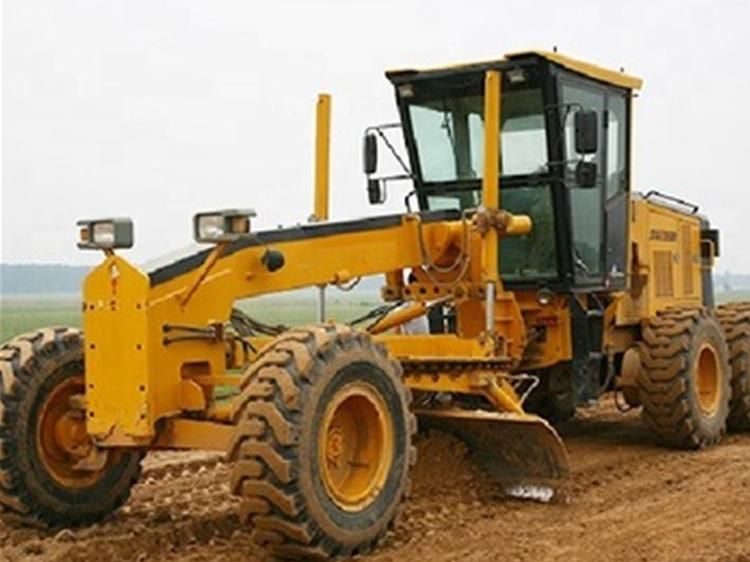

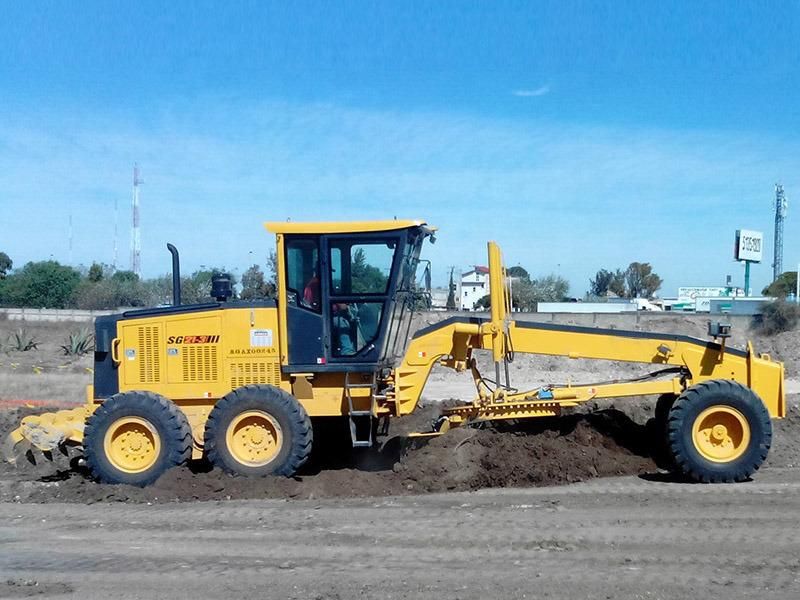

- Product Pictures
