China Factory Machine Sr23mr CE Shantui Hydraulic Trash Road Roller
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Available
- Warranty：2 Years
- Type：Road Roller
- Working Method：Vibration
- Axle：Uniaxial Monowheel
- Grinding Wheel Type：Tire Grind
Base Info
- Model NO.：SR23MR
- Compaction Depth：2170mm
- Engine Type：Diesel Engine
- Travel Speed：9km,H
- Centrifugal Force：435,315
- Certification：CE
- Condition：New
- Transport Package：Nude
- Specification：As below
- Trademark：Shantui
- Origin：Hunan
- HS Code：842940190
- Production Capacity：1000 Pieces,Month
Description
Basic Info.
Model NO. SR23MR Compaction Depth 2170mm Engine Type Diesel Engine Travel Speed 9km/H Centrifugal Force 435/315 Certification CE Condition New Transport Package Nude Specification As below Trademark Shantui Origin Hunan HS Code 842940190 Production Capacity 1000 Pieces/MonthProduct Description

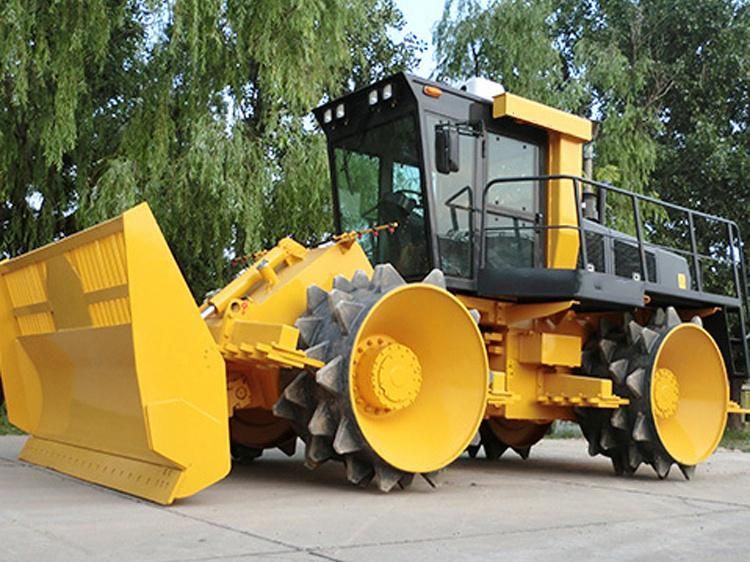

China Factory Machine SR23MR CE Shantui Hydraulic Trash Road Roller Operating costThe proprietary match technology and the optimal power curve can achieve high operating efficiency and reasonable fuel economy and reduce the composite fuel consumption by 5%~8%.
The core electric and hydraulic parts feature high reliability to reduce the malfunction downtime.
High value maintenance.
Working performanceThe installed Weichai China-III electronic control engine can maintain the machine under best working status with strong power to ensure the compacting quality and high efficiency and energy-saving.
The hydro-mechanically driven power drive system is professionally designed and precisely manufactured specially for severe waste treatment environment and provide higher productivity.
The high capacity blade can bulldoze the waste during the compacting to improve the operating efficiency.
The professionally designed compacting drum guarantees the effective compacting and crushing of the waste. The compacting teeth are made of corrosion-resistant and wear-resistant material to prolong the life of compacting drum.
| Parameter name | SR23MR (Standard version) |
| Performance parameters | |
| Operating weight (Kg) | 23000 |
| Exciting force (KN) | - |
| Vibration frequency (Hz) | - |
| Nominal amplitude (mm) | - |
| Ground pressure (KPa) | - |
| Gradeability (%) | - |
| Engine | |
| Engine model | WP10 |
| Rated power/rated speed (kW/rpm) | 162/2200 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 7360*3200*3640 |
| Driving performance | |
| Forward speed (km/h) | 4.37/6.82/10 |
| Reversing speed (km/h) | 4.37/6.82 |
| Chassis System | |
| Wheelbase (mm) | - |
| Tank capacity | |
| Fuel tank (L) | 400 |
| Working device | |
| Compacting width(mm) | 3090 |
