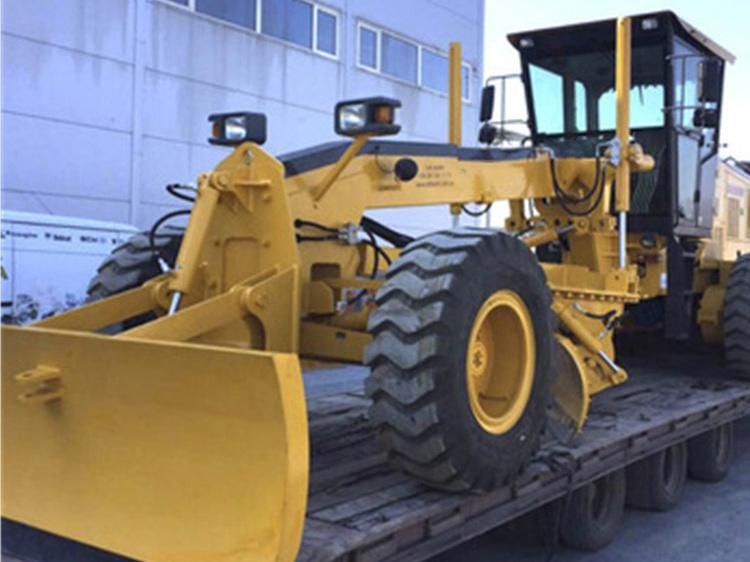

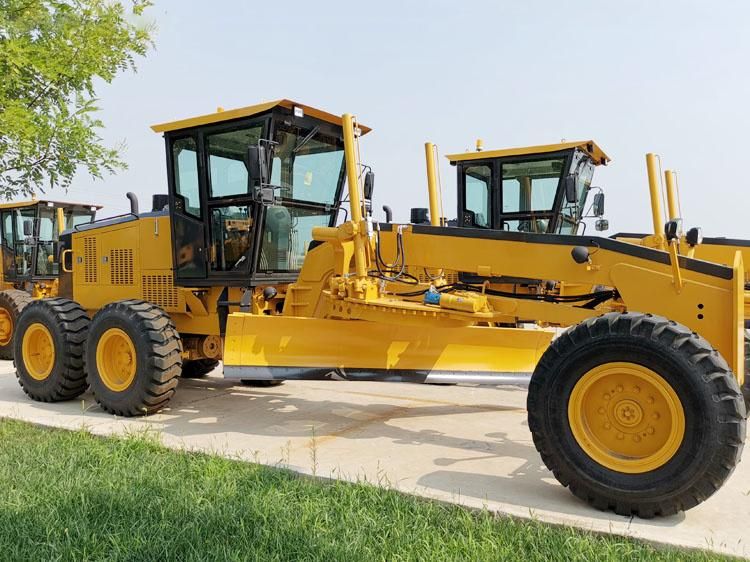

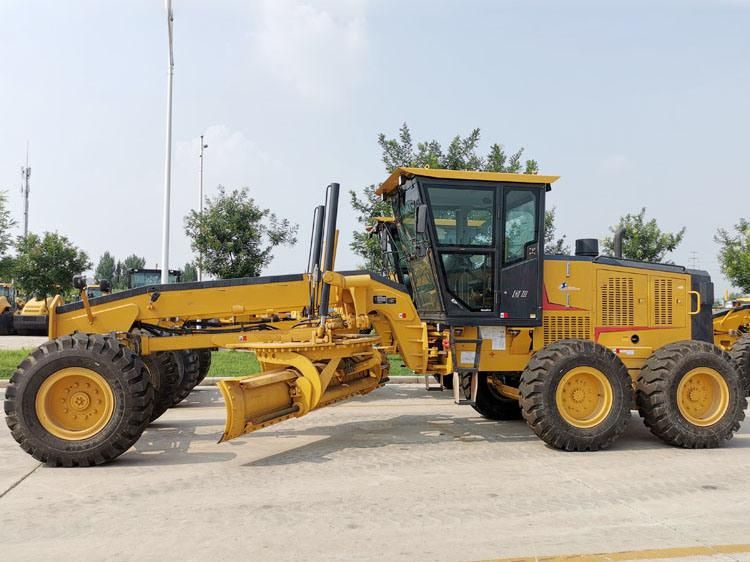

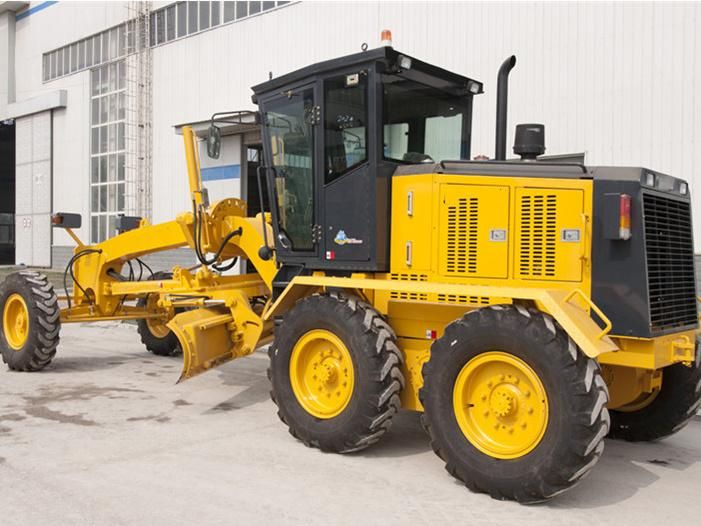

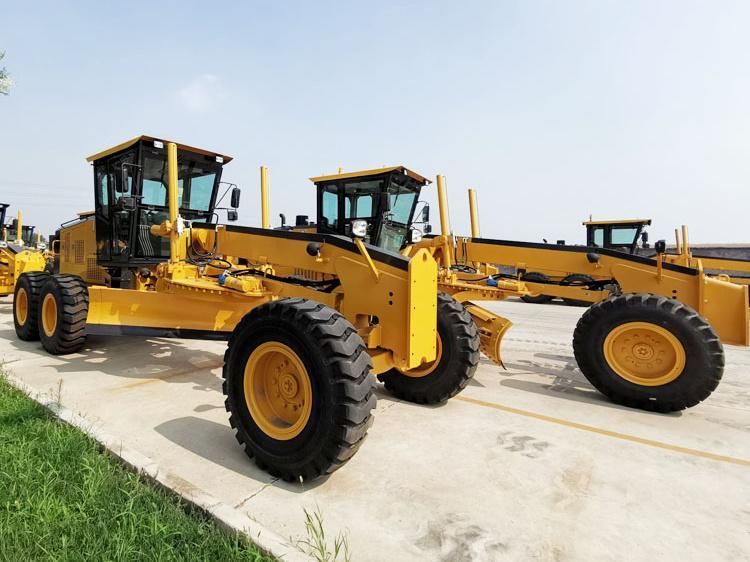

High Efficiency Construction Machine 140HP Sg14 Small Motor Grader
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Onsite Installation, Video Technical Support
- Warranty：1 Year
- Certification：ISO, CE
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic
Base Info
- Model NO.：SG14
- Walking Mode：Wheeled
- Type：Medium-sized Grader
- Max. Cutting Depth：500mm
- Transport Package：Roro,Container,Bulk
- Specification：11600KG
- Trademark：Sinomada
- Origin：China
- HS Code：8705109100
- Production Capacity：500units,Month
Description
Product DescriptionParameters
Pictures
Company information
| Product name | SG14 |
| Performance parameters | |
| Operating weight of machine (kg) | 11600 |
| Wheelbase (mm) | 5812 |
| Wheel tread (mm) | 2050 |
| Minimum ground clearance (mm) | 430 |
| Steering angle of front wheels (°) | ±45 |
| Articulated steering angle (°) | ±25 |
| Maximum traction force (kN) | 65(f=0.75) |
| Turning radius (mm) | 6600 (Outer side of front wheel) |
| Maximum gradeability (°) | 20 |
| Width of shovel blade (mm) | 3660 |
| Height of shovel blade (mm) | 615 |
| Blade slewing angle (º) | 360 |
| Blade cutting angle (º) | 30-68 |
| Maximum digging depth of blade (mm) | 500 |
| Length (mm) | 8036 |
| Width (mm) | 2380 |
| Heigh (mm) | 3170 |
| Engine | |
| Engine model | 6BTAA5.9-C150 |
| Emission | China-II |
| Type | Mechanical direct injection |
| Rated power/rated speed (kw/rpm) | 112kW/2200 |
| Drive system | |
| Torque converter | Single-stage single-phase three-element |
| Transmission | Countershaft power shift |
| Gears | Six forward and three reverse |
| Speed for forward gear I (km/h) | 5.4 |
| Speed for forward gear II (km/h) | 8.3 |
| Speed for forward gear III (km/h) | 13.2 |
| Speed for forward gear IV (km/h) | 20.6 |
| Speed for forward gear V (km/h) | 29.6 |
| Speed for forward gear VI (km/h) | 44 |
| Speed for reverse gear I (km/h) | 5.4 |
| Speed for reverse gear II (km/h) | 13.2 |
| Speed for reverse gear III (km/h) | 29.6 |
| Brake system | |
| Service brake type | Hydraulic brake |
| Parking brake type | Mechanical brake |
| Brake oil pressure (MPa) | 10 |
| Hydraulic system | |
| Working pump | Constant displacement gear pump, with flow at 28ml/r |
| Operating valve | Integral multi-way valve |
| Pressure setting of safety valve (MPa) | 16 |
| Pressure setting of safety valve (MPa) | 12.5 |
| Filling of fuel/oils/fluids | |
| Fuel tank (L) | 220 |
| Working hydraulic fuel tank (L) | 85 |
| Transmission (L) | 28 |
| Drive axle (L) | 28 |
| Balance box (L) | 2X23 |
