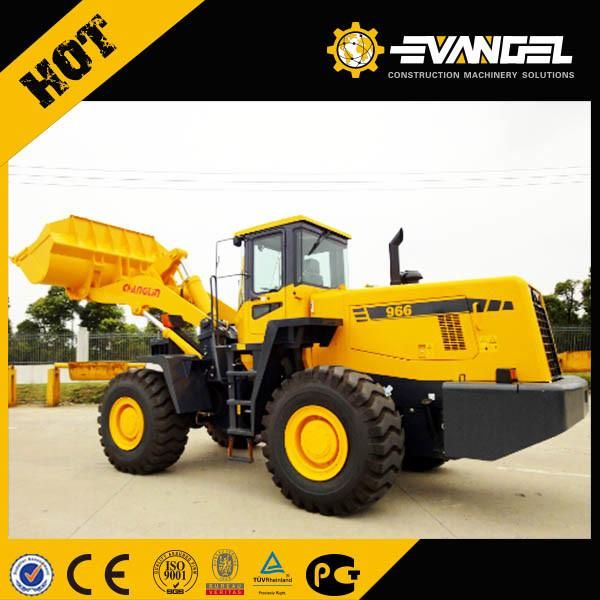

Popular Market Front End Loader Changlin 966 6ton Wheel Loader
Evangel Industrial (Shanghai) Co., Ltd.- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Rated Load：6-9t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：CHANGLIN 966
- Type：Medium-sized Loader
- Transport Package：Nude Package
- Specification：8110*3000*3508mm
- Trademark：CHANGLIN
- Origin：China
Description
Parameter Items
Parameter Value
1.Main parameter
Rated load (kg)
6000
Operating Weight (standard) (kg)
20000
Rated Bucket Capacity (m3)
3.5
Maximum breakout force (KN)
≥200
Maximum traction force (KN)
≥165
Total hydraulic cycle time (s)
≤10.5
Maximum dump height (mm)
3110
Maximum dump distance (mm)
1310
Forward speed range (Km / h)
0~37
Reverse speed range (Km / h)
0~23.5
Transport dimensions (L × W × H) (mm)
(8540±50)×3030×(3460±50)
Maximum steering angle (°)
38
Maximum Grade ability(°)
29
Minimum turning radius (mm)
7040
Tire Size
23.5-25
2.Engine parameter
Model
Weichai WD10G240E21/Shangchai SC11CB240.1G2B1
Type
6-cylinder, in-line, direct injection and turbocharged
Power (kw)
175
Maximum torque (N.m)
920/912
Cylinder diameter (mm)
126/121
Stroke (mm)
130/152
Displacement (L)
9.726/10.45
Fuel consumption ( kw.h)
240
3.Hydraulic system
Work system pressure (Mpa)
18
4.Braking System
Running braking system type
Single line gas cap oil four-wheel caliper disc brake
Parking / emergency brake system type
Flexible shaft manual type
5.Oil Tank Capacity
Fuel tank (L)
320
Hydraulic tank capacity (L)
250
