• Model NO.：CLG816C
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Standard Bucket：0.8m3
• Color：Yellow
• Total Cycle Time：8.6s
• Tipping Load-Full Turn：4180kg
• Bucket Breakout Force：62kn
• Light Material：0.8-1.5 M3
• Engine：Luochai Yt4a2 – 24
• Transport Package：Nude Sea Package
• Specification：7245*2482*3320mm
• Trademark：Liugong
• Origin：China
• Production Capacity：100units,Month

Basic Info.

Model NO. CLG816C Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Standard Bucket 0.8m3 Color Yellow Total Cycle Time 8.6s Tipping Load-Full Turn 4180kg Bucket Breakout Force 62kn Light Material 0.8-1.5 M3 Engine Luochai Yt4a2 – 24 Transport Package Nude Sea Package Specification 7245*2482*3320mm Trademark Liugong Origin China Production Capacity 100units/Month

Product Description

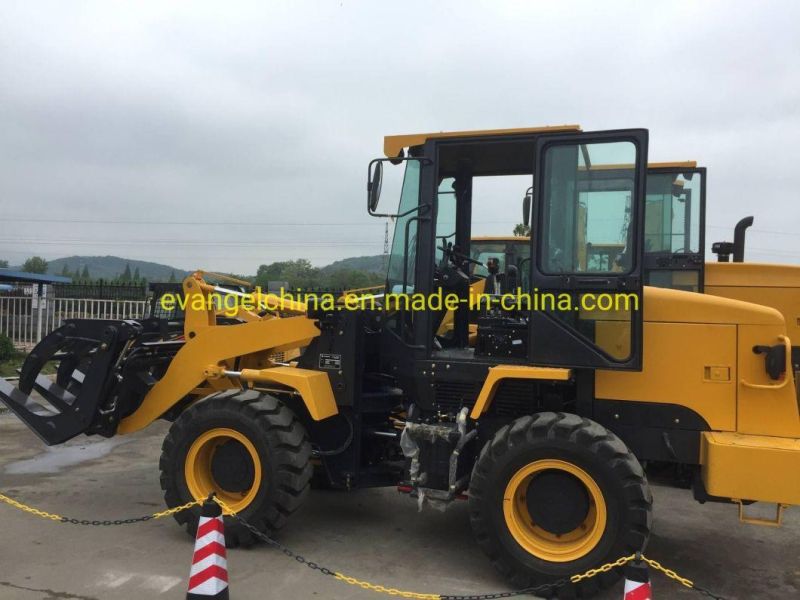

Liugong 1 Ton Small Wheel Loader CLG816C/816/816C

• The turning radius is small and the steering is flexible; suitable for operating in tight spaces.
• Oscillating rear axle keeps four-wheel drive engaged for superior off-road mobility.
• One-stop maintenance: engine, fan, radiator and hydraulic hoses can be serviced from ground level.

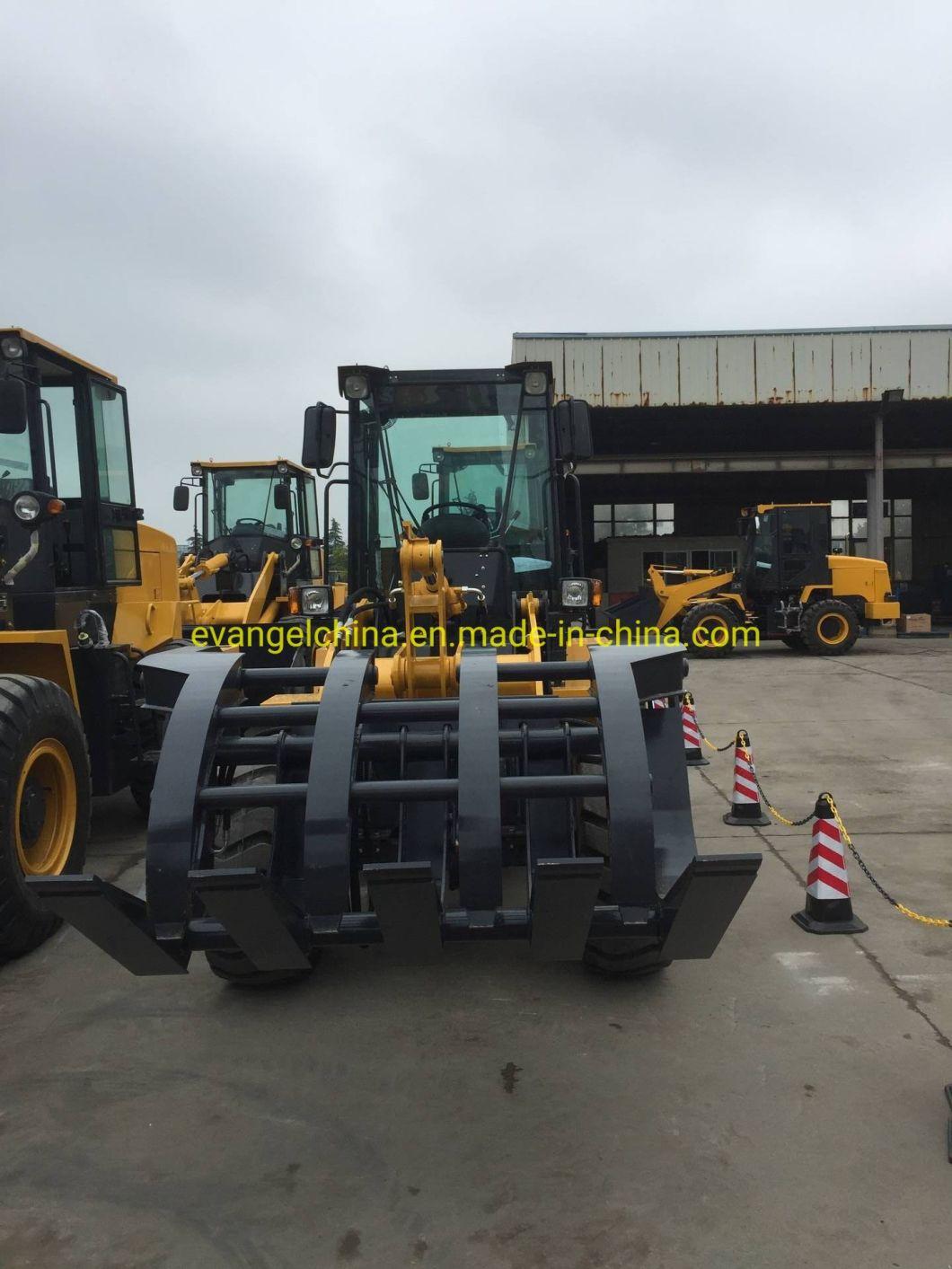

• Optional multiple attachments include: multiple buckets, pallet fork, grapples, snow pusher blade and sweeper broom.

Operating weight 5470 kg
Standard bucket 0.8 m³
Gross power 55 kW (75 hp) @ 2400 rpm
Net power 50 kW (68 hp) @ 2400 rpm
Rated load 1000 kg
Total cycle time 8.6 s
Tipping load-full turn 4180 kg
Bucket breakout force 62 kN
Dump clearance, full height discharge 2417 mm
Dump reach, full height discharge 788 mm
Model Luochai YT4A2 - 24
Emissions EPA Tier 2 / EU Stage II
Cooling system Charge air cooling
Length with bucket down 5457 mm
Width over tires 1940 mm
Cab height 2853 mm
Turning radius, outside of tire 4208 mm
General Purpose 0.8 m³
Light material 0.8-1.5 m³
