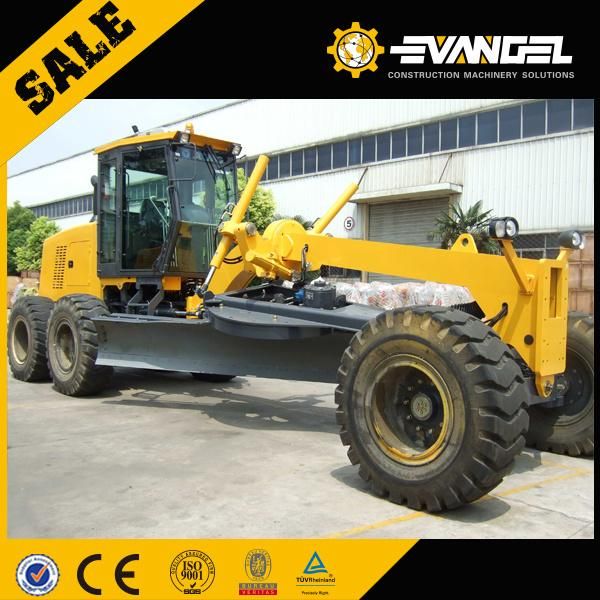

Cheap Price 14.5ton 180HP Motor Grader Gr1803 for Road Construction
Evangel Industrial (Shanghai) Co., Ltd.- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic
- Walking Mode：Wheeled
- Type：Medium-sized Grader
Base Info
- Model NO.：GR1803
- Transport Package：Nude Package
- Specification：8900*2625*3470mm
- Origin：China
- Production Capacity：100sets,Month
Description
Basic specification
Engine model
6CTAA8.3 D6114
Rated power/speed
138kW/2200 140kW/2300rpm
Dimension(LxWxH)
8900×2625×3470mm
Operating weight(Standard)
15400kg
Performance specification
Travelling speed ,forward
5,8,11,19,23,38 km/h
Travelling speed ,reverse
5,11,23 km/h
Tractive force(f=0.75)
79KN
Max. gradeability
20%
Tire inflation pressure
260 kPa
Working hydraulic pressure
16 MPa
Transmission pressure
1.3~1.8MPa
Operating specification
Max. steering angle of front wheels
±50°
Max. lean angle of front wheels
±17°
Max. oscillation angle of front axle
±15°
Max. oscillation angle of balance box
15
Frame articulation angle
±27°
Min. turning radius using articulation
7.3m
Biade
Maximum lift above ground
450mm
Maximum depth of cutting
500mm
Maximum blade position angle
90°
Blade cutting angle
28°-70°
Circle reversing rotation
360°
Moldboard width X height
3965×610mm
