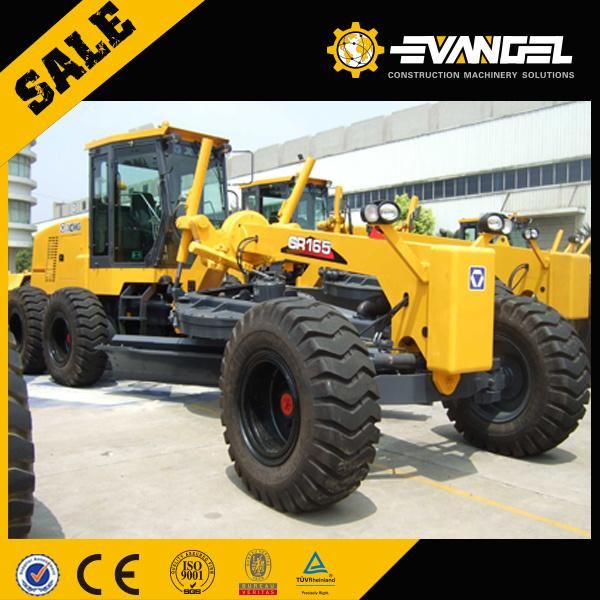

165HP Motor Grader Gr1653 with Grader Transmission for Road Construction
Evangel Industrial (Shanghai) Co., Ltd.- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic
- Walking Mode：Wheeled
- Type：Small Grader
Base Info
- Model NO.：GR1653
- Transport Package：Nude Package
- Specification：8900*2625*3470mm
- Origin：China
- Production Capacity：100sets,Month
Description
km/hReverse speed 5,11,23 Tractive force(f=0.75) 77 KN Max. gradeability 25 % Tire inflation pressure 260 kPa Working hydraulic pressure 20 MPa Transmission pressure 1.3~1.8 MPa Max. steering angle of front wheels ±48° Max. lean angle of front wheels ±17° Max. oscillation angle of front axle ±15° Max. oscillation angle of balance box front15°,reverse15° Frame articulation angle ±27° Min. turning radius using articulation 7.3 m Max. lift height 450 m Max. cutting depth 500 m Max. blade position angle 90° Blade cutting angle 28°-70° Circle reversing rotation 360° Moldboard width X height 3965*610 mm
