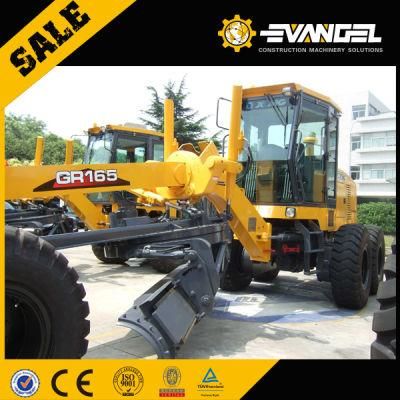

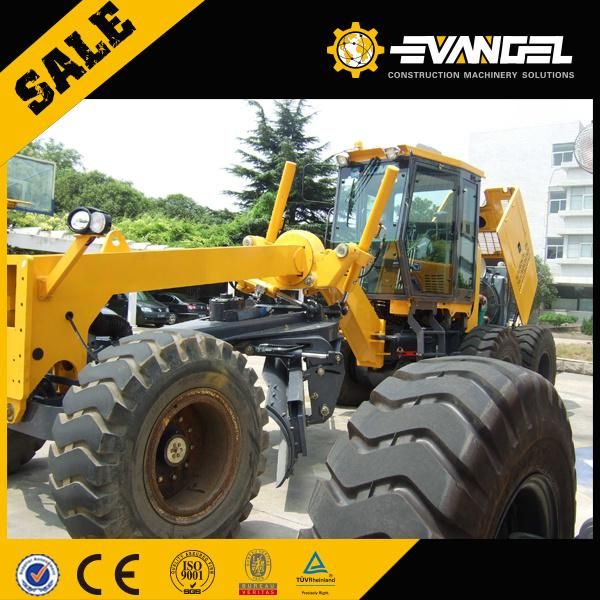

2019 New Gr2153 16.5ton Mining Grader Motor with Ripper

Evangel Industrial (Shanghai) Co., Ltd.
  • Certification：TUV, UL, ISO, RoHS, CE
  • Condition：New
  • Application：Railway, Mine, Farmland, Highway
  • Transmission：Hydraulic
  • Walking Mode：Wheeled
  • Type：Large Grader

Base Info

  • Model NO.：GR2153
  • Transport Package：Nude Package
  • Specification：8970*2625*3470mm
  • Origin：China
  • Production Capacity：100sets,Month

Description

MainTechnicalSpecificationsModel  GR215EngineEngine model CTAA8.3/6CTA8.3 Rated power/speedkw/rpm153/2200 160/2200 Traveling speed forwardkm/h5,8,11,19,23,38
PerformancespexificationTraveling speed reversekm/h5,11,23 (f=0.8)Traclive forcekN90 Max.gradeability%30
Min.turning radius using articulationm7.3 Maximum lift above groundmm450
OperatingspecificationMaximum depth of cuttingmm500 Maximum blade position angle90 Blade cutting angle 28~70BladeCircle reversing rotation 360 Molo board width x heightmm3965×610/4270×610 Dimension(LxWxH)mm8970x2625x3470 Operating weight(Standard)kg165002019 New Gr2153 16.5ton Mining Grader Motor with Ripper
