• Model NO.：CLG862H
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Color：Yellow etc
• Bucket：3.5m3
• Total Cycle Time：10s
• Engine：6ltaa8.9-C240
• Emission：Euro II
• Light Material Bucket：4.2, 5.2, 5.8 M3
• Transport Package：Nude Sea Package
• Specification：8185*3000*3465mm
• Trademark：Liugong
• Origin：China
• Production Capacity：50units,Month

Basic Info.

Model NO. CLG862H Load and Unload Mode Front Discharge Walking Mode Wheeled Type Medium-sized Loader Color Yellow etc Bucket 3.5m3 Total Cycle Time 10s Engine 6ltaa8.9-C240 Emission Euro II Light Material Bucket 4.2, 5.2, 5.8 M3 Transport Package Nude Sea Package Specification 8185*3000*3465mm Trademark Liugong Origin China Production Capacity 50units/Month

Product Description

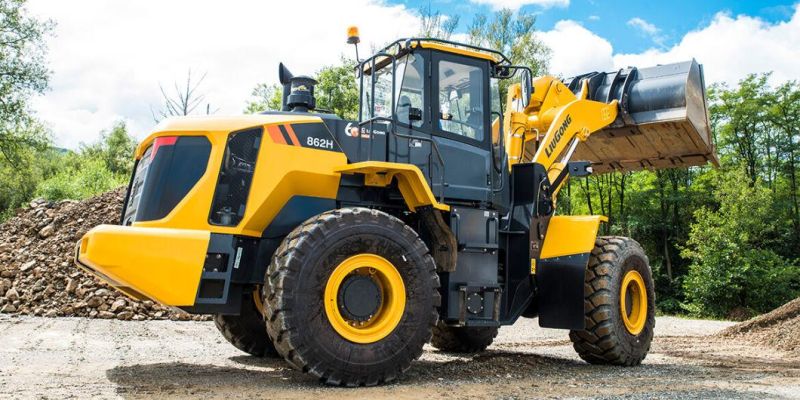

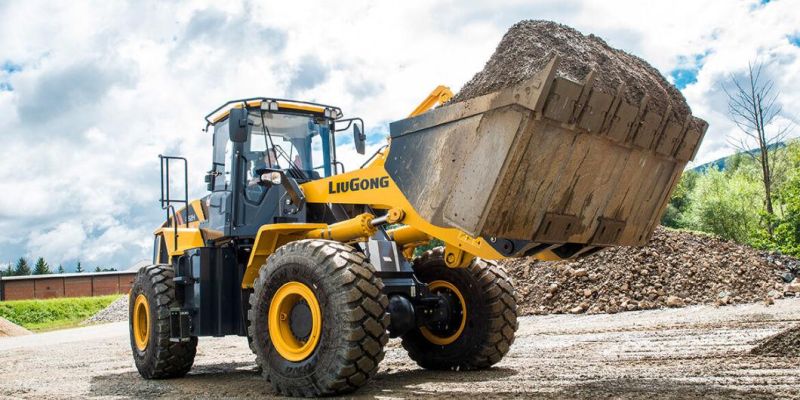

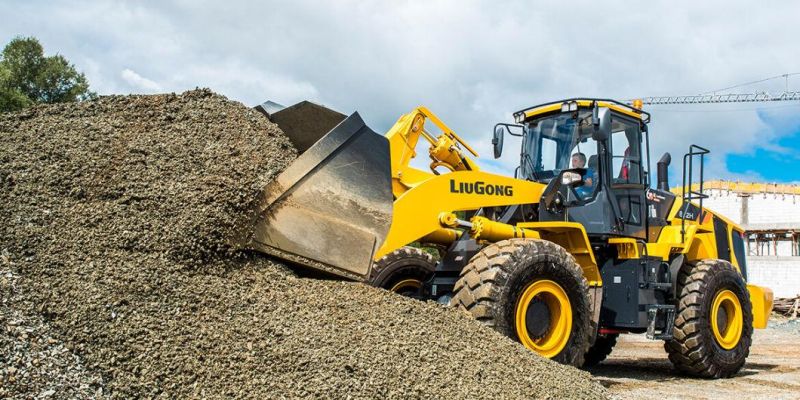

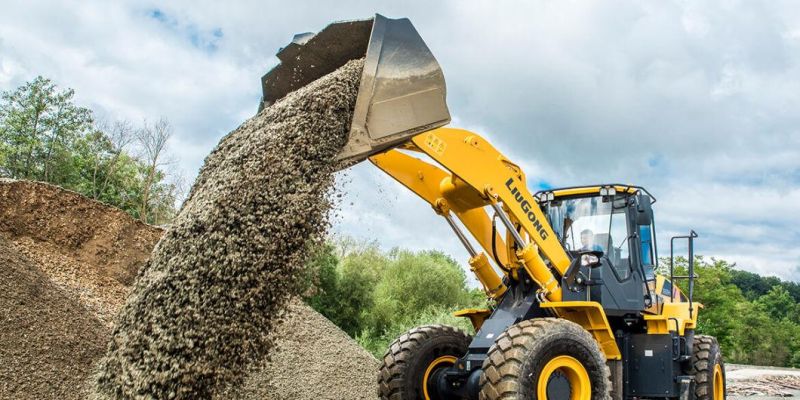

Liugong 6 ton wheel loader CLG862H bucket loader price

• The engine is perfectly matched to the transmission chain and hydraulic system, for more efficiency and less wastage.
• The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.
• A/C with big cooling capacity, adding air from back and bottom of machine for all-round effect.
• Single layer radiator and big range fin spacing for high efficiency and easy maintenance.

Operating weight  19500 kg

Standard bucket  3.5 m³

Gross power  179 kW (243 hp) @ 2200 rpm

Net power  161 kW (219 hp) @ 2200 rpm

Rated load  6000 kg

Total cycle time  10 s

Tipping load-full turn  14100 kg

Bucket breakout force  195 kN

Dump clearance, full height discharge  3100 mm

Dump reach, full height discharge  1195 mm

Model  Cummins 6LTAA8.9-C240

Emissions  EPA Tier 2 / EU Stage II

Cooling system  Charge air cooling

Length with bucket down  8628 mm

Width over tires  2880 mm

Cab height  3467 mm

Turning radius, outside of tire  6450 mm

Bucket capacity  3.0-6.0 m³

General Purpose  3.5 m³

Light material  4.2, 5.2, 5.8 m³

Heavy-rock  3.1 m³
