• Model NO.：M910
• Type：Small Loader
• Name：Small Telescopic Wheel Loader
• Engine：Perkins,Yanmar,Chinese
• Rated Power：33HP
• Dimension：2600X1300X2300mm
• Weight：1850kg
• Rated Loading Capacity：1000kg
• Hydraulic Output：67L,Min
• Bucket Capacity：0.5cbm
• Min. Ground Clearance：268mm
• Tyre：26X12-12 Agriculture Tire
• Speed：0~12km,H Variable Speed
• Attachments Available：Quick Hitch Plus 40 Attachments
• System Pressure：210bar
• Max. Lifting Height：3000mm
• Min. Turning Radius：2120mm
• Transport Package：Container
• Specification：33hp
• Trademark：STEEL CAMEL
• Origin：China
• HS Code：8429510000
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. M910 Type Small Loader Name Small Telescopic Wheel Loader Engine Perkins/Yanmar/Chinese Rated Power 33HP Dimension 2600X1300X2300mm Weight 1850kg Rated Loading Capacity 1000kg Hydraulic Output 67L/Min Bucket Capacity 0.5cbm Min. Ground Clearance 268mm Tyre 26X12-12 Agriculture Tire Speed 0~12km/H Variable Speed Attachments Available Quick Hitch Plus 40 Attachments System Pressure 210bar Max. Lifting Height 3000mm Min. Turning Radius 2120mm Transport Package Container Specification 33hp Trademark STEEL CAMEL Origin China HS Code 8429510000 Production Capacity 500 Sets/Year

Product Description

Small Kubota Engine Front Loader with power rake for sale
GENERAL INTRODUCTION:

New design,combination of loader and tractor. Both front and rear end has hydraulic output for various attachments.

Tiltable cabin gives full access for the complete inside parts which is very convenient.

Fully hydrostatic transmission system,  piston pump plus 4 wheel motors combined the driving system, smooth and stepless speed change. Only two pdeals forward/reverse control the driving of the loader, convenient and simple.

Telescopic boom,Cabin/Folding ROPS, 3 point hitch ect. optional, offer more choices for customers.


FEATURES:

1.Fully hydro-static 4wd, only two pedals forward/reverse control driving.

2.Independent working and driving system, can give big output at low speed.

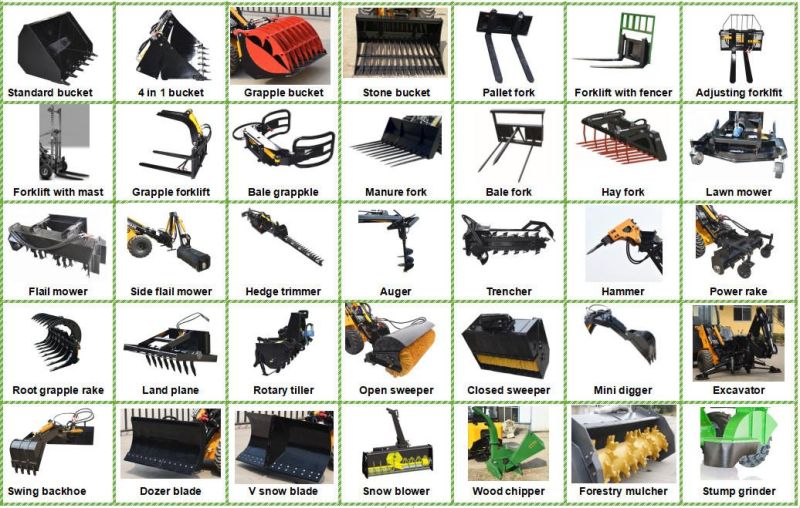

3.Hydraulic quick coupling system and adapters, can use many different attachments for Avant, Multione,
Bobcat, Schaffer, Giant, ect. european loaders and tractors.

4.Flexible articulation, better through ability on rough terrian, less vibration and more operating friendly.

5.Tilt cabin, quick remove side & rear cover, offer complete and easy access to all maintenance points.

6.0~8~16KM/H two speed optional.

7.Boom floating & self levering.


DETAILED IMAGES:

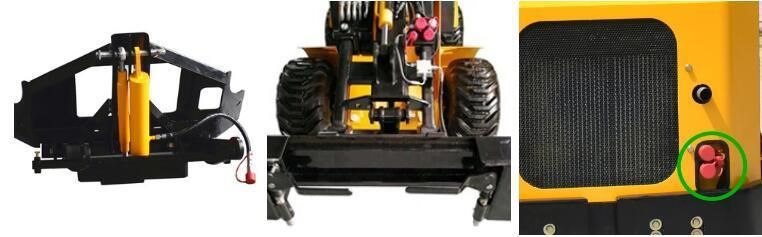

      3 point hitch                               Bobcat adapter plate                Rear hydraulic output

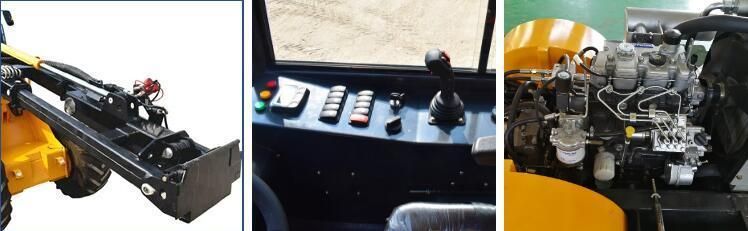

      Telescopic boom                     Control panel                              Engine compartment


TECHNICAL DATA:


Model	STEEL CAMEL M910 mini loader
Dimension (LxWxH)	2690 X1240 X 2285mm
Max. lifting height (boom extended)	3030mm
Max. lifting height (boom retracted)	2512mm
Max. dumping height	2630mm
Bucket capacity	0.5cbm
Max. loading capacity	1000kg
Min. turning radius	2120mm
Turning angle	45 degree
Min. ground clearance	268mm
Speed	0-12 km/h single speed
Weight	1850 kg
Standard tire	26X12-12
Tire pressure	2.8 bar
Oil tank capacity	45L
Pressure	210bar
Working oil flow	33.5L/minx2
Tracking oil flow	78L/min
Oil model(mineral oil)	L-HL46
Fuel tank capacity	30L
Battery	60Ah, 12V
Engine	Perkins 404D-15
Rated power	24.5kw/33hp

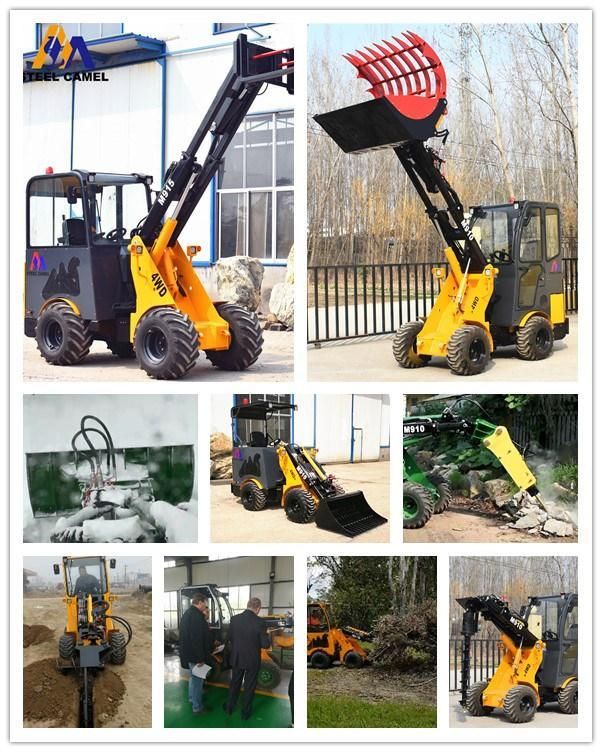

APPLICATION:
Thanks to the compact design, front & rear output, telescopic boom, quick coupling system ect.  "STEEL CAMEL" series mini loaders become the "TRANSFORMER" in machinery.

It was widely used in farming, construction, gardenning,landscaping, municiple work, become good partners for the customers worldwide

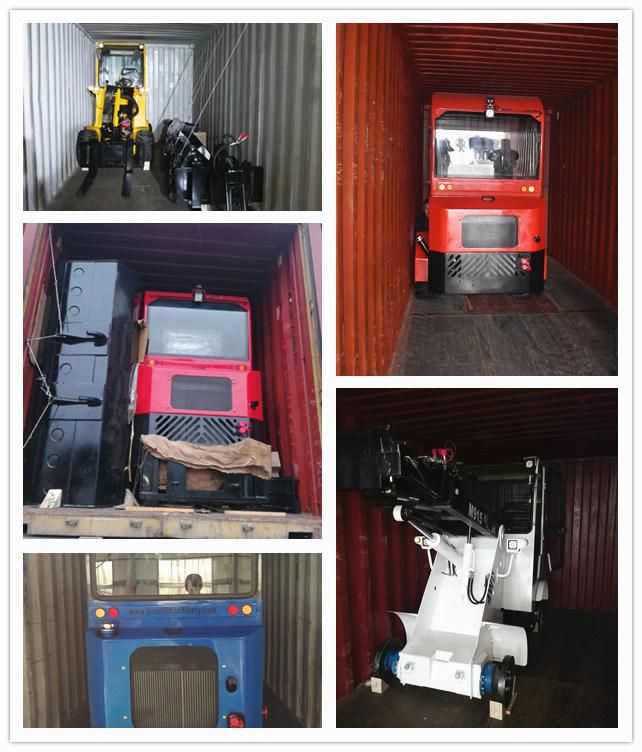

PACKING & DELIVERY:

The M910 mini loader can be driven into container directly and fasten. Loading quantity is 3 sets/20ft container, 6 sets/40ft cotnainer.

FAQ:




CONTACT US:

With more than 10 years' experience of production and exporting, I'm ready to be your reliable consultant about products and importing procedure anytime.

Send an inquiry, leave your questions, I will take care of all the rest matters.

Anna Guan/Marketing director
