• Model NO.：HH958
• Type：Large Loader
• Bucket Capacity：3m3
• Operating Weight：17000kg
• Dumping Height：3100mm
• Dumping Reach：1285mm
• Boom Lifting Time：6.8s
• Total Cycling Time：12s
• Max. Speed：36km,H
• Max. Breakout Force：170kn
• Max. Drawing Force：150kn
• Min. Turning Radius：6360mm
• Transport Package：1 Unit Naked Within 1 X 40hq Container
• Specification：7960*3070*3490mm
• Trademark：CHHGC
• Origin：Shandong China
• HS Code：8803900090
• Production Capacity：6000 Units,Year

Basic Info.

Model NO. HH958 Type Large Loader Bucket Capacity 3m3 Operating Weight 17000kg Dumping Height 3100mm Dumping Reach 1285mm Boom Lifting Time 6.8s Total Cycling Time 12s Max. Speed 36km/H Max. Breakout Force 170kn Max. Drawing Force 150kn Min. Turning Radius 6360mm Transport Package 1 Unit Naked Within 1 X 40hq Container Specification 7960*3070*3490mm Trademark CHHGC Origin Shandong China HS Code 8803900090 Production Capacity 6000 Units/Year

Product Description

Hot Sale Chinese 5T Hydraulic Articulated Arm Front End Bucket Wheel Loader with Joystick


Features

* Shangchai Caterpillar tech SC11CB220G2B1 engine is adopted, large torque backup and strong power.
* Single stage, 4 elements, twin turbo ZL50 torque converter and planetary gearbox from Hangzhou Advance Gearbox Group, compact structure and high reliability.
* Gear-shift with 2 forward and 1 reverse controlled by flexible shaft eases much labor.
* Strengthened axles owning large bearing capacities and high reliability.
* Twin pump merging hydraulic system makes lower consumption and excellent performance.
* The coaxes flow-amplified, hydraulic compensated steering makes operation easy and performance reliable.
* Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously.
* Air over hydraulic brake system; eight caliper disc brakes.
* Air break control, expand hoof type parking brake and emergency brake.
* Working device with automatically leveling ability at high position.
* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
* Integral, luxury instrument board.
* New, luxury cabin


Main Specifications


Item	Specification	Item	Specification
Bucket capacity	3m³	Min. turning radius (outside of rear wheel)	6360mm
Rated load	5000kg	Steering angle	35°
Dumping height	3100mm	Min. ground clearance	478mm
Dumping reach	1285mm	Wheel base	3200mm
Boom lifting time	6.8s	Wheel tread	2250mm
Total cycling time	12s	Engine model	SC11CB220GB1
Max. speed	36km/h	Rated power	162kW/2200rpm
Max. breakout force	170kN	Tyre	23.5-25
Max. drawing force	150kN	Overall dimensions	7960*3070*3490mm
Max. grade ability	28°	Operating weight	17000kg

Remark: Heavy chassis for standard

Optional:
(1) Dongfeng Cummins 6CTA8.3-C215 engine
(2) ZF TECH WG180 gearbox
(3) ZF TECH WG200 gearbox
(4) Air Condition
(5) Joystick control
(6) Quick-hitch
(7) Fork
(8) ROPS

Others:
(1) Packing: 1 unit naked within 1 x 40HQ container
(2) Delivery time: 40 days
(3) Guarantee Period: One year

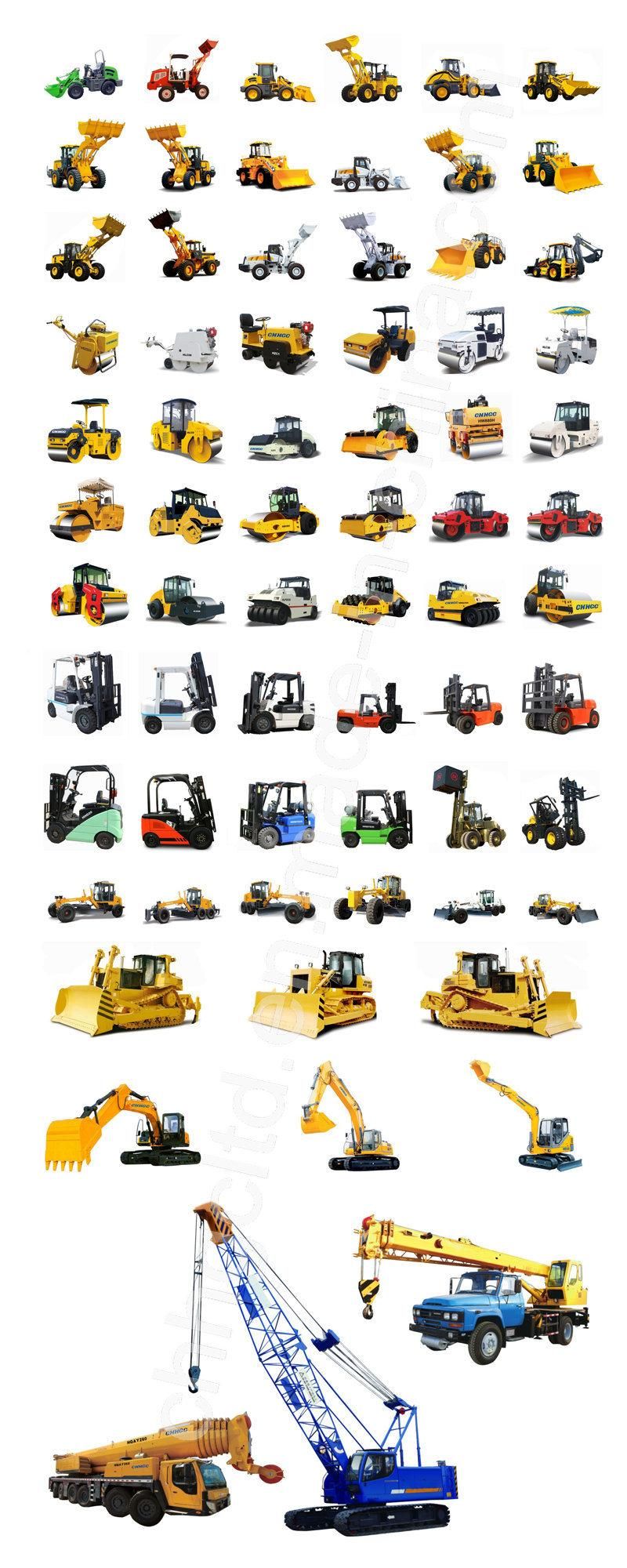

Our Products

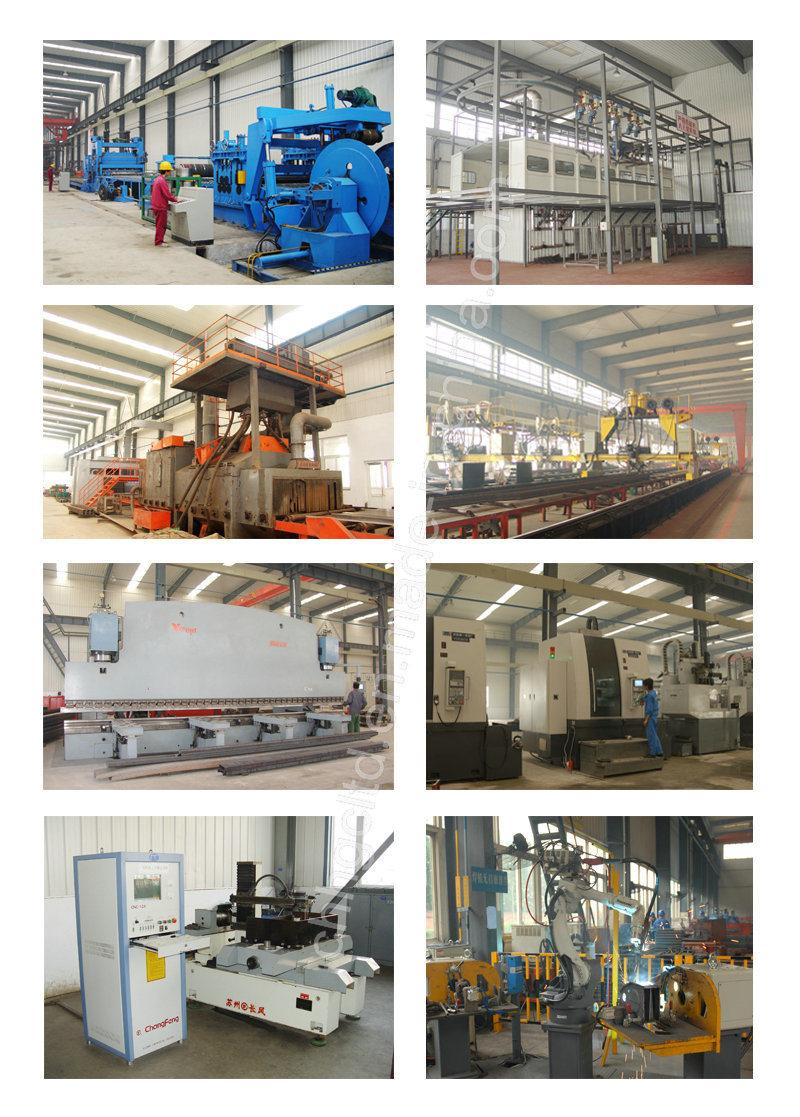

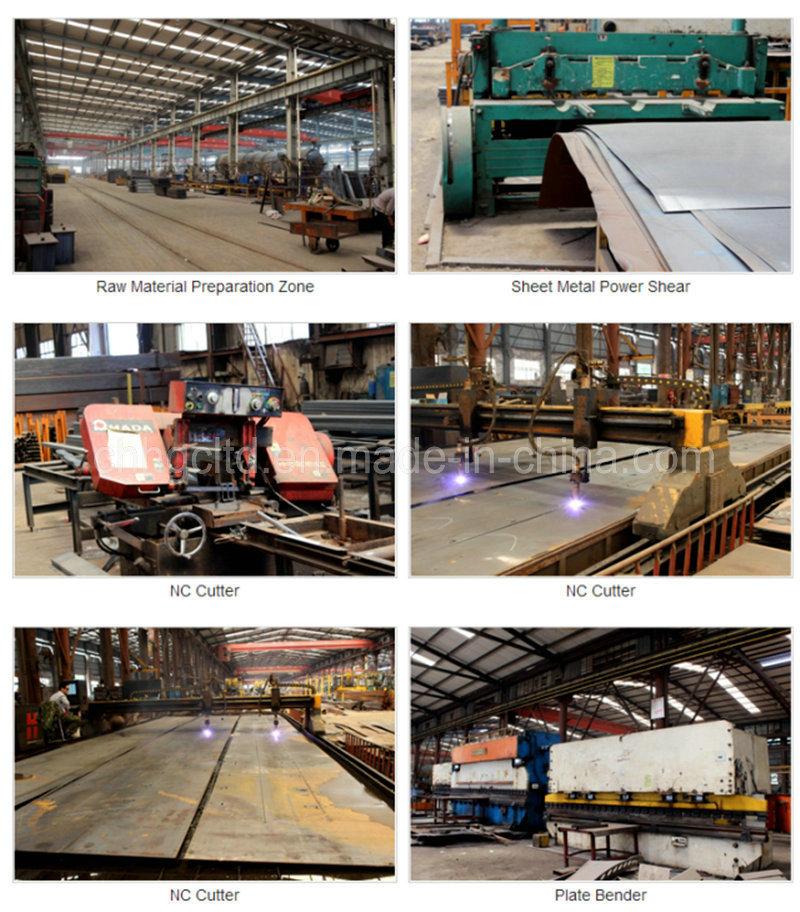

Workshop



Why us?

1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage invironment.
3)Unparalleled after sales service


Packaging and Shipping

1. All the wheel loaders will be made anti rust before shipment
2. Different shipping method for different situation, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking service


Our Services

1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available. OEM is welcome.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Do the best reliable heavy-duty earth-moving machinery in China.
7.Warranty period is 1-year or 2000 working hours against Bill of Lading.
8.ROPS cab


FAQ

1. How about the products range do you produce ?

We are specilized in producing wheel loaders cover 0.8ton to 5tons. Model: CHHGC608,CHHGC610,CHHGC620,CHHGC630,HH10,ect. producing forklift with 2tons, 3tons, 4tons, 5tons, load capacity.

2. Which brand engine do you have for ?

We company choose good quality engine for , Changchai, Xichai, Weichai Power engine / cummins engine / Deutz diesel engine and so on optional.

3. What advantages of your products and company?

1.)adjusting design are available from us, to adapt the market and using environment better, and help customers gain more competitions in your market.
2.) ROPS cabin, double-layer thick cab, more strong and resistant
3.) adjusting steering wheel and adjusting seat, more comforable drive environment for driver
4.) All of our products passed the strict test before sale to customers
