• Model NO.：HH938
• Type：Medium-sized Loader
• Bucket Capacity：1.8m3
• Operating Weight：10600kg
• Min. Turning Radius：5160mm
• Dumping Height：3000mm
• Min. Ground Clearance：375mm
• Steering Angle：36
• Dumping Reach：1050mm
• Boom Lifting Time：5.5s
• Total Cycling Time：10s
• Max. Speed：36km,H
• Transport Package：1 Unit Naked Within 1 X 40hq Container
• Specification：7020*2510*3300mm
• Trademark：CHHGC
• Origin：Shandong China
• HS Code：8601101100
• Production Capacity：6000 Units,Year

Basic Info.

Model NO. HH938 Type Medium-sized Loader Bucket Capacity 1.8m3 Operating Weight 10600kg Min. Turning Radius 5160mm Dumping Height 3000mm Min. Ground Clearance 375mm Steering Angle 36 Dumping Reach 1050mm Boom Lifting Time 5.5s Total Cycling Time 10s Max. Speed 36km/H Transport Package 1 Unit Naked Within 1 X 40hq Container Specification 7020*2510*3300mm Trademark CHHGC Origin Shandong China HS Code 8601101100 Production Capacity 6000 Units/Year

Product Description

Hot Sale Chinese 1-5 T Wheel Loader with Joystick Construction Shovel Loader


Features

* Weichai DEUTZ WP6G125E23 diesel engine, higher power and reliability;
* Hydrodynamic transmission, three-element and single stage torque converter, high reliability, easy maintenance;
* Hangzhou Advance Gearbox Group BS428 power shift transmission, high efficiency and easy maintenance;
* Gear-shift controlled by flexible shaft makes operation more flexible and reliable;
* Single lever joystick control system, comfortable and flexible operation;
* Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;
* Air over hydraulic disks on four wheel brakes;
* Large space articulated frames make operation and traveling stable;
* Working device with automatically leveling ability at high position;
* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability;
* Integral, luxury instrument board;
* New, luxury cabin.


Main Specifications


Item	Specification	Item	Specification
Bucket capacity	1.8m³	Min. turning radius (outside of rear wheel)	5160mm
Rated load	3000kg	Steering angle	36°
Dumping height	3000mm	Min. ground clearance	375mm
Dumping reach	1050mm	Wheel base	2850mm
Boom lifting time	5.5s	Wheel tread	1700mm
Total cycling time	10s	Engine model	WP6G125E23
Max. speed	36km/h	Rated power	92kW/2300rpm
Max. breakout force	103kN	Tyre	17.5-25
Max. drawing force	90kN	Overall dimensions	7020*2510*3300mm
Max. grade ability	30°	Operating weight	10600kg

Remark:Joystick control and heavy chassis for standard

Optional:
(1) Dongfeng Cummins 6BT5.9-C130 engine (97Kw/ Euro I)
(2) Air Condition
(3) YD13
(4) Quick-hitch
(5) Fork
(6) ROPS

Others:
(1) Packing: 1 unit naked within 1 x 40HQ container
(2) Delivery time: 30 ~ 40 days
(3) Guarantee Period: One year


Our Products

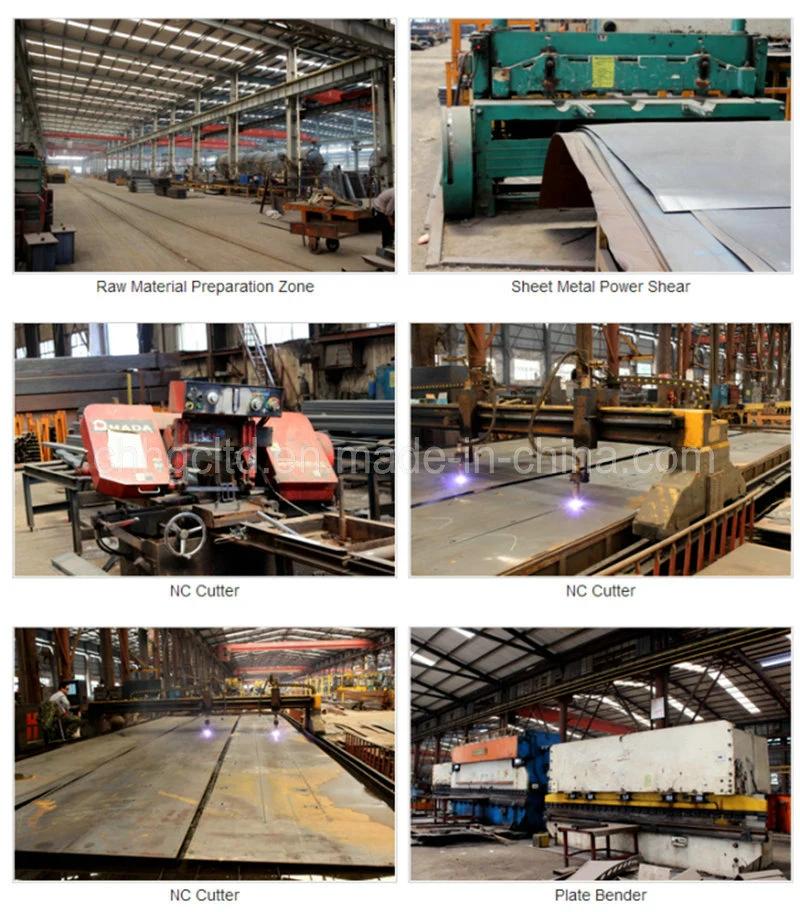

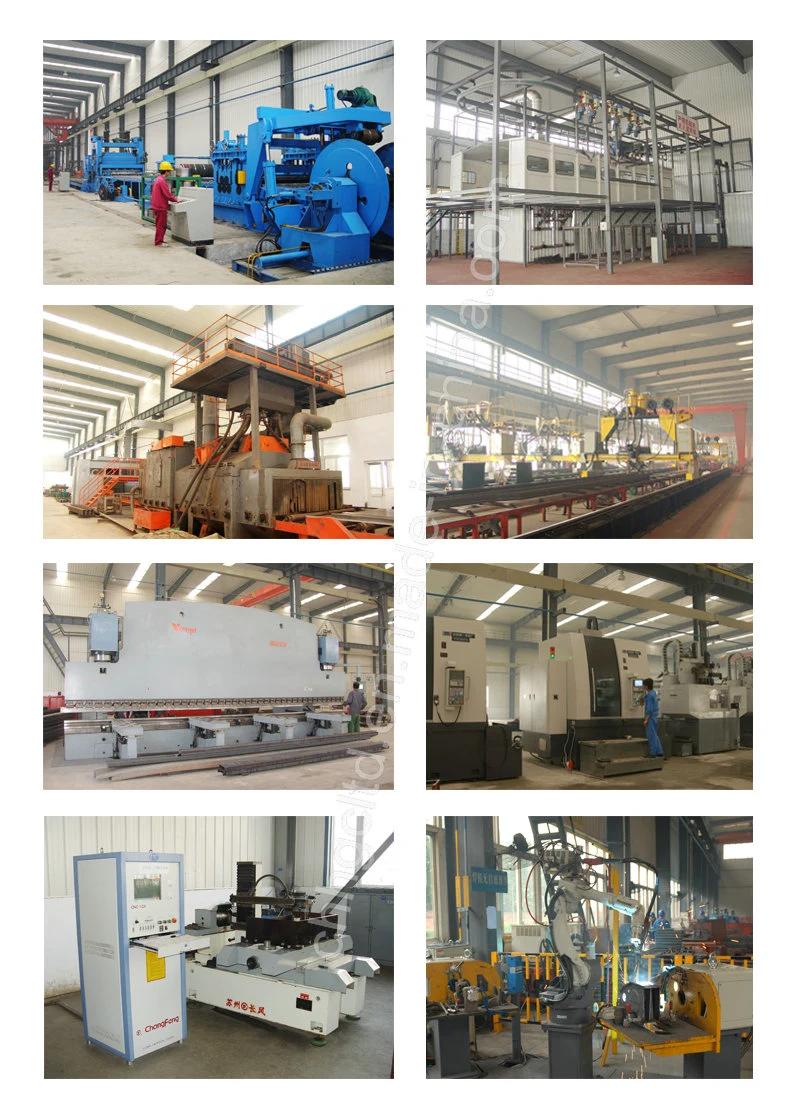

Workshop



Why us?

1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage invironment.
3)Unparalleled after sales service


Packaging and Shipping

1. All the wheel loaders will be made anti rust before shipment
2. Different shipping method for different situation, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking service


Our Services

1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available. OEM is welcome.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Do the best reliable heavy-duty earth-moving machinery in China.
7.Warranty period is 1-year or 2000 working hours against Bill of Lading.
8.ROPS cab


FAQ

1. How about the products range do you produce ?

We are specilized in producing wheel loaders cover 0.8ton to 5tons. Model: CHHGC608,CHHGC610,CHHGC620,CHHGC630,HH10,ect. producing forklift with 2tons, 3tons, 4tons, 5tons, load capacity.

2. Which brand engine do you have for ?

We company choose good quality engine for , Changchai, Xichai, Weichai Power engine / cummins engine / Deutz diesel engine and so on optional.

3. What advantages of your products and company?

1.)adjusting design are available from us, to adapt the market and using environment better, and help customers gain more competitions in your market.
2.) ROPS cabin, double-layer thick cab, more strong and resistant
3.) adjusting steering wheel and adjusting seat, more comforable drive environment for driver
4.) All of our products passed the strict test before sale to customers
