• Model NO.：HH946
• Type：Medium-sized Loader
• Overall Weight：13200kg
• Rated Bucket Capacity：2.35 M3
• Maximum Tractive Force：124kn
• Maximum Breakout Force：118kn
• Maximum Grade Ability：30
• Maximum Dump Height：3176mm
• Maximum Dump Reach：1095mm
• Overall Dimension (L* W*H)：7670X2680X3375mm
• Minimum Turning Radius：6052mm
• Engine Model：Dongfeng Cummins 6BTA5.9-C180
• Transport Package：1 Unit Naked Within 1 X 40hq Container
• Specification：7670x2680x3375mm
• Trademark：CHHGC
• Origin：Shandong China
• HS Code：8601101100
• Production Capacity：6000 Units,Year






Performance
 1rated load4000kg2overall weight13200kg3rated bucket capacity2.35 m³4maximum tractive force124KN5maximum breakout force≥118KN6maximum grade ability30°7maximum dump height3176mm8maximum dump reach1095mm9overall dimension (L* W*H)7670x2680x3375mm10minimum turning radius6052mm

Engine
 11modelDongfeng Cummins 6BTA5.9-C18012TypeTurbocharged, water & air cooling13No. of cylinder-bore/stroke6-102x120mm14rated power132kw-2200r/min15maximum torque750N.m16min fuel-consume ratio≤212g/kw.h
Transmission
 17model4WG18018gear shift4 forward, 3 reverse.
Electronic control gear shift19maximum speed38km/h

Drive axle
 20main reducing spiralBevel gear grade 1 reduction21decelerating modePlanetary reduction, grade 1.22wheel base (mm)3067 mm23wheel tread1860mm24minimum ground clearance460mm
Hydraulic system
 25system working pressure18MPa26boom lifting time5.5+0.2s27total time9.8+0.2s28fuel tank capacity150L29function of leveling automaticallyYes
Brake system30service brakeAir over hydraulic disc brake on 4 wheels31parking brakeAir break control
Tyre32type specification20.5-25;16PR33front tyre pressure0.35Mpa34rear tyre pressure0.3Mpa
Optional:
(1) Quick-hitch
(2) Fork
(3) ROPS

Others:
(1) Packing: 1 unit naked within 1 x 40HQ container
(2) Delivery time: 30 ~ 40 days
(3) Guarantee Period: One year


Our Products


Features

1. The wheel loader uses the branded diesel engine as power, so it has the advantages of easy start, less oil consumption, strong power and environmental protection.

2. Using the dedicated engineering axles, the machine can make improvement for integral mechanical gearboxes, dual steering cylinders and so on, and can facilitate the operation.

3. The wheel loader uses the branded big-flow hydraulic pumps and steering gear. The hoisting arms, direction change and so on take less time and the work efficiency is greatly increased through its matching with the diesel engine.

4. With 24V battery (dual battery), the wheel loader will have an easy start in winter.

5. Its branded and high-quality rubber tire is far better for long-time operations in various environments.

6. The wheel loader employs the high-articulated structure (the distance between upper and lower hinge plates is short and the turning radius is small) to further stabilize the driving operation.

7. Featuring unique appearance, the cab of the wheel loader has a large operating space and wide vision so the machine achieves much safer operation.

8. The wheel loader has anoverhauled cover that is easy for maintenance.

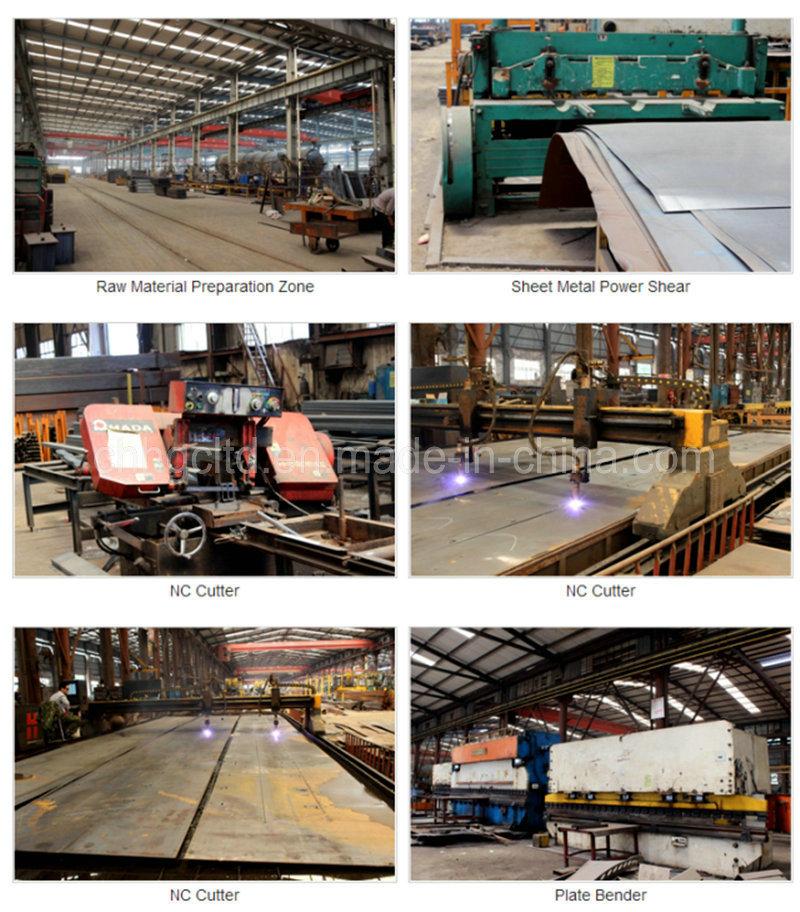

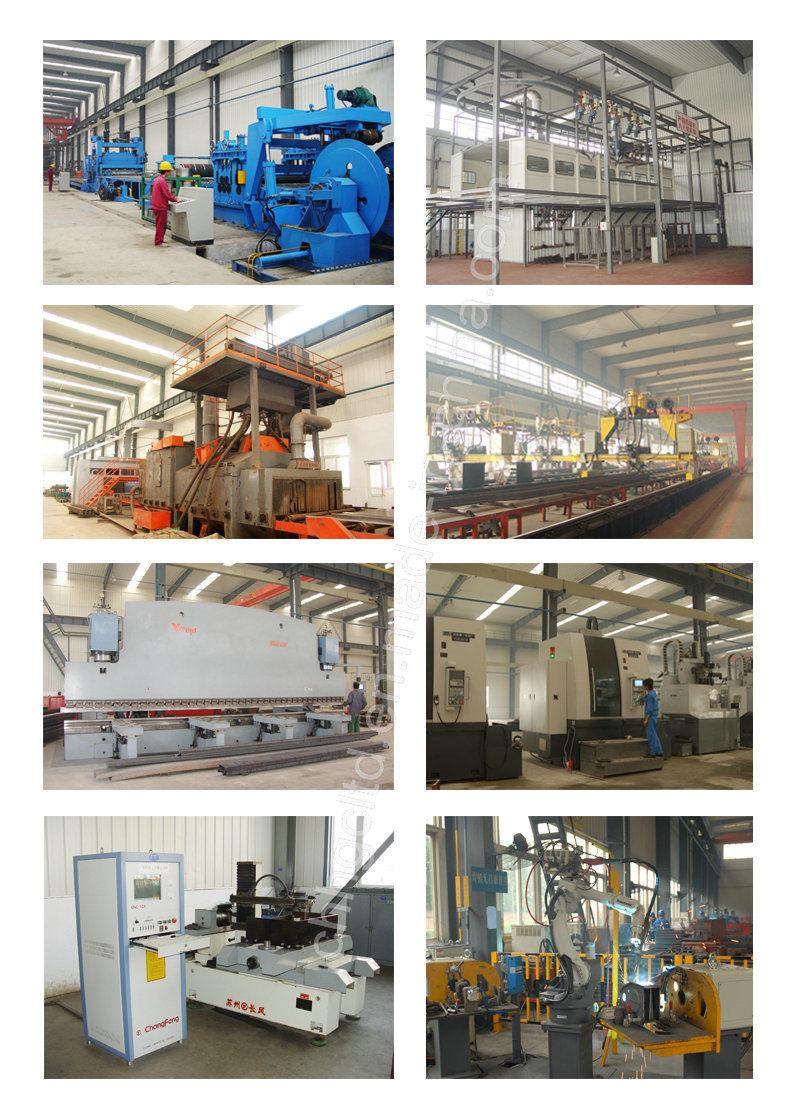

Workshop



Why us?

1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage invironment.
3)Unparalleled after sales service


Packaging and Shipping

1. All the wheel loaders will be made anti rust before shipment
2. Different shipping method for different situation, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking service


Our Services

1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available. OEM is welcome.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Do the best reliable heavy-duty earth-moving machinery in China.
7.Warranty period is 1-year or 2000 working hours against Bill of Lading.
8.ROPS cab


FAQ

1. How about the products range do you produce ?

We are specilized in producing wheel loaders cover 0.8ton to 5tons. Model: CHHGC608,CHHGC610,CHHGC620,CHHGC630,HH10,ect. producing forklift with 2tons, 3tons, 4tons, 5tons, load capacity.

2. Which brand engine do you have for ?

We company choose good quality engine for , Changchai, Xichai, Weichai Power engine / cummins engine / Deutz diesel engine and so on optional.

3. What advantages of your products and company?

1.)adjusting design are available from us, to adapt the market and using environment better, and help customers gain more competitions in your market.
2.) ROPS cabin, double-layer thick cab, more strong and resistant
3.) adjusting steering wheel and adjusting seat, more comforable drive environment for driver
4.) All of our products passed the strict test before sale to customers
