• Model NO.：DH17-C2
• Engine Power：162kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Ground Pressure (Kpa)：67.2
• Engine Model：Wp10
• Rated Power/Rated Speed (Kw/Rpm)：162,1900 (Heavy-Duty Mode) 141,1820 (Standard Mode
• Forward Speed (Km/H)：0-10
• Reversing Speed (Km/H)：0-10
• Center Distance：1880
• Width of Track Shoes (mm)：510,560,610
• Ground Length：2675mm
• Fuel Tank (L)：305
• Digging Depth (mm)：520
• Ripper Type：Three-Shank
• Ripping Depth (mm)：475
• Transport Package：Nude Package,RO-RO,Bulk Shipment,Suitable Containe
• Specification：5250*3420*3080
• Trademark：shantui
• Origin：China
• Production Capacity：300piece,Month

Basic Info.

Model NO. DH17-C2 Engine Power 162kw Certification CE, ISO9001: 2000 Condition New Color Yellow Ground Pressure (Kpa) 67.2 Engine Model Wp10 Rated Power/Rated Speed (Kw/Rpm) 162/1900 (Heavy-Duty Mode) 141/1820 (Standard Mode Forward Speed (Km/H) 0-10 Reversing Speed (Km/H) 0-10 Center Distance 1880 Width of Track Shoes (mm) 510/560/610 Ground Length 2675mm Fuel Tank (L) 305 Digging Depth (mm) 520 Ripper Type Three-Shank Ripping Depth (mm) 475 Transport Package Nude Package/RO-RO/Bulk Shipment/Suitable Containe Specification 5250*3420*3080 Trademark shantui Origin China Production Capacity 300piece/Month

Product Description

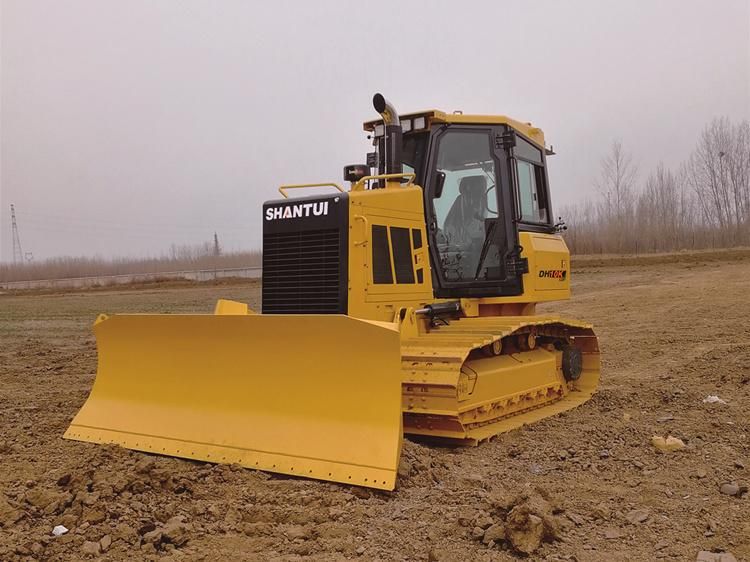

China Brand Shantui Bestseller Crawler Bulldozer Dh17-C2 with Factory Price


CHARACTERISTIC:

The electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring high intelligence and efficiency, high parts universality, and low maintenance cost.

The machine is provided with three working power modes at your choice depending on the specific load need under actual working condition to realize the reasonable match among power, efficiency, and power consumption. The unique one-touch boost mode can be used for escape from mud entrapment.



Drive system

The machine adopts double-circuit electronically controlled hydrostatic drive system to ensure good load self-adaptability, loaded and in-situ steering capability, stepless speed regulation, and high flexibility and efficiency and realize outstanding construction performance in narrow sites.

The chassis system features long ground length, high ground clearance, stable driving, and excellent trafficability. Depending on the specific working condition, the semi-U blade, straight tilting blade, environmental sanitation blade, and ripper can be installed to achieve high operating capability. The standard LED working lamps of higher illumination intensity improve the illumination capability during nighttime operations to achieve higher safety and reliability.

Driving/Riding Environment

The integral ergonomic hexahedral cab features large space, excellent vision, and good airtightness.

The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.

The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.

The integrally sealed shock-absorbing system of the cab features low vibrating noise and lowers the driver's parotic noise to 85dB.

The standard A/C and heating system, the intelligent display and control terminal with integrated instruments, cigarette lighter, USB charging port, radio, sun shade, and fire extinguisher are installed to provide more abundant personalized driving/riding experience and guarantee the comfortable and safe driving/riding environment.

The safety passage system of the machine guarantees the driver's safety.

Control system

The traveling is operated by single electronic control joystick and the working device is operated by single pilot joystick, featuring flexible, handy, and comfortable operations.

Electric system

The structural parts inherit the excellent quality of Shantui's mature products.

The electric harnesses adopt Leoni products and use seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.

The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.

The modular structure design of the machine features easy disassembling and assembling, simple repairs, low failure rate, and easy maintenances.

PARAMETER

Parameter name	DH17-C2 XL (Extended version)	DH17-C2 LGP(Super-wetland version)	DH17-C2 WH (Environmental sanitation version)	DH17-C2 DS (Desert version)	DH17-C2 RS (Rock version)	DH17-C2 FL (Forestry version)	DH17-C2 CH (Coal version)
Performance parameters
Operating weight (Kg)	18340 (With traction frame)/19241 (With ripper)	20200	20140	20600	19176	19985 (With traction frame)/21725 (With winch)	18700
Ground pressure (kPa)	67.2	31.2	31.1	43.3	58.75	55.5 (With traction frame)/60.7 (With winch)	57.3
Engine
Engine model	WP10	WP10	WP10	WP10	WP10	WP10	WP10
Rated power/rated speed (kW/rpm)	162/1900 (Heavy-duty mode) 141/1820 (Standard mode) 120/1750 (Light-duty mode)	162/1900 (Heavy-duty mode) 141/1820 (Standard mode) 120/1750 (Light-duty mode)	162/1900 (Heavy-duty mode) 141/1820 (Standard mode) 120/1750 (Light-duty mode)	162/1900 (Heavy-duty mode) 141/1820 (Standard mode) 120/1750 (Light-duty mode)	162/1900 (Heavy-duty mode) 141/1820 (Standard mode) 120/1750 (Light-duty mode)	162/1900 (Heavy-duty mode) 141/1820 (Standard mode) 120/1750 (Light-duty mode)	162/1900 (Heavy-duty mode) 141/1820 (Standard mode) 120/1750 (Light-duty mode)
Overall dimensions
Overall dimensions of machine (mm)	5250*3420*3080	5340*4150*3091	5586*4150*3091	5340*4150*3091	5250*3420*3080	6320*3438*3210	5250*3420*3080
Driving performance
Forward speed (km/h)	0~10	0~10	0~10	0~10	0~10	0~10	0~10
Reversing speed (km/h)	0~10	0~10	0~10	0~10	0~10	0~10	0~10
Chassis System
Center distance of track (mm)	1880	2350	2350	2350	1880	1880	1880
Width of track shoes (mm)	510/560/610	1100/950 (Swamp type)/900 (Single grouser)	1100/950 (Swamp type)	810 (Single grouser)/1100/950 (Swamp type)	610	610	610/510/560
Ground length(mm)	2675	2935	2935	2935	2675	2935	2675
Tank capacity
Fuel tank (L)	305	305	305	305	305	305	305
Working device
Blade type	Semi-U blade/straight tilting blade	Straight tilting blade	Sanitation blade	Straight tilting blade	Rock blade	Angle Blade	Coal blade
Digging depth (mm)	520	485	485	485	520	485	520
Ripper type	Three-shank	--	--	--	--	--	--
Ripping depth (mm)	475	--	--	--	--	--	--
