• Model NO.：DH08-B2
• Engine Power：70kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Operating Weight (Kg)：8780
• Ground Pressure (Kpa)：42.5
• Engine Model：Weichai Wp4g95221
• Rated Power/Rated Speed (Kw/Rpm)：70,2200
• Overall Dimensions of Machine (mm)：4298*2680*2724
• Forward Speed (Km/H)：0-9
• Reversing Speed (Km/H)：0-9
• Center Distance of Track (mm)：1650
• Width of Track Shoes (mm)：460
• Ground Length(mm)：2270
• Fuel Tank (L)：219
• Digging Depth (mm)：450
• Ripper Type：3 Shank
• Ripping Depth (mm)：340
• Transport Package：Nude Package,RO-RO,Bulk Shipment,Suitable Containe
• Specification：4298*2680*2724
• Trademark：shantui
• Origin：China
• Production Capacity：300piece,Month

Basic Info.

Model NO. DH08-B2 Engine Power 70kw Certification CE, ISO9001: 2000 Condition New Color Yellow Operating Weight (Kg) 8780 Ground Pressure (Kpa) 42.5 Engine Model Weichai Wp4g95221 Rated Power/Rated Speed (Kw/Rpm) 70/2200 Overall Dimensions of Machine (mm) 4298*2680*2724 Forward Speed (Km/H) 0-9 Reversing Speed (Km/H) 0-9 Center Distance of Track (mm) 1650 Width of Track Shoes (mm) 460 Ground Length(mm) 2270 Fuel Tank (L) 219 Digging Depth (mm) 450 Ripper Type 3 Shank Ripping Depth (mm) 340 Transport Package Nude Package/RO-RO/Bulk Shipment/Suitable Containe Specification 4298*2680*2724 Trademark shantui Origin China Production Capacity 300piece/Month

Product Description

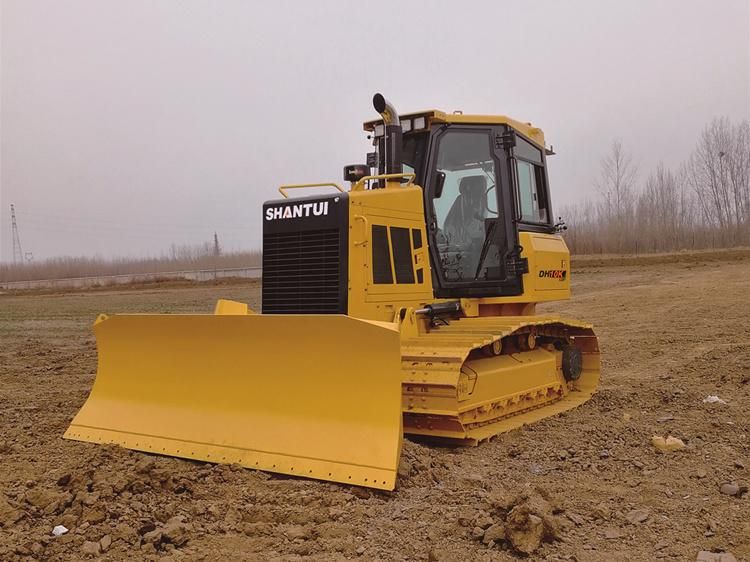

 Shantui 9Ton Bulldzer Dh08-B2 with Spare Parts Hot Selling


 Product Description:Power System

Weichai mechanical engine conforms to the China-II non-road machinery emission regulation, featuring high parts interchangeability and low maintenance cost.

The intelligent matching technology realizes the highest working efficiency and most reasonable fuel economy.

Control system

The double-module (Function and safety) controller architecture verifies with each other to achieve higher safety and reliability.

The malfunction self-diagnosis function is provided to accurately indicate the malfunction cause and orientation and shorten the downtime.

The service software with distinct access hierarchy features high simpleness and practicability and easy learning and understanding.

Driving/Riding Environment

The integral ergonomic hexahedral cab features large space, excellent vision, and good airtightness.

The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.

The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.

The standard canopy and the optional standard cab + heating and A/C system are provided. The cab adopts integrally sealed shock-absorbing system and sound-absorbing sponge to lower the driver's parotic noise to 85dB and realize low vibration and noise.

The intelligent display and control terminal with integrated instruments, cigarette lighter, USB charging port, radio, toolbox, sun shade, and fire extinguisher to provide more abundant personalized driving/riding experience and guarantee the comfortable and safe driving/riding environment.

The safety passage system of the machine guarantees the driver's safety.

Working adaptability

The machine adopts double-circuit electronically controlled hydrostatic drive system to ensure good load self-adaptability, loaded and in-situ steering capability, stepless speed regulation, and high flexibility and efficiency and realize outstanding construction performance in narrow sites.

The undercarriage system features long ground length, high ground clearance, stable driving, and excellent trafficability. The standard traction frame and the optional three-shank ripper are provided.

The standard LED working lamps of higher illumination intensity improve the illumination capability during nighttime operations to achieve higher safety and reliability.

Easy maintenances

The structural parts inherit the excellent quality of Shantui mature products.

The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.

The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.

The modular structure design of the machine features easy disassembling and assembling, simple repairs, low failure rate, and easy maintenances.


PARAMETER

Parameter name	DH08 B2 XL(Extended version)	DH08 B2 LGP(Super-wetland version)
Performance parameters
Operating weight (Kg)	8780	9092
Ground pressure (kPa)	42.5	33.1
Engine
Engine model	Weichai WP4G95221	Weichai WP4G95221
Rated power/rated speed (kW/rpm)	70/2200	70/2200
Overall dimensions
Overall dimensions of machine (mm)	4298*2680*2724	4298*3150*2724
Driving performance
Forward speed (km/h)	0~9	0~9
Reversing speed (km/h)	0~9	0~9
Chassis System
Center distance of track (mm)	1650	1790
Width of track shoes (mm)	460	610
Ground length(mm)	2270	2270
Tank capacity
Fuel tank (L)	219	219
Working device
Blade type	PAT	PAT
Digging depth (mm)	450	450
Ripper type	3 shank	3 shank
Ripping depth (mm)	340	340
