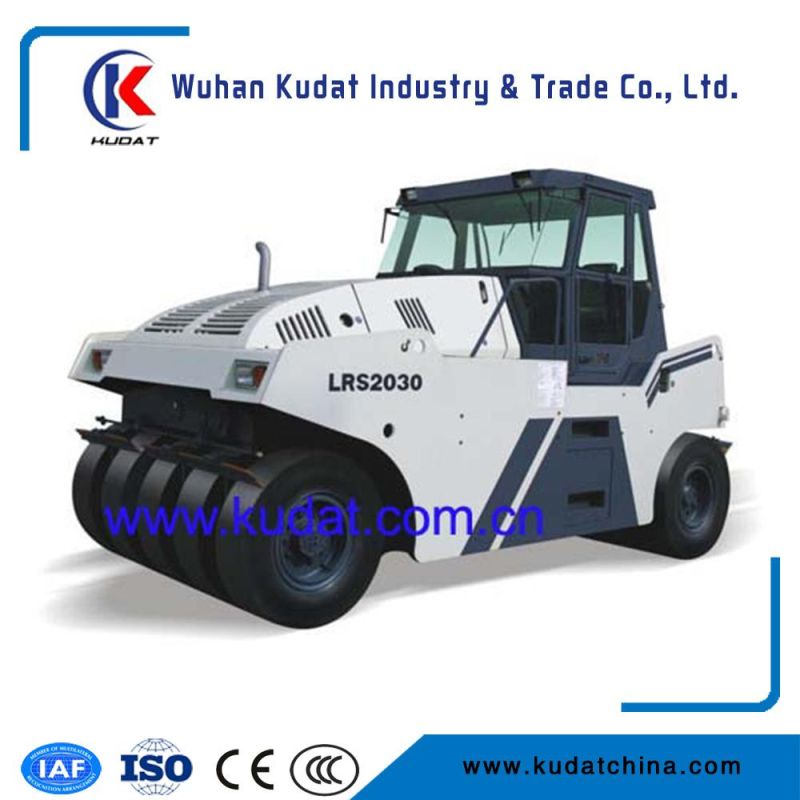

20/30ton Ce Approved Pneumatic Tire Road Roller

Wuhan Kudat Industry & Trade Co., Ltd.
  • Type：Road Roller
  • Working Method：Wheeled
  • Axle：Triaxial Three-Wheel
  • Grinding Wheel Type：Tire Grind
  • Compaction Depth：40cm
  • Engine Type：Diesel Engine

Base Info

  • Model NO.：LRS2030
  • Travel Speed：20.5km,H
  • Centrifugal Force：15KN
  • Certification：EPA, CS, CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Operating Mass：20000,30000tkg
  • Tallest Headway Speed：20.5km,H
  • Tire Quantity：5+6
  • Tire Contact Pressure：307~460tkpa
  • Turning Radius：8000mm
  • Rolling Width：2790mm
  • Wheel Overlap：40mm
  • Grade Ability：20%
  • Overall Dimension：4874*2790*3103mm
  • Wheelbase：3800mm
  • Transport Package：by Sea Required
  • Specification：CE
  • Trademark：kudat
  • Origin：China
  • HS Code：8429401900
  • Production Capacity：50, 000 PCS,Year

Description

ModelLRS2030LRS1626LRS1016Operating masskg20000/3000016000/2600010000/16000Tallest headway speedkm/h20.520.514.0Tire quantity 5+65+64+5Tire contact pressurekPa307~460250~420150~300Turning radiusmm800080007500Rolling widthmm279027902286Wheel overlapmm404040Grade ability%202020Overall Dimensionmm4874×2790×31034874×2790×31034770×2290×3100Wheelbasemm380038003630Engine Type Cummins 6BTA5.9Cummins 4BT3.9Diesel powerkW12711075Rotational speedr/min220023002400      20/30ton Ce Approved Pneumatic Tire Road Roller
