Small Mini Diesel Concrete Trailer Pump Building Construction Tools and Equipment for Building and Road Project in Philippines Thailand Russia New Zealand
HENAN SHENGMAO MACHINERY CO., LTD.- Type:Concrete Pump
- Shotcrete Type:Wet
- Productivity:90m²,h
- Certification:ISO9001: 2000, CE
- Condition:New
- Max. Delivery Capacity (L/H) (M 3 /H):95,55
Base Info
- Model NO.:HBTS90R
- Main Hydraulic Pump Brand:Flutek Kawasaki
- Max. Pumping Pressure (L/H) (MPa):9.3,18
- Delivery Pipe Diameter (mm):125
- Diesel Engine Brand:Weichai
- Diesel Engine Power (Kw):176
- Max. Delivery Distance (V/H) (M):360,1200
- Max. Aggregate Diameter (mm):50
- Total Weight (Kg):8200
- Transport Package:Container Transportation
- Specification:6000*2200* 2250
- Trademark:shengmao
- Origin:China
- HS Code:8413400000
- Production Capacity:100sets,Year
Description
Basic Info.
Model NO. HBTS90R Main Hydraulic Pump Brand Flutek Kawasaki Max. Pumping Pressure (L/H) (MPa) 9.3/18 Delivery Pipe Diameter (mm) 125 Diesel Engine Brand Weichai Diesel Engine Power (Kw) 176 Max. Delivery Distance (V/H) (M) 360/1200 Max. Aggregate Diameter (mm) 50 Total Weight (Kg) 8200 Transport Package Container Transportation Specification 6000*2200* 2250 Trademark shengmao Origin China HS Code 8413400000 Production Capacity 100sets/YearProduct Description
Product descriptionConcrete pump is used to deliver concrete to the job site above ground or underground, such as high-rise buildings or tunnel construction. Our concrete pump can deliver concrete to about 200 meters in height and 300 meters in length.
We use world-famous brand for the main parts of our concrete pump which can ensure the performance of the machine. Such as the Korean Kawasaki oil pump, Italy Manuli hydraulic hose, Japanese OMRON PLC, USA Parket seal, France Schneider electrical elements, etc.
All our concrete pumps are equipped with wheels and remote control, it is very easy to operate and move to other job sites.
Currently, we have 30m3/h to 90m3/h electricity powered or diesel-powered concrete pump for you to choose. Welcome to contact us for details and quotations.

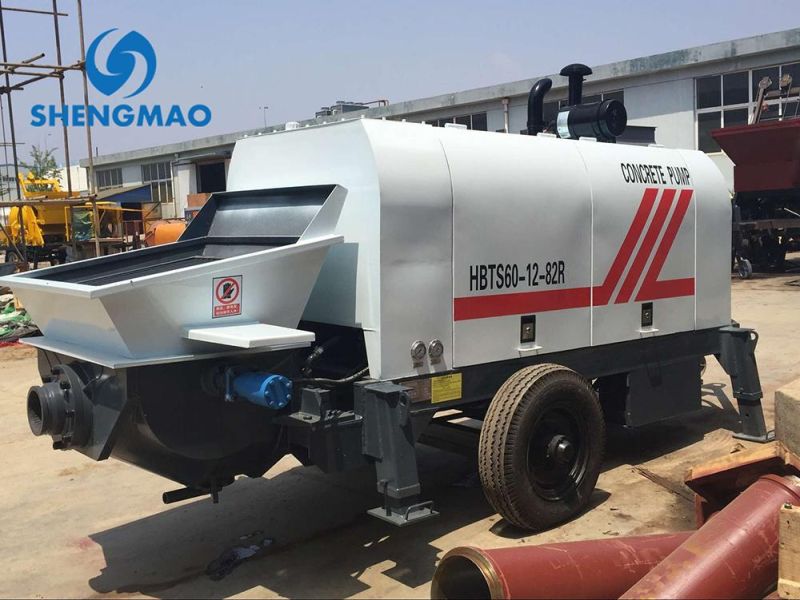

Concrete Pump Diesel Type
Model | HBTS40R | HBTS60R | HBTS80R | HBTS90R |
Max.Dlivery Capacity(L/H)(m3/h) | 40/26 | 61/37 | 84/45 | 95/55 |
Main Hydraulic Pump Brand | Flutek Kawasaki | Flutek Kawasaki | Flutek Kawasaki | Flutek Kawasaki |
Max.Pumping pressure(L/H)(MPa) | 7.6/10 | 7/12 | 7.6/16 | 9.3/18 |
Delivery Pipe Diameter(mm) | 125 | 125 | 125 | 125 |
Diesel Engine Brand | Weichai | Weichai | Weichai | Weichai |
Diesel Engine Power(KW) | 82 | 129 | 140 | 176 |
Max.Dlivery Distance(V/H)(m) | 120/500 | 120/500 | 160/800 | 360/1200 |
Max.aggregate Diameter(mm) | 40 | 40 | 50 | 50 |
Overall Size(mm) | 5000*1850*1700 | 4820*1750*1770 | 6000*2160*2600 | 6000*2200*2250 |
Total Weight(kg) | 5500 | 7200 | 7700 | 8200 |
model | HBTS40 | HBTS50 | HBTS60 | HBTS80 |
Max.Dlivery Capacity(L/H)(m3/h) | 40/23 | 62/27 | 82/48 | 101/61 |
Main Hydraulic Pump Brand | Flutek Kawasaki | Flutek Kawasaki | Flutek Kawasaki | Flutek Kawasaki |
Max.Pumping pressure(L/H)(MPa) | 7.6/10 | 7.3/12 | 7/13 | 8.3/16 |
Delivery Pipe Diameter(mm) | 125 | 125 | 125 | 125 |
Motor Brand | Weihai wendeng | Weihai wendeng | Weihai wendeng | Weihai wendeng |
Motor Power(KW) | 45 | 55 | 90 | 110 |
Max.Dlivery Distance(V/H)(m) | 120/500 | 120/500 | 160/800 | 160/800 |
Max.Aggregate Diameter(mm) | 40 | 40 | 50 | 50 |
Overall Size(mm) | 4500*1750*1600 | 5200*2000*2260 | 5900*2000*2260 | 6000*2100*2250 |
Total Weight(kg) | 4700 | 5500 | 7200 | 7700 |

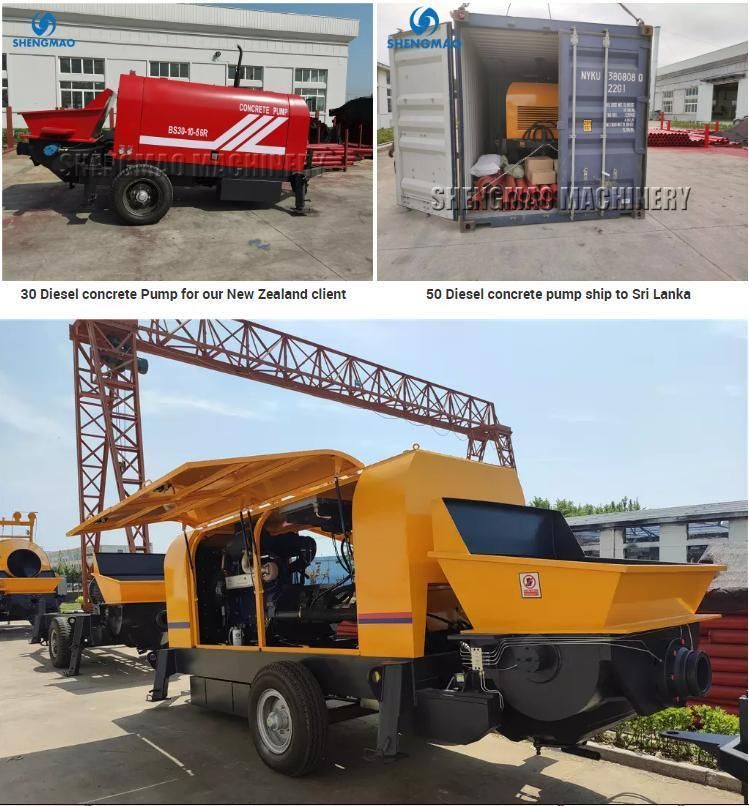

Our Clients
Our Service
Pre-sale Service
1 Answering customers' questions, helping customers choose the most suitable machines;
2.Making design drawings as per customers' requirements;
3. Providing quotations.
In-sale Service
1. Strictly control all prodedures from raw materials sourcing to pre-assembly to ensure product quality;
2. Regularly updating production production progress to clients;
3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;

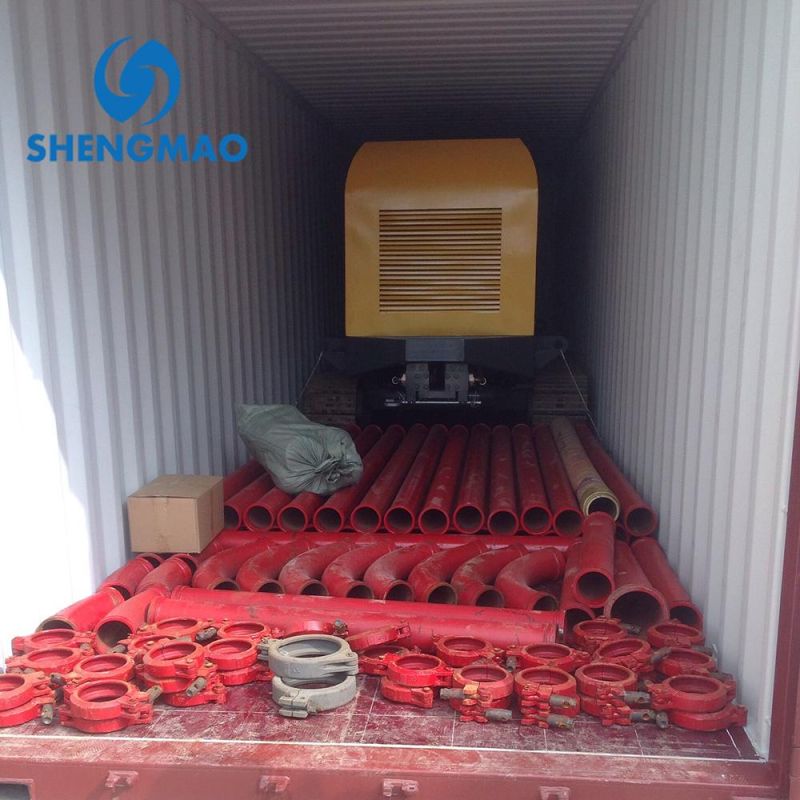

4. Proper packing to minimize the risk that the machines are damaged during transportation;
5. Foundation drawing will be provided for clients to make foundation in advance.
After-sale Service
1. Providing 7 * 24 hours online after-sales service every week
2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Arranging engineers to go to client's job site. The engineers will help clients with the machine installation, machine
test-running and operators training etc.
4. Spare parts supply;
5. Job site visiting every year.
