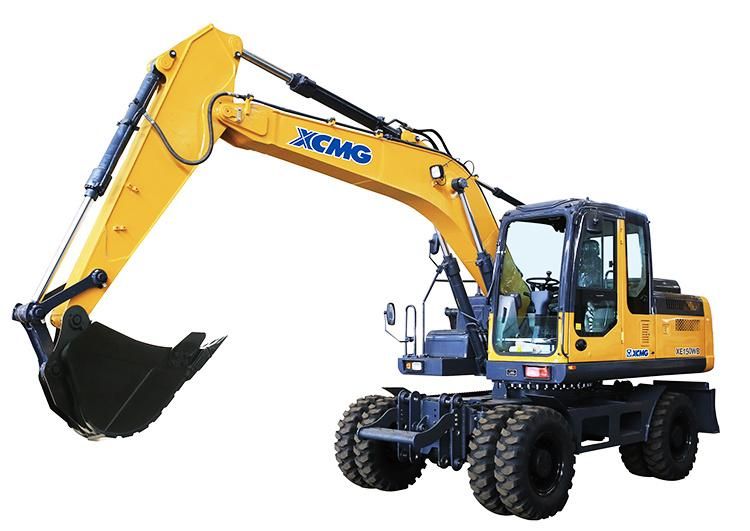

XCMG Xe150W 15ton Wheel Excavator (More Models for Sale)
Xuzhou Construction Machinery Group Co., Ltd.- Type：Wheel Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
- Drive Type：Electric Drive
- Bucket Capacity：>1.5m³
Base Info
- Model NO.：XE150W
- Size：Large-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Transport Package：Comply with Export Packaging Requirements
- Specification：ISO
- Trademark：XCMG
- Origin：Xuzhou, Jiangsu, China
- HS Code：87059091
- Production Capacity：1000,Year
Description
Overview
Product Parameters Unit Parameters Operating weight Kg 15318 Bucket capacity M³ 0.58 Engine model / QSB4.5 Engine Output power of engine Kw/r/min 104/2000 Max.torque/engine N.m 586 Displacement L 4.5 Fuel tank capacity L 250 Rated flow of main pump L/min 2x160 Pressure of main safety valve Mpa 31.4/34.3 performance parameter Hydraulic tank capacity L 135 Slewing speed r/min 13.7 Digging capacity of tcuket KN 60 Digging capacity of tcuket rod KN 65 Min.turning radius mm 6500 Travel speed Km/h Gradient capability % 70 A Total length mm 6482 B Total width mm 2552 C Total heigth mm 3158 Working scope Counterweight ground clearance mm 1230 Min.ground clearance mm 359 Min.tail swing radius mm 2300 Wheelbase mm 2800 Track gauge mm 1920 Total width of chassis mm 2495 Distance between front axle and turning center mm 1700 Hood height mm 2430 The maximum digging depth of dozer mm 112 Dozer (width / height) mm 2495x564 A Max.digging height mm 8296 Working scope B Max.unloading height mm 8085 C Max.digging depth mm 9150 D Digging depth at the range of 8feets horizontally mm 6684 E Max.vertical digging depth mm 5040 F Max.digging radius mm 4825 G Max.swing height mm 515
Company Profile
FAQ
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
Company Profile
FAQ1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
