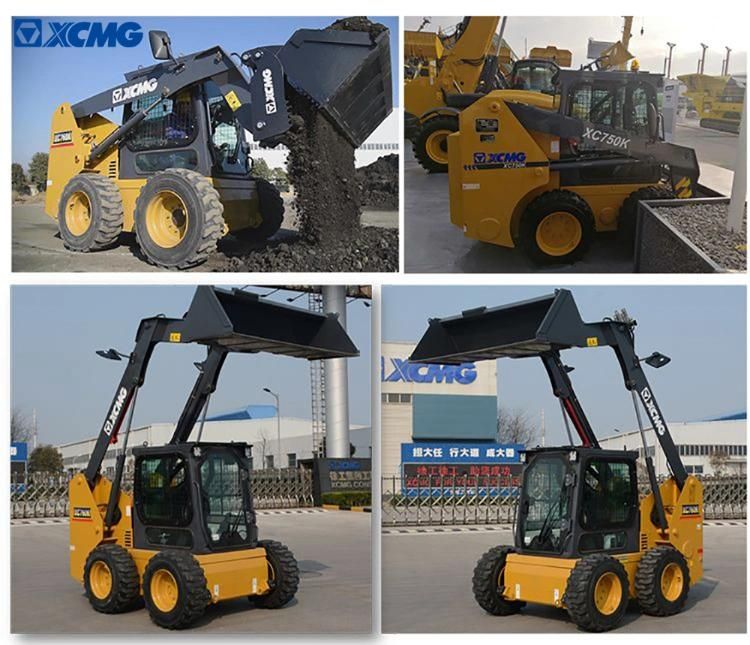

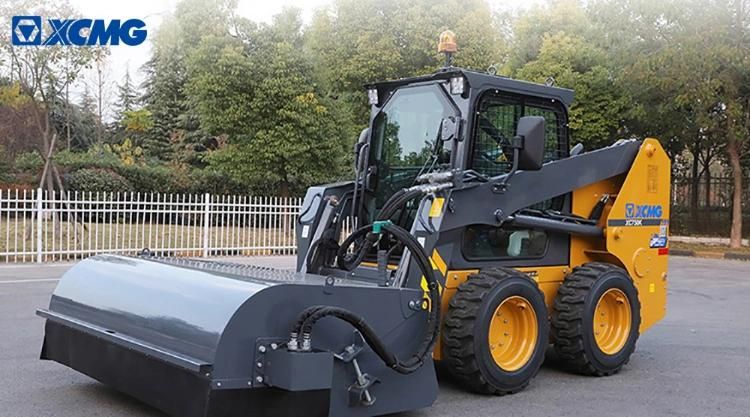

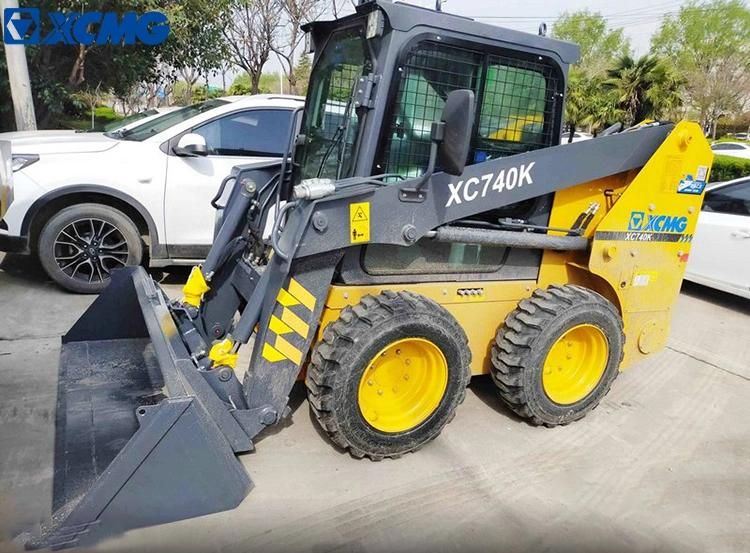

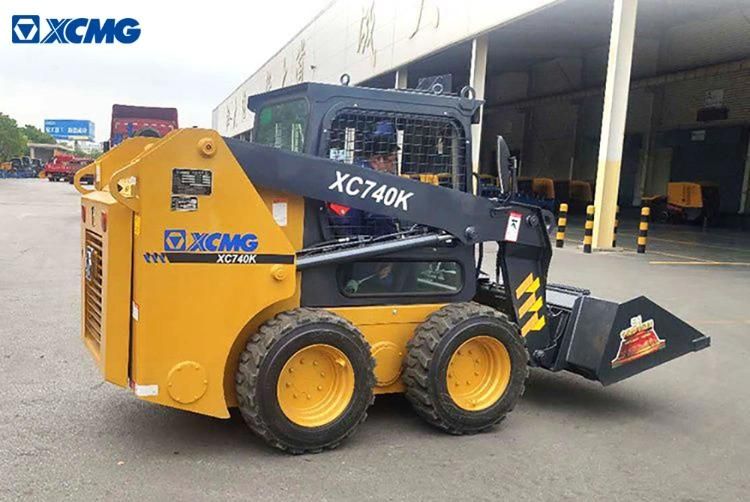

XCMG Multi-Function Mini Skid Steer Loader Xc740K Chinese Brand Skidsteer Loader with Attachment for Sale
XCMG E-Commerce Inc.- Warranty：1 Year
- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Rated Load：750kg
- Transmission：Power
- Walking Mode：Wheeled
Base Info
- Model NO.：XC740K
- Type：Small Loader
- Power：36.8kw
- Engine Brand：Xinchai
- Machine Weight：3140kg
- Bucket Capacity：0.35m3
- Rated Speed：2500rpm
- Maximum Speed：14km,H
- Transport Package：Comply with Export Packaging Requirements
- Specification：3270*1807*1970 mm
- Trademark：XCMG
- Origin：Xuzhou, Jiangsu
- Production Capacity：1000 Unit,Units Per Year
Description
Overview
Product Parameters DescriptionUnit Parameter value Rated load kg 750 Tipping load kg 1500 Operating weight kg 3140 Maximum breakout force kN 18 Engine Manufacturer Xinchai Model 4D27G31 Rated power Hp/kw 49.3/36.8 Rated speed rpm 2500 Cooling mode Water-cooling Performance parameter Operation mode Mechanical & multi-function electronic control Tire standard 10-16.5 Maximum speed Km/h 14 Hydraulic system Hydraulic flow rate L/min 62.5 Optional large flow -- Hydraulic pressure bar 200 Maximum operating height mm 3878 Bucket hinge pin height mm 3057 Cabin top height mm 1960 Maximum horizontal height of bucket bottom mm 2851 Length without bucket mm 2533 Length with bucket mm 3310 Toppling angle ° 40 Maximum unloading height mm 2375 Ground-bucket angle ° 30 Rotating angle of bucket at highest point ° 83 Unloading distance mm 575 Wheel base mm 1027 Departure angle ° 25 Ground clearance mm 183 Front radius of turning circle (without bucket ) mm 1183 Front radius of turning circle (with bucket) mm 2066 Rear radius of turning circle mm 1564 Length of tail mm 1005 Wheel track mm 1380 Tire edge width mm 1640 Bucket edge width mm 1800 Bucket capacity (stacking height) m³ 0.45 Bucket capacity (tiling) m³ 0.35 Diesel tank capacity L 80 Capacity of hydraulic oil tank L 60

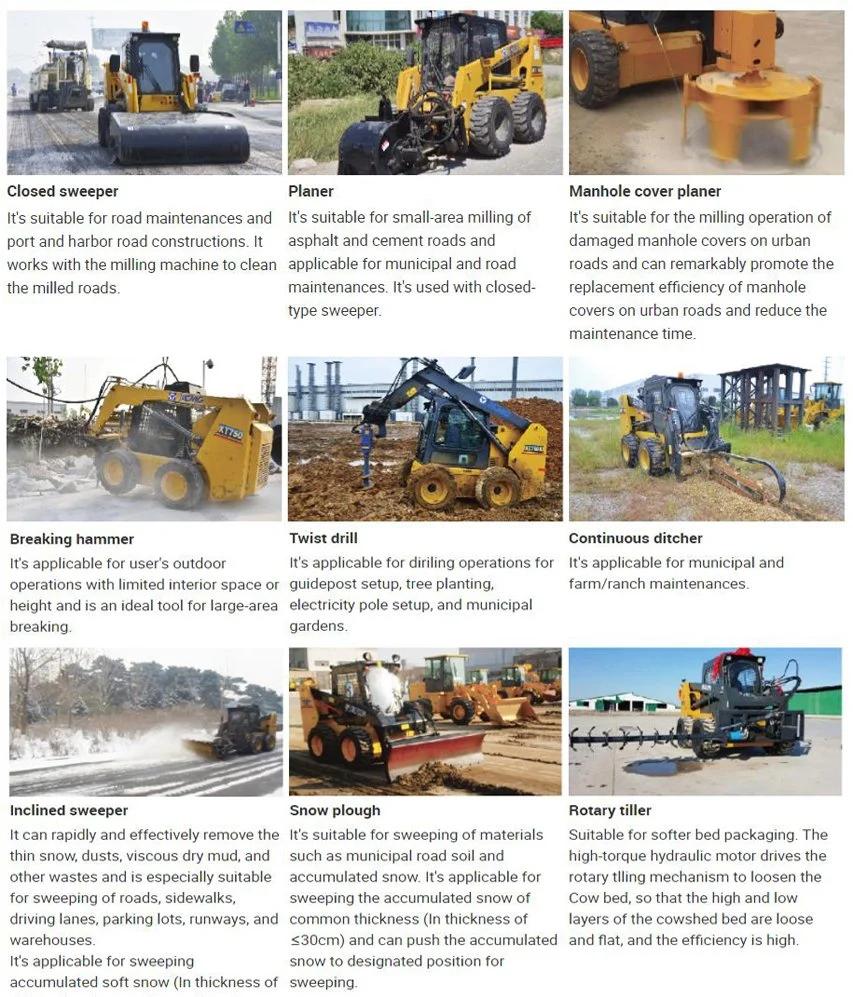

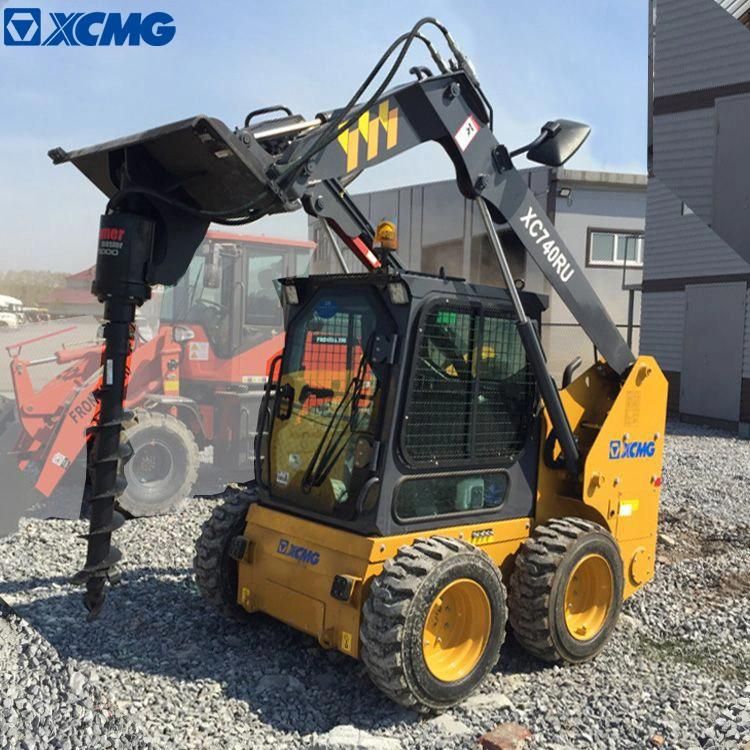

Multi-function Machine
