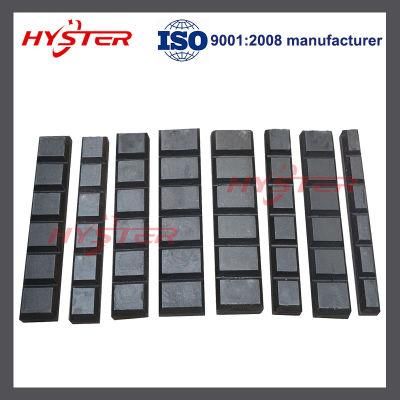

Laminated White Iron Chock Block Duablocks
Hunan Hyster Material Technology Co., Ltd.
- Type：Excavator Bucket
- Application：Excavator
- Certification：ISO9001: 2000
- Condition：New
- Name：White Iron Chockblock
- Rockwell Hardness：63HRC
- Model NO.：CB40, CB50, CB100, WB90, WB75
- Hardness：700bhn
- Technology：Vacuum Brazing
- Transport Package：Oli Film, Poly-Wood Crate, Pallets
- Specification：SGS
- Trademark：HYSTER, DOMITE, OEM
- Origin：China Hunan
- HS Code：84314991
- Production Capacity：80tons,Month
| ITEM | SIZE(MM) | LENGTH | WIDTH | WEAR THICKNESS | BASE THICKNESS | N.W.(KG) |
| CB25 | 240x25x23 | 240 | 25 | 15 | 8 | 0.9 |
| CB40 | 240x40x23 | 240 | 40 | 15 | 8 | 1.5 |
| CB50 | 240x50x23 | 240 | 50 | 15 | 8 | 1.9 |
| CB65 | 240x65x23 | 240 | 65 | 15 | 8 | 2.5 |
| CB80 | 240x80x23 | 240 | 80 | 15 | 8 | 3.2 |
| CB90 | 240x90x23 | 240 | 90 | 15 | 8 | 3.5 |
| CB100 | 240x100x23 | 240 | 100 | 15 | 8 | 3.9 |
| CB130 | 240x130x23 | 240 | 130 | 15 | 8 | 5.4 |
| CB150 | 240x150x23 | 240 | 150 | 15 | 8 | 7.3 |
| ITEM | SIZE(MM) | LENGTH | WIDTH | WEAR THICKNESS | BASE THICKNESS | N.W.(kg) |
| DLP 919 | 200x25x25 | 200 | 25 | 15 | 10 | 1.0 |
| DLP 920 | 200x75x75 | 200 | 75 | 63 | 12 | 8.9 |
| DLP 4 | 300x38x33 | 300 | 38 | 25 | 8 | 8.9 |
| DLP 1191 | 300x25x25 | 300 | 25 | 15 | 10 | 1.5 |
| DLP 1192 | 300x150x60 | 300 | 150 | 48 | 12 | 21.1 |
| DLP 295 | 153x50x33 | 153 | 50 | 25 | 8 | 1.5 |
| DLP 2265 | 115x50x50 | 115 | 50 | 38 | 12 | 2.3 |
| DLP 1101 | 150x50x50 | 150 | 50 | 40 | 10 | 2.9 |
| DLP 369 | 210x50x50 | 210 | 50 | 38 | 12 | 4.1 |
| DLP 125 | 230x50x50 | 230 | 50 | 38 | 12 | 4.5 |
| DLP 453 | 294x50x50 | 294 | 50 | 40 | 10 | 5.8 |
| DLP 201A | 432x50x50 | 432 | 50 | 38 | 12 | 8.5 |
| DLP 202 | 459x38x31 | 459 | 38 | 25 | 6 | 4.2 |
| DLP 184 | 150x75x39 | 150 | 75 | 29 | 10 | 3.4 |
| DLP 619 | 150x75x60 | 150 | 75 | 50 | 10 | 5.3 |
| DLP 337 | 127x50x50 | 127 | 50 | 38 | 12 | 2.4 |
3) Shaped wear bars 4) Wear buttons& donuts(WB60, WB75, WB90, WB110, WB115, WB150, DLP1920, DLP1921, DLP1994, DLP2196)| ITEM | SIZE(MM) | DIAMETER | WEAR THICKNESS | BASE THICKNESS | N.W.(KG) |
| WB 60 | 60x27 | 60 | 17 | 10 | 0.7 |
| WB 75 | 75x27 | 75 | 17 | 10 | 0.8 |
| WB 90 | 90x27 | 90 | 17 | 10 | 1.4 |
| WB 110 | 110x32 | 110 | 20 | 12 | 2.1 |
| WB 115 | 115x32 | 115 | 20 | 12 | 2.5 |
| WB 150 | 150x41 | 150 | 25 | 16 | 5.7 |
| ITEM | SIZE(MM) | DIAMETER | WEAR THICKNESS | BASE THICKNESS | N.W.(KG) |
| DLP 1920 | 75x25 | 75 | 17 | 8 | 0.7 |
| DLP 1920 | 100x50 | 100 | 17 | 8 | 1.0 |
| DLP 1994 | 100x70 | 100 | 24 | 8 | 1.0 |
| DLP 2196 | 130x80 | 130 | 15 | 8 | 1.3 |
| DLP 4471 | 148x108 | 148 | 25 | 10 | 2.2 |
5) Shredder/Grinder hammer tips (DLP1654,90X90X50mm; DLP653,90X90X45mm; DLP1927, 90X90X55mm)| ITEM | TYPE | DIMENSION(MM) | N.W.(KG) |
| DLP 1340 | flat | 80x56x45 | 1.6 |
| DLP 1052 | flat | 80x80x45 | 2.4 |
| DLP 920 | flat | 90x50x45 | 1.6 |
| DLP 653 | flat | 90x90x45 | 2.9 |
| DLP 1654 | V type | 90x90x50 | 3.0 |
| DLP 1927 | U type | 90x90x55 | 3.1 |
6) Bi-metallic wear plates 7) Knife edges(DLP1065-22, 203X22X50MM; DLP1265-22,305X22X50MM; DLP1065A-16, 203x16x50mm, DLP1065A-25, 203x25x62mm; DLP1265A-25, 305x25x56mm) 8) Skid bars, skid blocks(DLP412, 250x150x45mm; DLP413, 200x150x45mm; DLP414, 250x250x45mm) 9) Elbow wear blocks 10) Other sizes and shapes 11) Multi-function gradient cutter tooth 12) Rockbox liners 13) Micro-ledgesApplications:
