Fully Hydraulic Vibrating Roller 28 Ton Lsd228h

Wuhan Kudat Industry & Trade Co., Ltd.
  • Type：Road Roller
  • Working Method：Wheeled
  • Axle：Biaxial Dual-Drum
  • Grinding Wheel Type：Slot Grind
  • Compaction Depth：40cm
  • Engine Type：Diesel Engine

Base Info

  • Model NO.：LSD228H
  • Certification：ISO 9001:2000, ISO 9001:2008
  • Operating Mass：28000
  • Static Linear Load：830n,Cm
  • Vibration Amplitude：2.0,1.0mm
  • Vibration Frequency：28,35Hz
  • Max. Travel Speed：9km,H
  • Grade Ability：45%
  • Turning Radius：7500mm
  • Drum Width：2130mm
  • Wheelbase：3500mm
  • Ground Clearance：470mm
  • Transport Package：by Sea Required
  • Specification：ISO
  • Trademark：kudat
  • Origin：Hubei
  • Production Capacity：50, 000 PCS,Year

Description

TypeLSD228HLSD226HLSD222HOperating masskg280002600022000Static linear loadN/cm830736645Vibration amplitudemm 2.0/1.02.0/1.02.0/1.0Vibration frequencyHz28/3528/3528/35Centrifugal forcekN440/360420/340400/320Max. Travel speedkm/h9911.2Grade ability%454545Turning radiusmm 750075007000Drum widthmm213021302130Wheelbasemm 350035003148Ground clearancemm470470472Diesel model Cummins 6CTA8.3Cummins 6CTA8.3Cummins 6CTA8.3Diesel powerKW160160160Overall dimensionmm6540× 2392× 30486540× 2392× 30486005× 2360× 2993

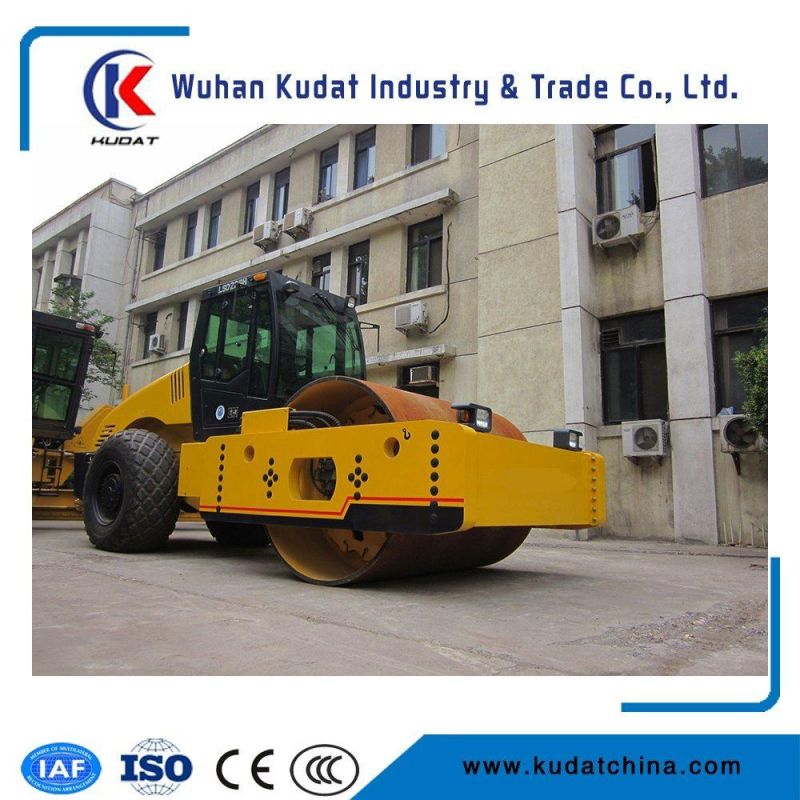

Fully Hydraulic Vibrating Roller 28 Ton Lsd228h

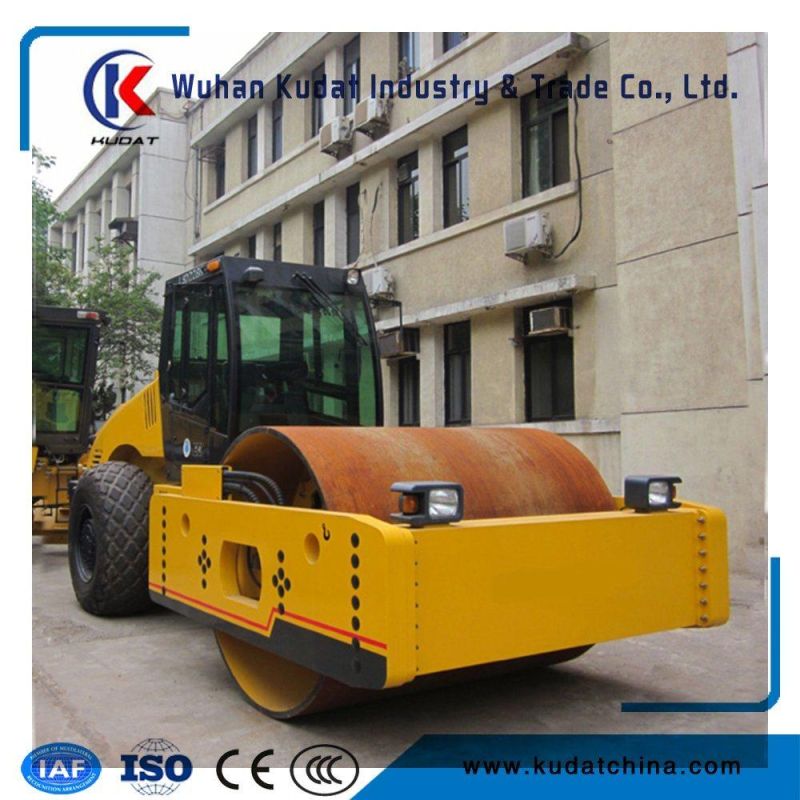

Fully Hydraulic Vibrating Roller 28 Ton Lsd228h
