• Model NO.：Xs143j
• Travel Speed：30cm,s
• Certification：ISO 9001:2000
• Condition：New
• Operating Weight(Kg)：14000
• Weight on Front Drum(Kg)：7000
• Static Linear Pressure(N/Cm)：322
• Speed Range (Km/H) Speed I：2.7
• Speed Range (Km/H) Speed II：4.8
• Speed III：10.5
• Theoretical Gradeability(mm)：30
• Min. External Turning Radius(mm)：6800
• Vibration Frequency(Hz)：28
• Engine Model：Sc4h140.1g2
• Max. Power(Kw)：103@1800r,Min
• Transport Package：Nude Packing
• Specification：6150*2300*3200mm
• Origin：Jiangsu, China
• HS Code：84294019
• Production Capacity：1000,PCS

Basic Info.

Model NO. Xs143j Travel Speed 30cm/s Certification ISO 9001:2000 Condition New Operating Weight(Kg) 14000 Weight on Front Drum(Kg) 7000 Static Linear Pressure(N/Cm) 322 Speed Range (Km/H) Speed I 2.7 Speed Range (Km/H) Speed II 4.8 Speed III 10.5 Theoretical Gradeability(mm) 30 Min. External Turning Radius(mm) 6800 Vibration Frequency(Hz) 28 Engine Model Sc4h140.1g2 Max. Power(Kw) 103@1800r/Min Transport Package Nude Packing Specification 6150*2300*3200mm Origin Jiangsu, China HS Code 84294019 Production Capacity 1000/PCS

Product Description

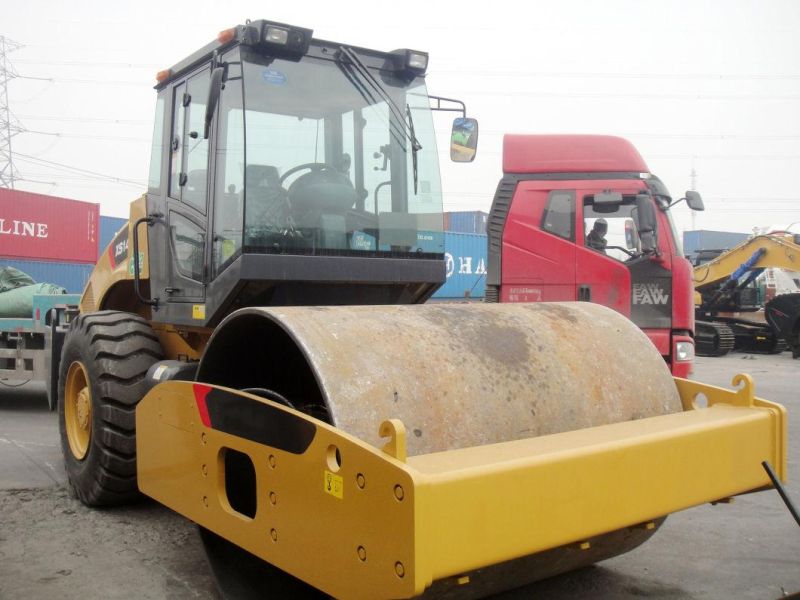

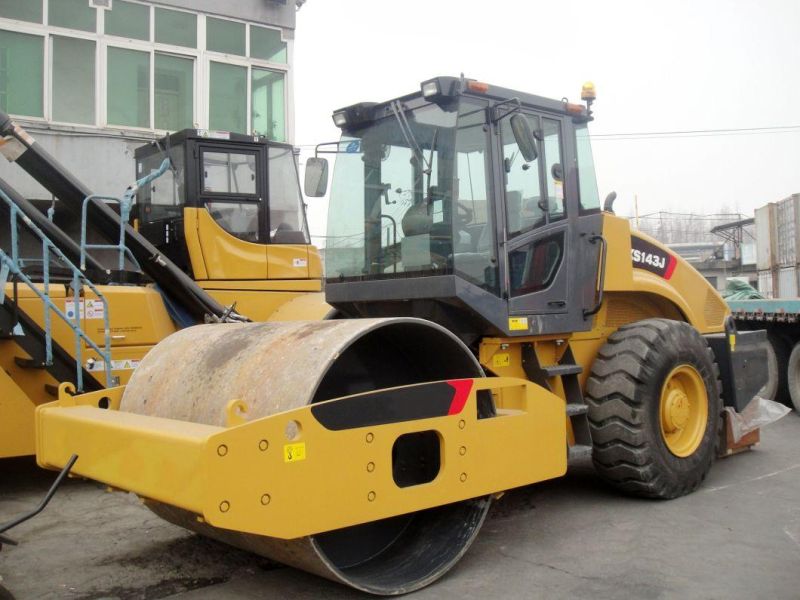

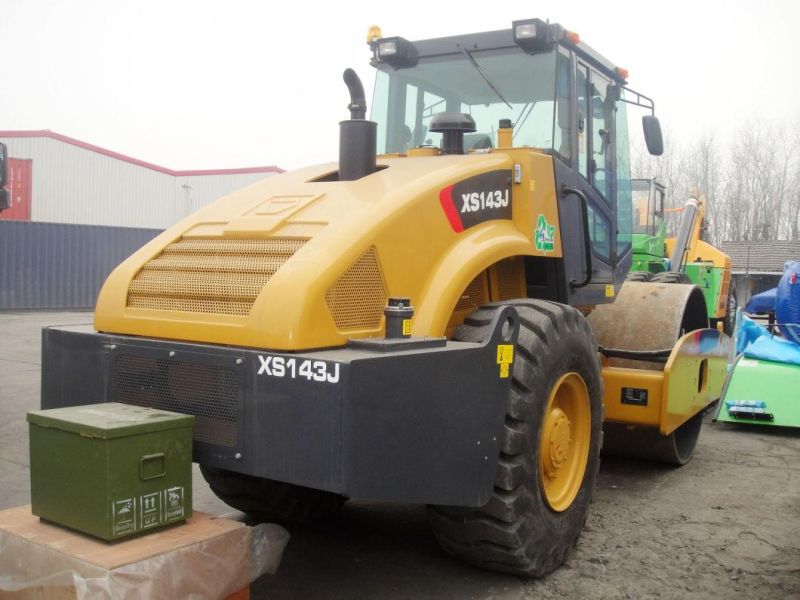

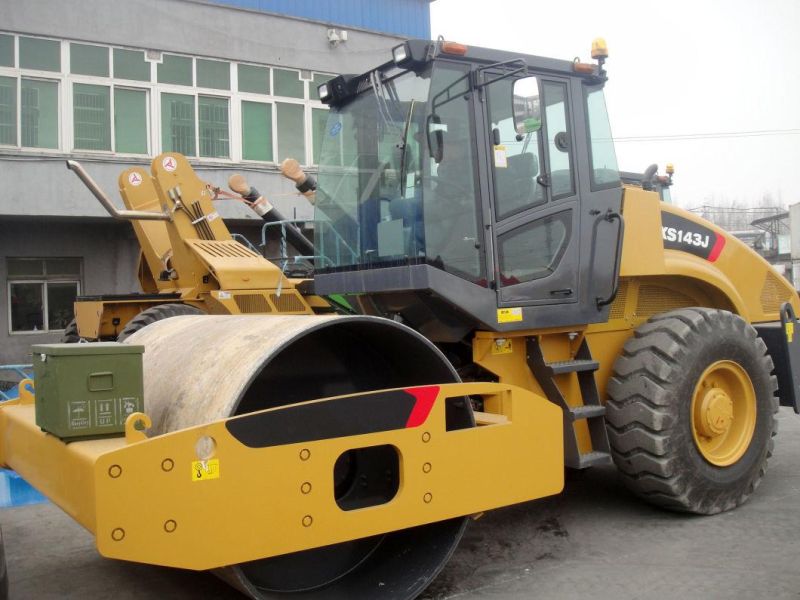

14 Tons Mechanical Drive Single Drum Road Roller Mini Vibratory Road Roller Compactor Xs143j

XS143J Single drum vibratory roller has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc. and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects.

It is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.

Performance Characteristics:

1. Use the H-series, water- cooling, four cylinder four-stroke, direct injection turbo charged and air-air intercooling low-speed diesel engine. This kind of diesel engine has a large power reserve and has the function of energy saving and noise reduction.

2. Rear drum hydraulic drive, adopt closed hydraulic drive system composed of variable displacement piston pump and piston motor to ensure better drive performance and gradeability.

3. Main clutch uses the heavy-duty special clutch which is the dry type normally combined friction clutch with a reliable performance and good maintainability.

4. Double frequency and double amplitude can meet the requirements of different working conditions; Guarantee the demand of vibration parameter and reliability of vibration system.

5. Optimized vibration drum structure and vibration parameters to guarantee smoother compaction surface and higher compaction efficiency.

Technical Specification:


Model	XS143J
Operating weight(KG)	14000
Weight on front drum(KG)	7000
Static linear pressure(N/cm)	322
Speed range (km/h)
Speed I	2.7
Speed II	4.8
Speed III	10.5
Theoretical gradeability(mm)	30
Min. external turning radius(mm)	6800
Steering angle(°)	±30
Oscillating angle(°)	±11
Vibration frequency(Hz)	28
Nominal amplitude (high/low)(mm)	1.9/0.95
Excitation force (high/low amplitude)(kN)	274/137
Engine model	SC4H140.1G2
Type	Water cooled, pressurized
Max. power(kW)	103@1800r/min
Outside dimensions(mm)	6150×2300×3200
