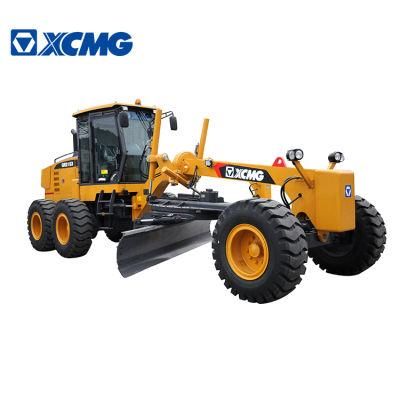

• Model NO.：GR215
• Warranty：1 Year
• Engine Brand：Top Brand
• Forward Speed(Km/H)：38
• Reverse Speed(Km/H)：23
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000 Unit,Units Per Year

ItemGR215Basic parametersEngine model6CTA8.3-C215Rated power/speed160kW/2200rpmOverall dimension (standard)8970x2625x3420Total weight (standard)16500 kgTire specification17.5-25Ground clearance (front axle)430mmSpace of front and rear axles6219 mmSpace of middle and rear wheels1538 mmPerformance

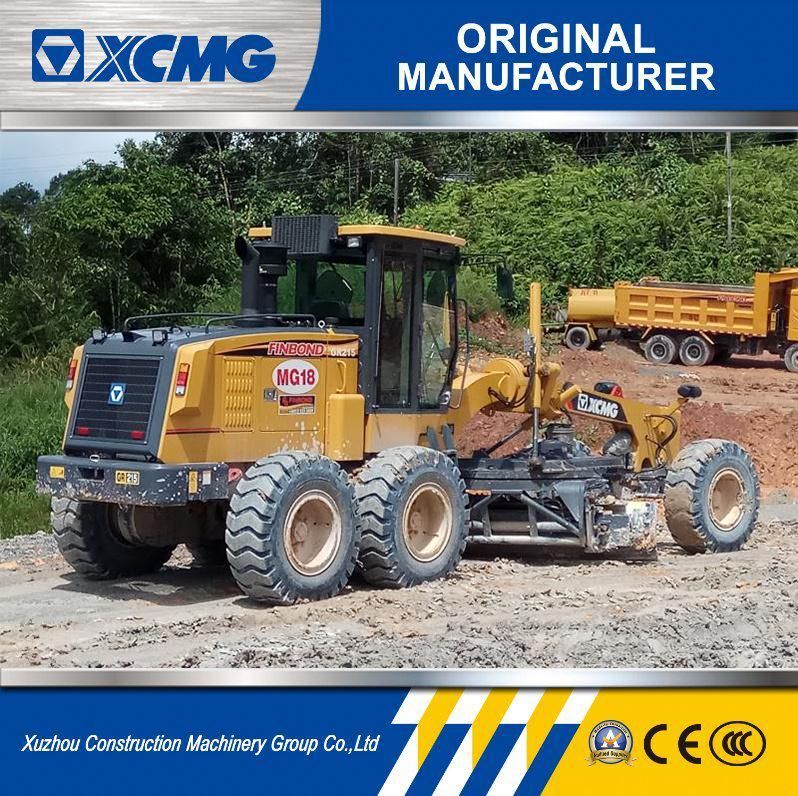

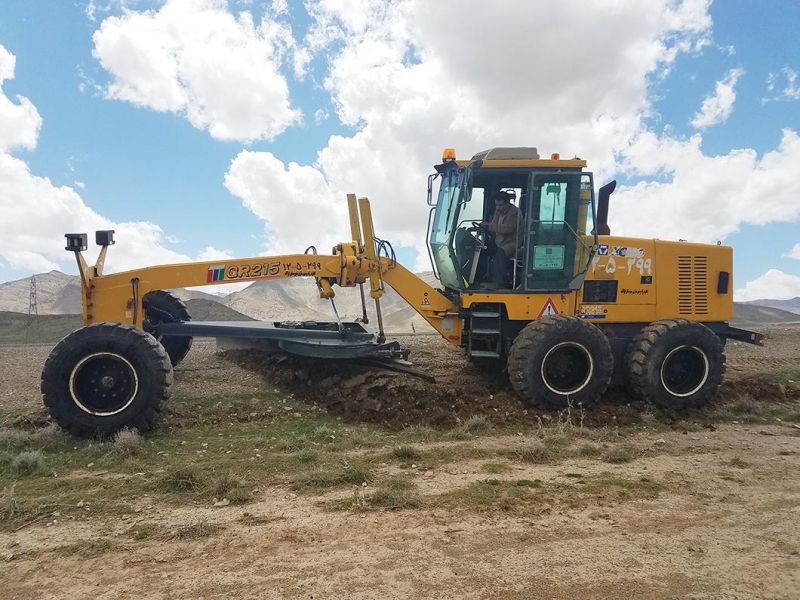

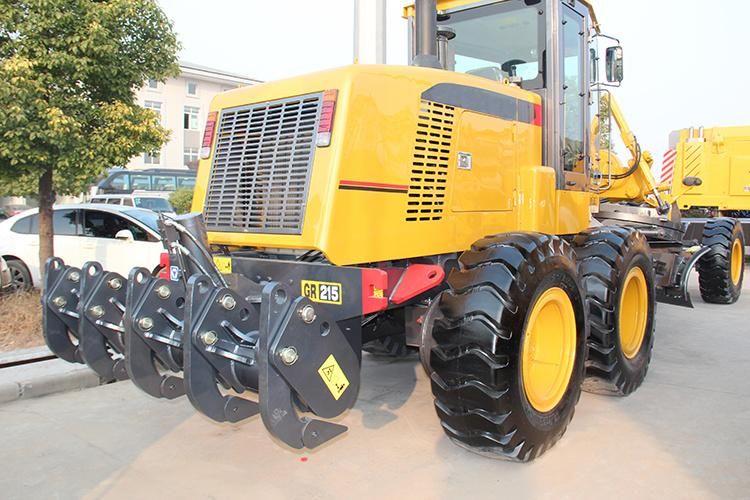

parametersForward velocity5,8,11,19,23,38km/hReverse speed5,11,23km/hTractive effort f=0.7587 kNMaximum gradeability20%Tire inflation pressure260kPaWorking system pressure16MPaTransmission pressure1.3-1.8MpaWorking parametersMaximum steering angle of front wheel±50°Maximum slant angle of front wheel±17°Maximum oscillating angle of front axle±15°Maximum oscillating angle of equilibrium boxforwards15°, Reverse15°Maximum steering angle of frame±27°Minimum turning radius7.3mScrape knifeMaximum lift height450mmMaximum cutting depth500mmMaximum tilt angle90°Cutting angle28°-70°Angle of revolution360°Length & chord height4270x610mmOil filling amountCoolant50LFuel tank280LEngine24LTransmission38LEquilibrium box46LCoolant28LHydraulic oil110LDetails Images  Product CaseRelated Products To Choose Online Service Team Company Profile
