• Model NO.：gr135
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Warranty：1 Year
• Hydraulic Valve Brand：Top Brand
• Hydraulic Pump Brand：Top Brand
• Forward Speed(Km/H)：42
• Reverse Speed(Km/H)：30
• Engine Brand：Cummins
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000 Unit,Units Per Year

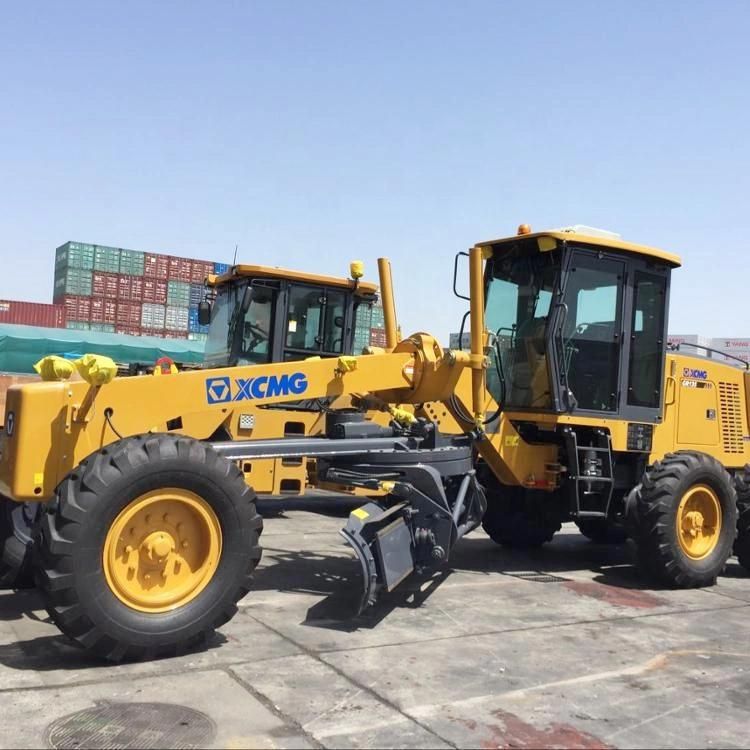

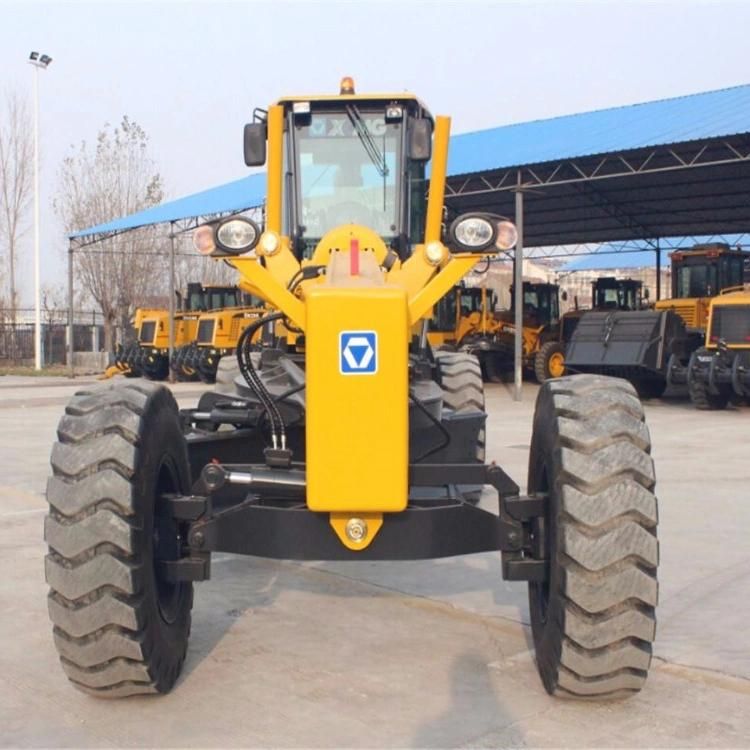

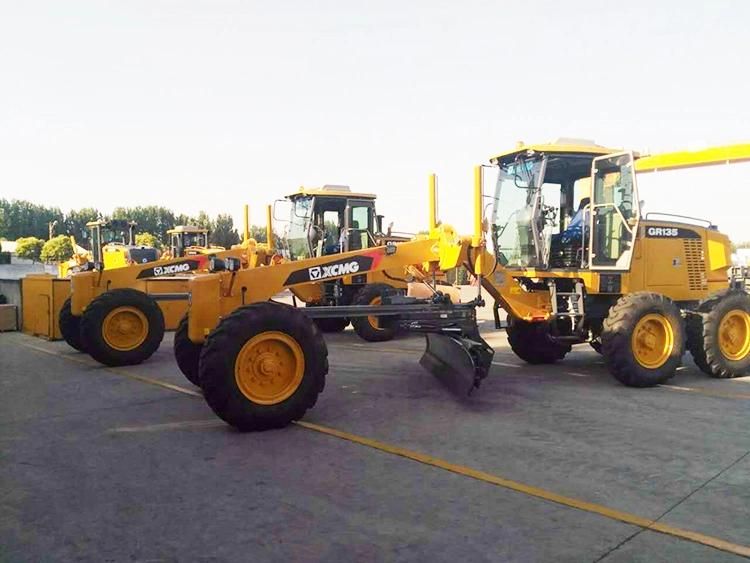

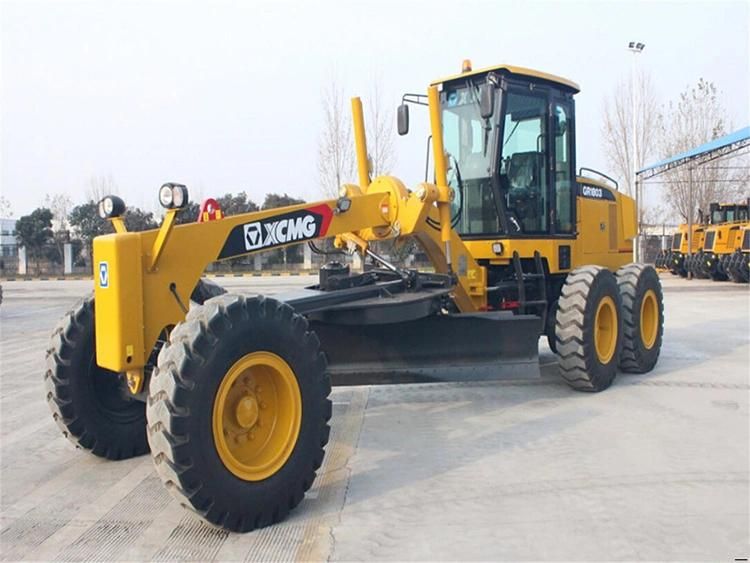

ItemGR135Basic parametersEngine model6BT5.9-C130-Rated power/speed97(2200r/min)Overall dimension (standard)8015X2380X3050Total weight (standard)11000kgTire specification13.00-24Ground clearance (front axle)515mmTread2020mmSpace of front and rear axles5780 mmPerformance parametersForward velocity5,8,13,20,30,42km/hReverse speed5,13,30km/hTractive effort f=0.7561.3kNMaximum gradeability20%Tire inflation pressure300kPaWorking system pressure16MPaTransmission pressure1.3-1.8MpaWorking parametersMaximum steering angle of front wheel±49°Maximum slant angle of front wheel±17°Maximum oscillating angle of front axle±15°Maximum oscillating angle of equilibrium box±16°Maximum steering angle of frame±27°Minimum turning radius6.6mScrape knifeMaximum lift height410mmMaximum cutting depth515mmMaximum tilt angle90°Cutting angle54°-90°Angle of revolution360°Length & chord height3660x610mmOil filling amountCoolant50LFuel tank280LEngine18LTransmission26LHydraulic oil96LDrive axle28LBalancing box46 LProduct Show Related Products To Choose Online Service Team Company Profile
