• Model NO.：XMR303
• Weight：3100kg
• Dimension(L*W*H)：2675*1318*2680mm
• After-Sales Service Provided：Video Technical Support, Online Support
• Warranty：1 Year
• Grade Ability：30%
• Engine Brand：Top Brand
• Power(W)：27.3kw
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000 Unit,Units Per Month

Basic Info.

Model NO. XMR303 Weight 3100kg Dimension(L*W*H) 2675*1318*2680mm After-Sales Service Provided Video Technical Support, Online Support Warranty 1 Year Grade Ability 30% Engine Brand Top Brand Power(W) 27.3kw Trademark XCMG Origin Jiangsu, China Production Capacity 10000 Unit/Units Per Month

Product Description

Description

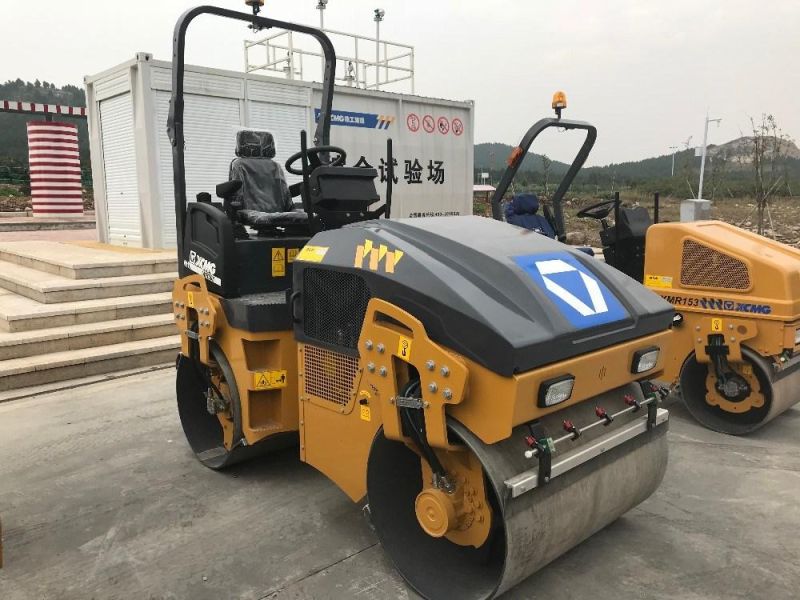

XCMG china light compactor XMR303 3ton Road Roller for sale

XMR303 light double drum vibratory roller is suitable for surface compaction of compaction works such as asphalt engineering and cement engineering and compaction of curbs. It is also suitable for compaction of base and base layers, sand and gravel materials.

Specification

Type	Unit	XMR303
Operating weight	kg	3100
Static linear load(front/rear)	N/cm	129/129
Travel Speed	km/h	0-9.5
Theoretical agreeability	%	30
Min. turning radius(Inner/Outer)	mm	2890/4090
Min ground clearance	mm	310
Steering angle	± °	30
Swing angle	±°	10
Vibration frequency	Hz	60
Vibrating system-max.pressure	Mpa	20
Steering system-max.rressure	Mpa	14
Nominal amplitude	mm	0.46
Exiting force	kN	32
Compacting width	mm	1200

Product showTop selling

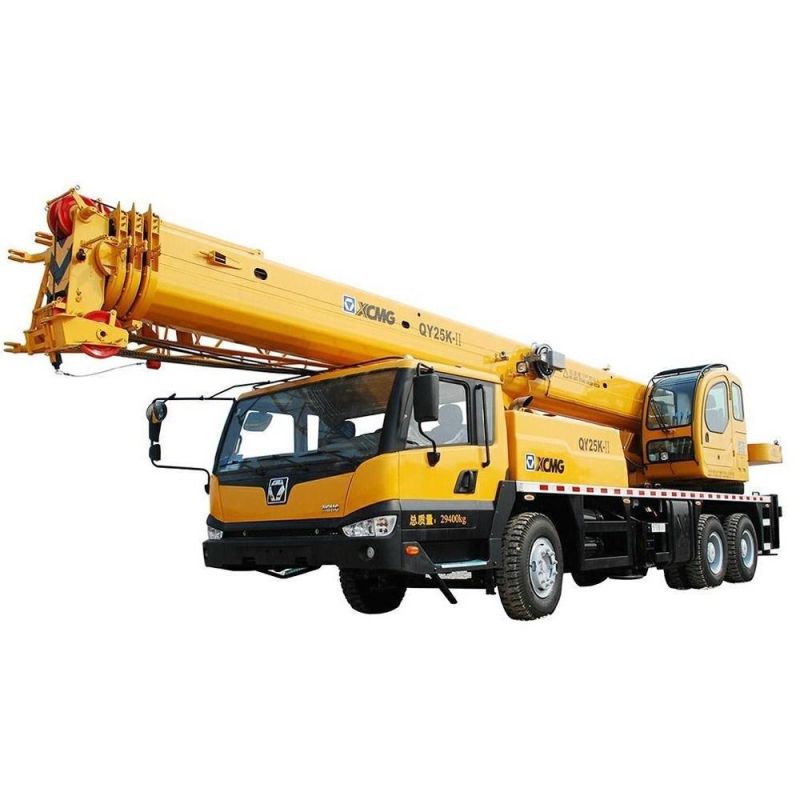

XCMG QY25K-II 25 ton hydraulic mobile truck crane

QY25K truck crane was developed by our company in 2000.Its travel and working performance are greatly improved.

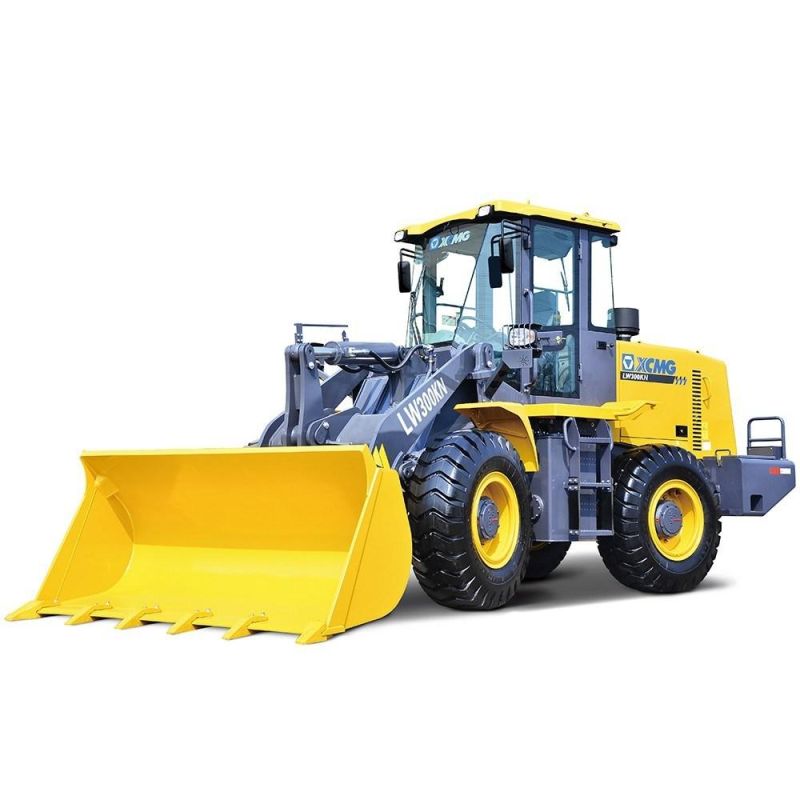

XCMG LW300KN 3 ton wheel loader

High energy-conservation, efficiency, reliability, and comfort.



XCMG 8x4 25m3 dump truck XGA3310D2WE

T series, tiltable cab, with air-condition & ventilation, adjustable driver's seat and single sleeper to realize high operation safety and comfort.

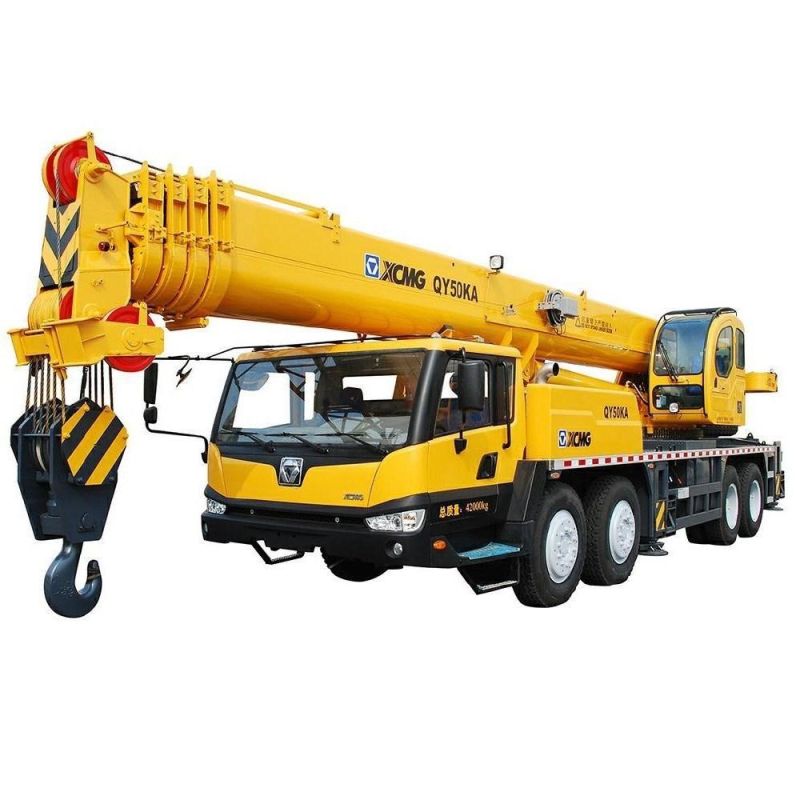

XCMG QY50KA 50 ton hydraulic mobile truck crane

Mature and reliable double pump confluence technology, highest hoisting, elevating and telescoping efficiency in the industry.

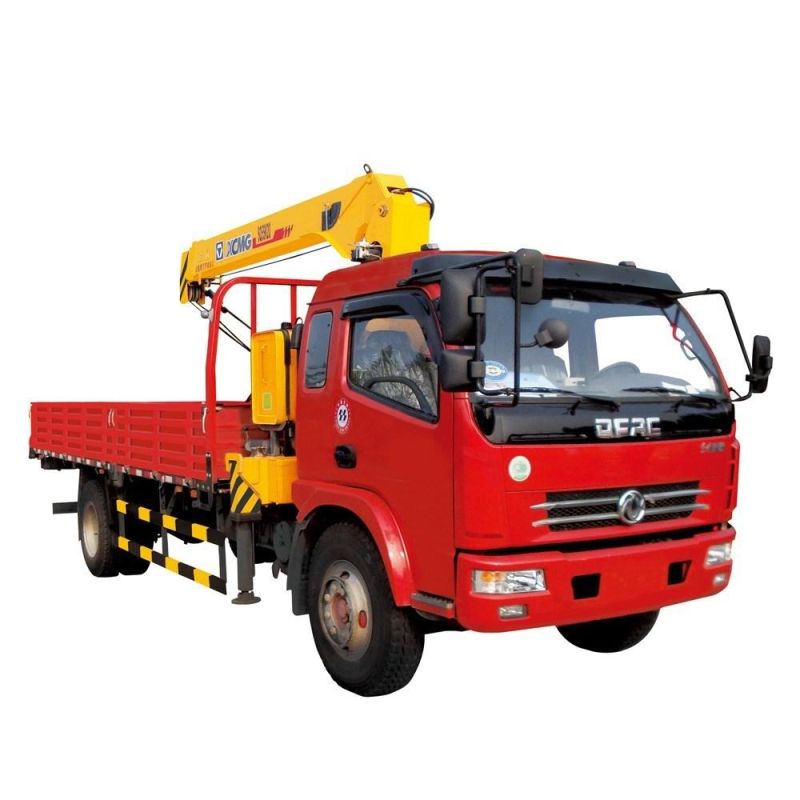

XCMG SQ8SK3Q 8ton Telescoping Boom Crane

The hydraulic system adopts dual high pressure gear pump, multi-way valve hoisting joint to realize the converging, to improve the speed of winch.

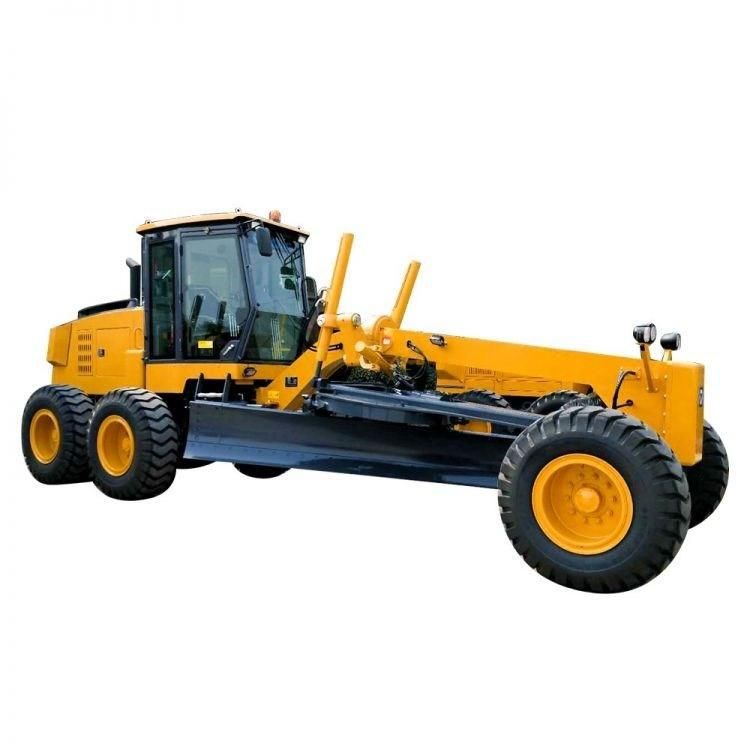

XCMG  GR215 215HP 16500kg wheel road motor grader
