• Model NO.：SL60W-2
• Type：Medium-sized Loader
• Operating Weight (Kg)：20630
• Maximum Dumping Height (mm)：3320 (Standard Boom)3600 (Long Boom)
• Dumping Reach (mm)：1200 (Standard Boom)1300 (Long Boom)
• Maximum Breakout Force (Kn)：179
• Total Cycle Time (S)：11.8
• Engine Model：Wd10
• Rated Power/Rated Speed (Kw/Rpm)：Rated Power,Rated Speed (Kw,Rpm)
• Forward Speed (Km/H)：F1:0-8;F2:0-15;F3:0-24;F4:0-38
• Reversing Speed (Km/H)：R1:0-8;R2:0-15;R3:0-24;R4:0-38
• Wheelbase (mm)：3400
• Fuel Tank (L)：230
• Rated Bucket Capacity (Cbm)：3.5
• Rated Loading Capacity (T)：6
• Transport Package：Nude Package,RO-RO,Bulk Shipment,Suitable Containe
• Specification：8635*3072*3548
• Trademark：shantui
• Origin：China
• Production Capacity：300piece,Month

Basic Info.

Model NO. SL60W-2 Type Medium-sized Loader Operating Weight (Kg) 20630 Maximum Dumping Height (mm) 3320 (Standard Boom)3600 (Long Boom) Dumping Reach (mm) 1200 (Standard Boom)1300 (Long Boom) Maximum Breakout Force (Kn) 179 Total Cycle Time (S) 11.8 Engine Model Wd10 Rated Power/Rated Speed (Kw/Rpm) Rated Power/Rated Speed (Kw/Rpm) Forward Speed (Km/H) F1:0-8;F2:0-15;F3:0-24;F4:0-38 Reversing Speed (Km/H) R1:0-8;R2:0-15;R3:0-24;R4:0-38 Wheelbase (mm) 3400 Fuel Tank (L) 230 Rated Bucket Capacity (Cbm) 3.5 Rated Loading Capacity (T) 6 Transport Package Nude Package/RO-RO/Bulk Shipment/Suitable Containe Specification 8635*3072*3548 Trademark shantui Origin China Production Capacity 300piece/Month

Product Description

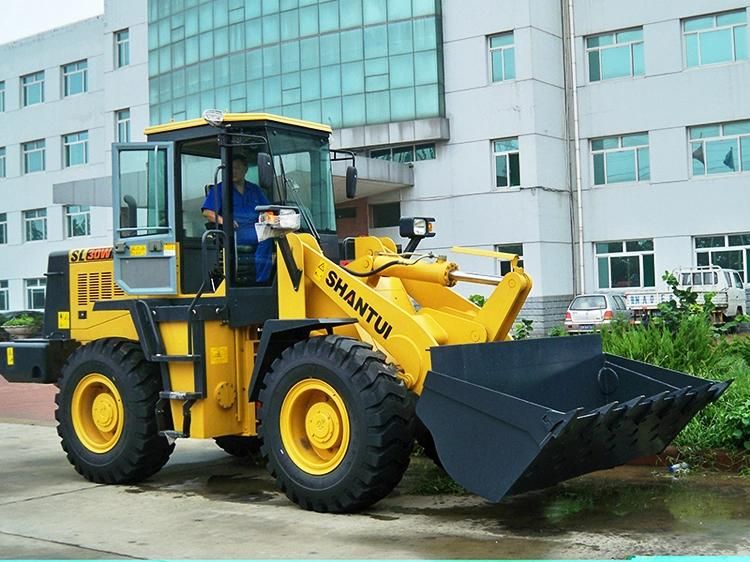

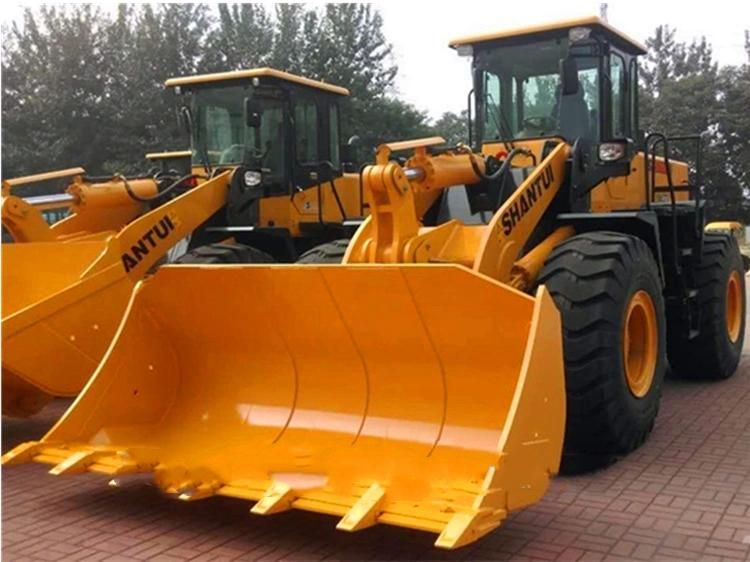

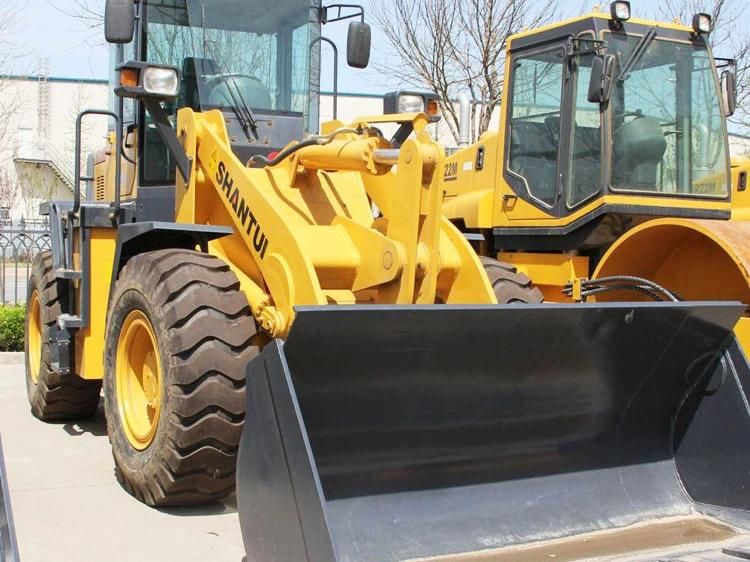

China Shantui Loader SL60W-2 With 3.5Cbm Bucket Capacity In Stock
Contact  Ash for more information



________________________________________________________________________________________________________________________
CHARACTERISTICPower System

Weichai new generation energy-saving engine conforms to China-II emission regulation and features high efficiency and energy-saving and strong power.

Transmission system

single-turbine torque converter and fixed shaft transmission guarantee extensive power coverage, high drive efficiency, good power match, stable motion, and more powerful operations. The split structure eases repairs and maintenances. Four forward gears and four reverse gears are at choice to ease the control of speed and achieve maximum drive performance.

Modified Wheelbase

The optimized 3,400mm wheelbase and 21t dead weight achieve higher operating stability under heavy-load condition, guarantee outstanding site adaptability and flexibility and super-strong working stability, and complete the general heavy-load mining operations (Such as stripping operation) with ease.

 High quality structure

With the application of finite element analysis optimization and the utilization of plate structure and automatic robot welding, the structural parts of the main machine feature high resistance against load and distortion, high firmness and compactness, and good stability.

Frame swing design

The 12º vertical swing design of subframe around the pin enables the loader to achieve more effective ground touch while driving on rugged roads, featuring higher adhesion and better stability and trafficability.

PARAMETER

Parameter name	SL60W-2
Performance parameters
Operating weight (Kg)	20630
Maximum dumping height (mm)	3320 (standard boom)3600 (Long Boom)
Dumping reach (mm)	1200 (standard boom)1300 (Long Boom)
Maximum breakout force (kN)	≥179
Total cycle time (s)	11.8
Engine
Engine model	WD10
Rated power/rated speed (kW/rpm)	175/2200
Overall dimensions
Overall dimensions of machine (mm)	8635*3072*3548
Driving performance
Forward speed (km/h)	F1:0-8;F2:0-15; F3:0-24; F4:0-38
Reversing speed (km/h)	R1:0-8;R2:0-15; R3:0-24; R4:0-38
Chassis System
Wheelbase (mm)	3400
Tank capacity
Fuel tank (L)	230
Working device
Rated bucket capacity (m³)	3.5
Rated loading capacity (t)	6
