• Model NO.：L66-C3
• Type：Medium-sized Loader
• Maximum Dumping Height (mm)：3325
• Dumping Reach (mm)：1300
• Maximum Breakout Force (Kn)：187
• Total Cycle Time (S)：10.6
• Engine Model：Wp10
• Rated Power/Rated Speed (Kw/Rpm)：178,2200
• Wheelbase (mm)：3350
• Fuel Tank (L)：230
• Rated Bucket Capacity (Cbm)：3.5
• Rated Loading Capacity (T)：6
• Transport Package：Nude Package,RO-RO,Bulk Shipment,Suitable Containe
• Specification：8415*3072*3560
• Trademark：shantui
• Origin：China
• Production Capacity：300piece,Month

Basic Info.

Model NO. L66-C3 Type Medium-sized Loader Maximum Dumping Height (mm) 3325 Dumping Reach (mm) 1300 Maximum Breakout Force (Kn) 187 Total Cycle Time (S) 10.6 Engine Model Wp10 Rated Power/Rated Speed (Kw/Rpm) 178/2200 Wheelbase (mm) 3350 Fuel Tank (L) 230 Rated Bucket Capacity (Cbm) 3.5 Rated Loading Capacity (T) 6 Transport Package Nude Package/RO-RO/Bulk Shipment/Suitable Containe Specification 8415*3072*3560 Trademark shantui Origin China Production Capacity 300piece/Month

Product Description

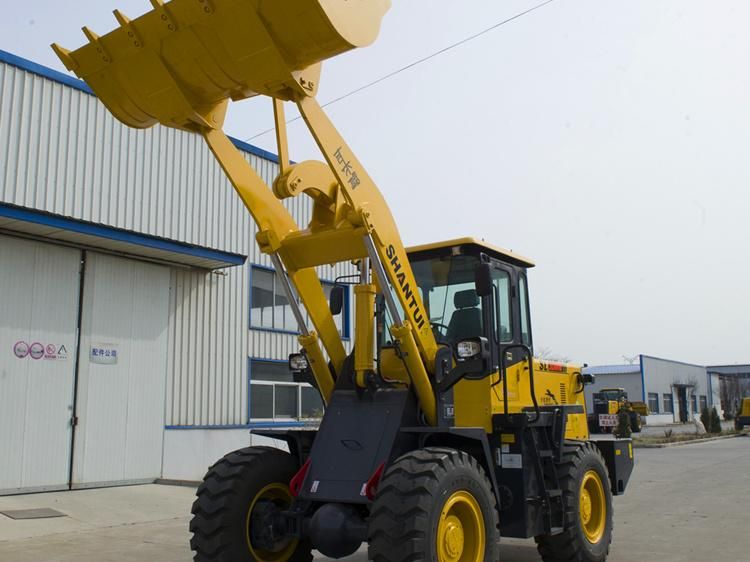

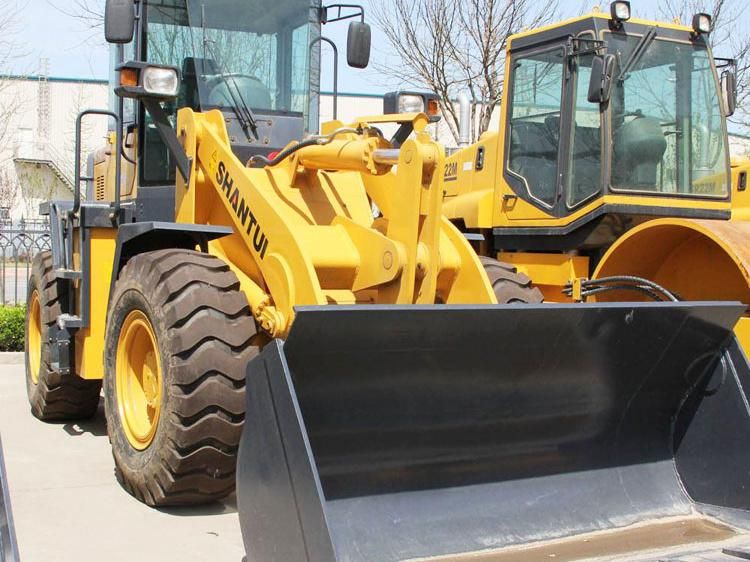

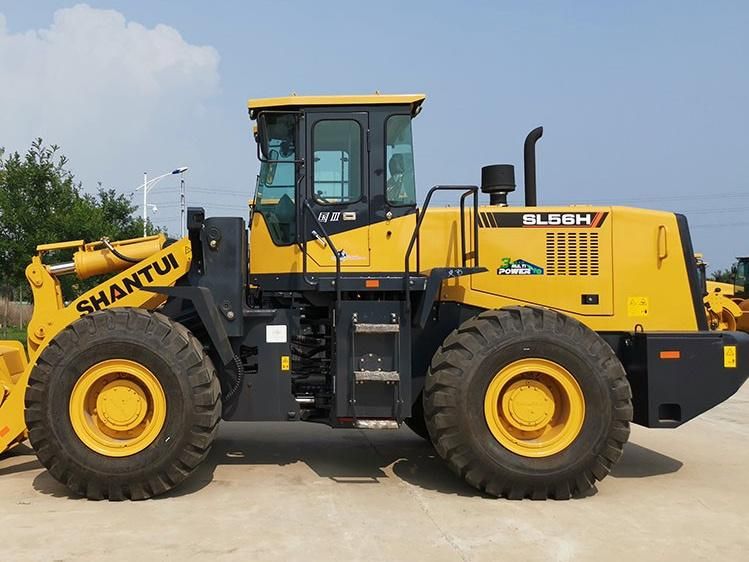

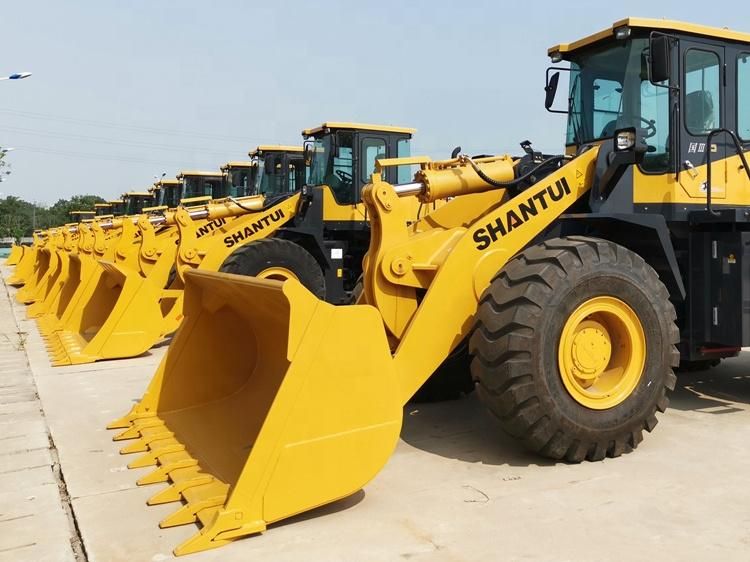

  Hot Sale Shantui Wheel Loader L66-C3 In StockContact  Ash for more information



CHARACTERISTIC:Power System

Weichai electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring high intelligence and efficiency, high parts interchangeability, and low maintenance cost.

The machine is provided with three power modes, namely no-load, medium-load, and heavy-load modes, at choice depending on the actual working load to realize the reasonable match among power, efficiency, and energy consumption.

Drive system

The 6t special planetary transmission + torque converter or ZF200 transmission + torque converter is applied to realize more reasonable match and faster response.

The KD gear, 1st gear, and 2nd gear of the electronic control transmission are shifted automatically to ensure simple and flexible operations.

Driving/Riding Environment

The new generation cab with all-new design optimization and large door structure is mold formed to guarantee broader vision and more fashionable appearance.

All-new cushioned seat with large adjustment range provides the driver with the most comfortable operating posture.

The locations of joysticks, pedals, and seat are reasonably arranged to achieve higher operating comfort. The standard pilot control system features handy and comfortable operations.

The standard radio and audio provides more abundant personalized driving/riding experience and guarantees the comfortable and safe driving/riding environment.

Structural parts

All-new heavy-load frame and working device with enhancement design achieve more reasonable force application and meet the needs of continuous, heavy-load, and severe working conditions.

The bucket in arc structure design reduces the material penetration resistance. The spill plates are designed on the top to effectively prevent the falloff of material and prolong the lives of rear hinge pins.

With 3350mm wheelbase, the machine guarantees high tipping load and good stability.

The new boom features excellent adaptability, with the dumping height reaching 3,325mm.

Convenient maintenances

The hoods, cab, ladder, and handrails of the machine are optimized and upgraded to realize powerful human-machine interaction and easy maintenances.

PARAMETER

Parameter name	L66-C3 HD (Heavy-duty version)	L66-C3 CH (Coal version)	L66-C3 MH (Ore version)
Performance parameters
Operating weight (Kg)	19500	19500	19500
Maximum dumping height (mm)	3325	3220 (Standard boom)/3430 (Long Boom)	3435
Dumping reach (mm)	1300	1380 (Standard boom)/1495 (Long Boom)	1165
Maximum breakout force (kN)	≥187	≥187	≥187
Total cycle time (s)	10.6	10.6	10.6
Engine
Engine model	WP10	WP10	WP10
Rated power/rated speed (kW/rpm)	178/2200	178/2200	178/2200
Overall dimensions
Overall dimensions of machine (mm)	8415*3072*3560	8365 (Standard boom)/8695 (Long Boom)*3290*3560	8300*3072*3560
Driving performance
Forward speed (km/h)	Planetary type: F1:0-13,F2:0-38 Electronic control type: F1:0-7,F2:0-12,F3:0-25,F4:0-38	Planetary type: F1:0-13,F2:0-38 Electronic control type: F1:0-7,F2:0-12,F3:0-25,F4:0-38	Planetary type: F1:0-13,F2:0-38 Electronic control type: F1:0-7,F2:0-12,F3:0-25,F4:0-38
Reversing speed (km/h)	Planetary type: R:0-17 Electronic control type: R1:0-7,R2:0-12,R3:0-25	Planetary type: R:0-17 Electronic control type: R1:0-7,R2:0-12,R3:0-25	Planetary type: R:0-17 Electronic control type: R1:0-7,R2:0-12,R3:0-25
Chassis System
Wheelbase (mm)	3350	3350	3350
Tank capacity
Fuel tank (L)	230	230	230
Working device
Rated bucket capacity (m³)	3.5	5	2.7
Rated loading capacity (t)	6	6	6
