• Model NO.：L36-C3
• Type：Small Loader
• Maximum Dumping Height (mm)：3057 (Extended Boom)3200 (Long Boom)
• Dumping Reach (mm)：906 (Extended Boom)886 (Long Boom)
• Total Cycle Time (S)：9
• Engine Model：Wp6
• Rated Power/Rated Speed (Kw/Rpm)：92,2000
• Overall Dimensions of Machine (mm)：7240*2484*3235
• Wheelbase (mm)：2700
• Fuel Tank (L)：150
• Rated Bucket Capacity (M³)：1.7
• Rated Loading Capacity (T)：3t
• Transport Package：Nude Package,RO-RO,Bulk Shipment,Suitable Containe
• Specification：7240*2484*3235
• Trademark：shantui
• Origin：China
• Production Capacity：300piece,Month

Basic Info.

Model NO. L36-C3 Type Small Loader Maximum Dumping Height (mm) 3057 (Extended Boom)3200 (Long Boom) Dumping Reach (mm) 906 (Extended Boom)886 (Long Boom) Total Cycle Time (S) 9 Engine Model Wp6 Rated Power/Rated Speed (Kw/Rpm) 92/2000 Overall Dimensions of Machine (mm) 7240*2484*3235 Wheelbase (mm) 2700 Fuel Tank (L) 150 Rated Bucket Capacity (M³) 1.7 Rated Loading Capacity (T) 3t Transport Package Nude Package/RO-RO/Bulk Shipment/Suitable Containe Specification 7240*2484*3235 Trademark shantui Origin China Production Capacity 300piece/Month

Product Description

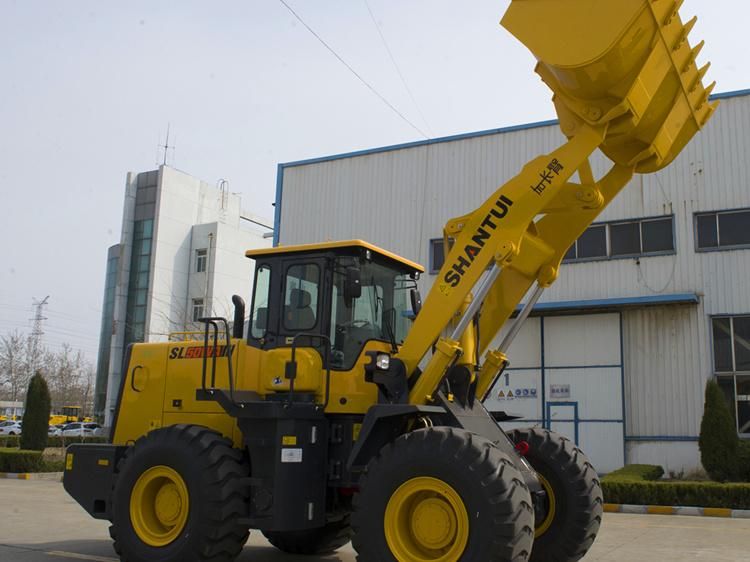

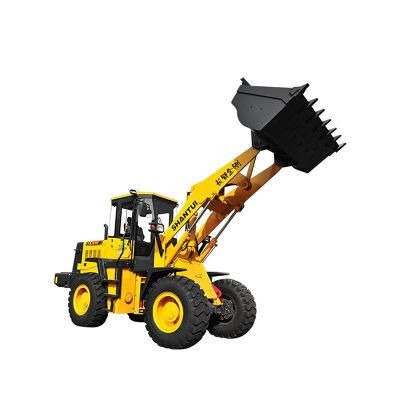

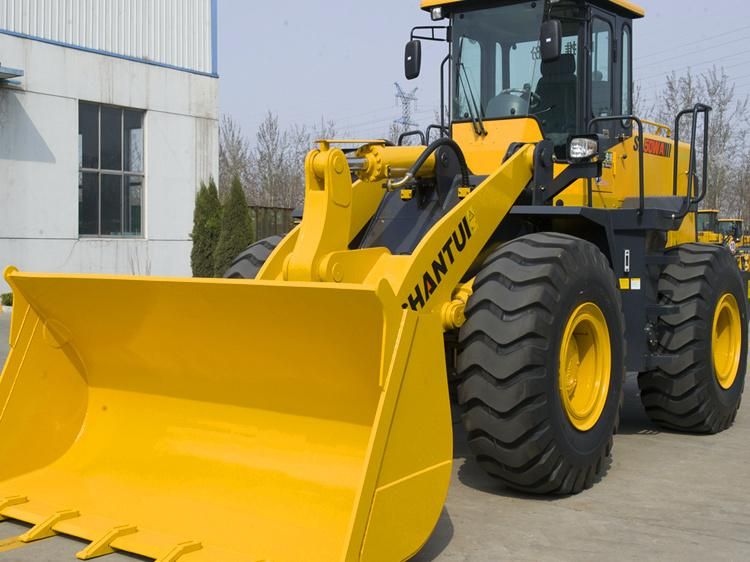

Shantui Wheel Loader L36-C3 With 3Ton Rated Loading CapacityContact  Ash for more information


 Power System

The drivetrain system of Weichai low-speed energy-saving engine + Shantui low-speed high-capacity torque converter + fixed shaft transmission features low fuel consumption, low malfunction rate, and high energy-saving and efficiency.

Driving/Riding Environment

The new generation cab with all-new design optimization guarantees broader vision and more fashionable appearance.

The framework structure in four sides guarantees high safety, comfort, and reliability.

The extensively adjustable seat provides the driver with the most comfortable operation;

It provides more abundant personalized driving/riding experience and guarantees the comfortable and safe driving/riding environment.

Operating performance

The locations of joysticks, pedals, and seat are reasonably arranged to achieve higher operating comfort. The optional pilot control system features flexible and convenient operations.

High operating efficiency

The new bucket in optimized bucket shape is applied to improve the bucket fullness rate and shoveling and loading efficiency.

High tipping load, good heavy-load stability, and high efficiency;

Weichai low-speed engine special for Shantui and Shantui's self-made low-speed high-capacity torque converter achieve optimal match performance, high traction force, high insertion force into material pile, and good startup performance (Loaded startup capability even in 3rd gear).

The double pump confluence hydraulic working system and the load-sensing steering system are applied to ensure flexible operations and fast and stable steering speed. The 125 large-bore lifting cylinder is applied to increase the lifting force by 12% and the total cycle time is as low as 9s to achieve higher shoveling and loading efficiency.

Reliable performance

The structural parts, including front and rear frames and working device, are optimized and enhanced, the CAE analysis is taken for critical parts, and the main welded parts are welded by robots to ensure reliable welding quality;

The hydraulic system parts adopt domestic renowned brand products.

The radiator system adopts composite integrated radiator to enhance the heat dissipation area and achieve better heat dissipation performance. The fan diameter is enlarged to increase the airflow rate and improve the system heat dissipation performance.

The patented double locating structure (Upper and lower articulated joints) features flexible steering and stable and reliable performance, with the life more than 2 times of that of single locating structure.

Convenient maintenances

The transmission oil filler pipe is directed and the maintenance locations (Such as booster pump) are optimized to ease the routine repairs and maintenances.


PARAMETER

Parameter name	L36-C3 SG (Sandstone version)	L36-C3 CH (Coal version)	L36-C3 MH (Ore version)	L36-C3 MW (Mining version )
Performance parameters
Operating weight (Kg)	10500	10500	10500	10500
Maximum dumping height (mm)	3057 (Extended boom)3200 (Long Boom)	3055 (Long Boom)	3040 (Extended boom)	2875 (Standard boom)
Dumping reach (mm)	906 (Extended boom)886 (Long Boom)	1057 (Long Boom)	936 (Extended boom)	955 (Standard boom)
Maximum breakout force (kN)	≥105	≥100	≥105	≥96
Total cycle time (s)	9	9	9	9.5
Engine
Engine model	WP6	WP6	WP6	WP6
Rated power/rated speed (kW/rpm)	92/2000	92/2000	92/2000	92/2200
Overall dimensions
Overall dimensions of machine (mm)	7240*2484*3235	7460*2450*3235	7337*2470*3235	7113*2484*2775
Driving performance
Forward speed (km/h)	F1:0-7,F2:0-12,F3:0-23,F4:0-37	F1:0-7,F2:0-12,F3:0-23,F4:0-37	F1:0-7,F2:0-12,F3:0-23,F4:0-37	F1:0-5.8,F2:0-10.8,F3:0-18.4,F4:0-35
Reversing speed (km/h)	R1:0-8.3,R2:0-28	R1:0-8.3,R2:0-28	R1:0-8.3,R2:0-28	R1:0-7.8,R2:0-27
Chassis System
Wheelbase (mm)	2700	2700	2700	2700
Tank capacity
Fuel tank (L)	150	150	150	150
Working device
Rated bucket capacity (m³)	1.7	2.2	1.7	1.7
Rated loading capacity (t)	3	3	3	3
