• Model NO.：SG18-3
• Wheelbase (mm)：6260
• Wheel Tread (mm)：2155
• Minimum Ground Clearance (mm)：430
• Maximum Gradeability (°)：20
• Width of Shovel Blade (mm)：3660,3965
• Maximum Digging Depth of Blade (mm)：500
• Engine Model：6btaa5.9-C180
• Gears：Six Forward and Three Reverse
• Service Brake Type：Hydraulic Brake
• Fuel Tank (L)：340
• Working Hydraulic Fuel Tank (L)：110
• Transmission (L)：28
• Drive Axle (L)：25
• Balance Box (L)：2*38
• Transport Package：Nude Package,RO-RO,Bulk Shipment,Suitable Containe
• Specification：9015 Width (mm) 2600 Heigh (mm) 3400
• Trademark：shantui
• Origin：China
• Production Capacity：300piece,Month

Basic Info.

Model NO. SG18-3 Wheelbase (mm) 6260 Wheel Tread (mm) 2155 Minimum Ground Clearance (mm) 430 Maximum Gradeability (°) 20 Width of Shovel Blade (mm) 3660/3965 Maximum Digging Depth of Blade (mm) 500 Engine Model 6btaa5.9-C180 Gears Six Forward and Three Reverse Service Brake Type Hydraulic Brake Fuel Tank (L) 340 Working Hydraulic Fuel Tank (L) 110 Transmission (L) 28 Drive Axle (L) 25 Balance Box (L) 2*38 Transport Package Nude Package/RO-RO/Bulk Shipment/Suitable Containe Specification 9015 Width (mm) 2600 Heigh (mm) 3400 Trademark shantui Origin China Production Capacity 300piece/Month

Product Description

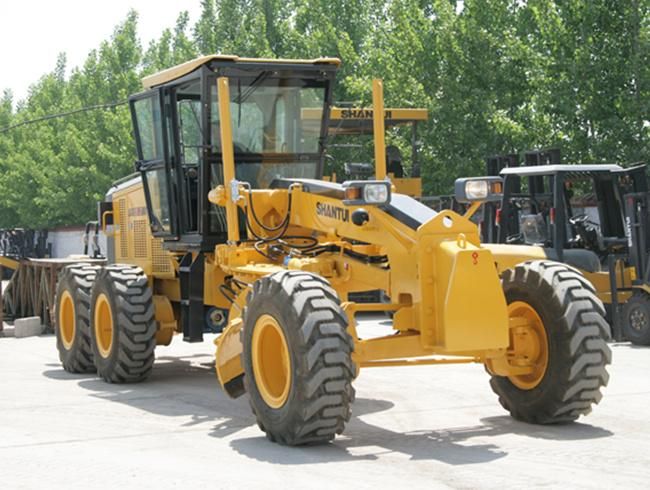

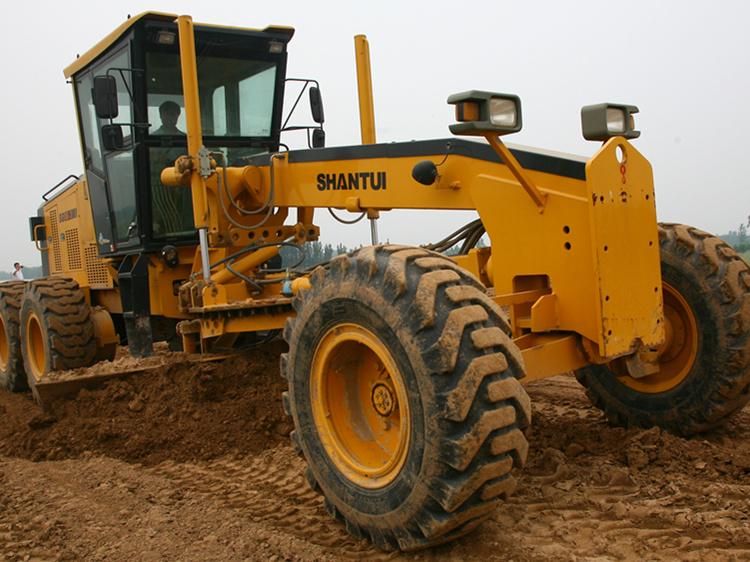

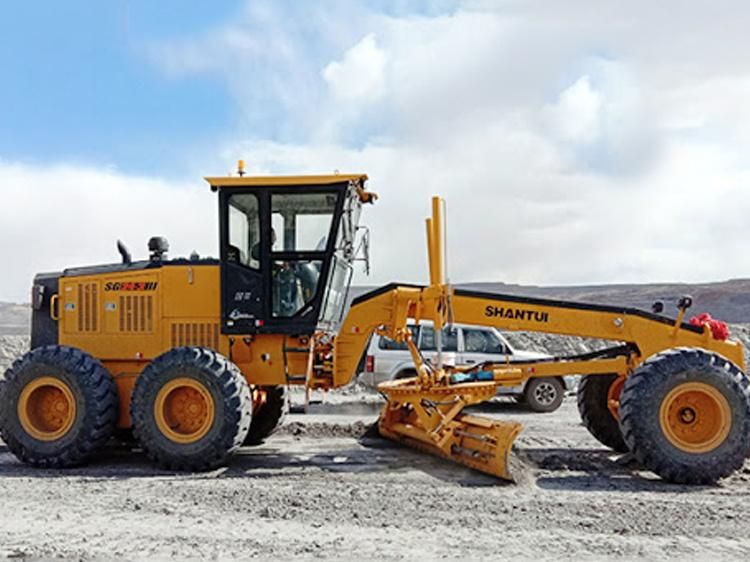

 2020 Hot Sale Shantui Motor Grader SG18-3 With Low PriceContact  Ash for more information



Product Description:Power System

It's powered by Dongfeng Cummins 6BTAA5.9-C180 China-II compliant inline, 4-stroke, direct injection, water-cooled, and turbocharged and intercooled diesel engine, featuring compact structure, stable performances, and high efficiency and energy-saving.

The high torque reserve enables the machine to output stable power under severe working conditions and meet your working needs.

Driving/Riding Environment

The high-grade full-sealed luxury cab with full visual field and the high-efficiency shock-absorbing seat maximize the operating comfort.

The cab and the main frame are connected by shock absorber to ensure the operating safety and reliability.

Working adaptability

With 6 forward gears and 3 reverse gears, the electro-hydraulically controlled power shift transmission can select the optimal gear based on the working road condition to realize the best match between traveling and operation.

The integral three-segment drive axle is built internally with imported no-spin automatic limited slip differential to guarantee stable and reliable drive.

The balance box is capable of 15° angular swing in vertical direction and the heavy-duty roller chain drive guarantees better terrain adaptability of the machine. It can meet the normal operations under special road conditions, featuring stable power output and strong drive force.

Operating performance

It features the highest traction force among the domestic motor graders of like type and the highest operating efficiency among the domestic products of like type.

The external gear working device of proprietary technology features high drive torque and strong resistance against external force impact.

The blade of larger angular adjustment range (37°-83°) improves the material control capability and remarkably promotes the operating efficiency of motor grader, especially during the handling of dry material and clay.

With full-load scraping capability in 2nd forward gear, the motor grader can remarkably promote the production efficiency compared with domestic products of like type.

With high resistance against external force impact, the link type swing frame is applicable for the working conditions with high operating volume and severe operating environment.

Easy maintenances

The hydraulic pin puller cylinder can complete the operations of swing frame by merely one operator to eliminate all potential safety hazards and ease user's operations.

The structural parts inherit the excellent quality of Shantui mature products.

The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.

The maintenance-free battery installed on the rear of the machine features high power capacity.

The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.

PARAMETER

Product name	SG18-3
Performance parameters
Operating weight of machine (kg)	15900
Wheelbase (mm)	6260
Wheel tread (mm)	2155
Minimum ground clearance (mm)	430
Steering angle of front wheels (°)	±45
Articulated steering angle (°)	±25
Maximum traction force (kN)	83.5(f=0.75)
Turning radius (mm)	7,800 (Outer side of front wheel)
Maximum gradeability (°)	20
Width of shovel blade (mm)	3660/3965
Height of shovel blade (mm)	635
Blade slewing angle (º)	360
Blade cutting angle (º)	37-83
Maximum digging depth of blade (mm)	500
Length (mm)	9015
Width (mm)	2600
Heigh (mm)	3400
Engine
Engine model	6BTAA5.9-C180
Emission	China-II
Type	Mechanical direct injection
Rated power/rated speed (kw/rpm)	132kW/2200rpm
Drive system
Torque converter	Single-stage single-phase three-element
Transmission	Countershaft power shift
Gears	Six forward and three reverse
Speed for forward gear I (km/h)	5.4
Speed for forward gear II (km/h)	9.3
Speed for forward gear III (km/h)	12.2
Speed for forward gear IV (km/h)	20.7
Speed for forward gear V (km/h)	25.6
Speed for forward gear VI (km/h)	39.7
Speed for reverse gear I (km/h)	5.4
Speed for reverse gear II (km/h)	12.2
Speed for reverse gear III (km/h)	25.6
Brake system
Service brake type	Hydraulic brake
Parking brake type	Mechanical brake
Brake oil pressure (MPa)	10
Hydraulic system
Working pump	Constant displacement gear pump, with flow at 28ml/r
Operating valve	Integral multi-way valve
Pressure setting of safety valve (MPa)	16
Pressure setting of safety valve (MPa)	12.5
Filling of fuel/oils/fluids
Fuel tank (L)	340
Working hydraulic fuel tank (L)	110
Transmission (L)	28
Drive axle (L)	25
Balance box (L)	2X38
