Construction Machinery Zl928 Wheel Loader with Backhoe Loader
Qingdao Zongjin Engineering Machinery Co., Ltd.- Warranty：1 Year
- Certification：TUV, ISO, CE, Rops & Fops
Base Info
- Model NO.：WL280
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Rated Bucket Capacity：1.2 Cubic Meter
- Rated Power：85 Kw
- Tyre：16,70-24
- Max.Dump Height：3600 mm
- Operation Weight：6500kg
- Load：2800 Kg
- Bucket Indicator：Yes
- Rated Speed：2400 R,Min
- Gearbox Type：Fixed-Spindle Power Shift
- Gear Shift：2 Gear Ahead 2 Gear Astern
- Steering System：Articulated Hydraulic Steering
- Max.Turning Angle：35±1°
- Min Turning Radius：4500 mm
- Brake Type：Air Assisted Oil Disc on Four Wheel
- Transmission System Type：Single Grade Three Componets
- Transport Package：1 Set,20gp Container, 3 Sets,40hq Conatiner.
- Specification：LxWxH(mm) 6500x2100x3050
- Trademark：WOLF
- Origin：Shandong
- HS Code：84295100
- Production Capacity：3000 Sets,Year
- Package size per unit product：650.00cm * 210.00cm * 305.00cm
- Gross weight per unit product：6500.000kg
Description
SpecificationOverall Weight(Kg) 6500KG L×W×H(Mm) 6500x2100x305 Rated Bucket Capacity(M3) 1.2 Rated Load(Kg) 2800 Maximum Dump Height (Mm) 3600 Bucket Indicator Yes Max. Breakout Force(KN) 48.8KN Engine Model YTO 4108 Type In-Line Arrangement, Direct Injection,Water Cooling, Four-Stroke Rated Power(Kw) 85kw Rated Speed(R/Min) 2400 Transmission
System Model Of Torque Converter YJ280 Type Single Grade Three Componets Gearbox Type Fixed-Spindle Power Shift Gear Shift 2 Gears Ahead,2 Gear Astern Hydraulic System Distribution Of Work Valve DF20.2C Working Pump CBF18 Steering System Type Articulated Hydraulic Steering Max. Turning Angle 35±1° Min Turning Radius(Mm) 4500 Brake System Brake Type Air Assisted Oil Disc On Four Wheel Tyres Standard Tyres 16/70-24 Speed(km/h) 22

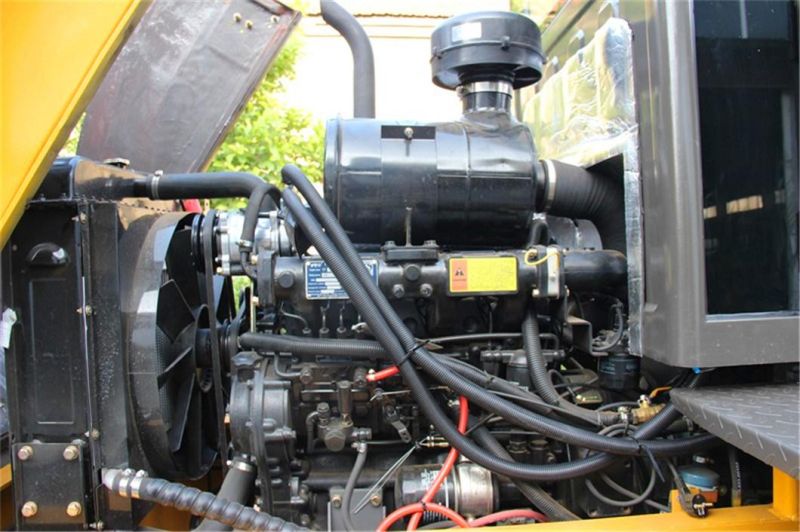

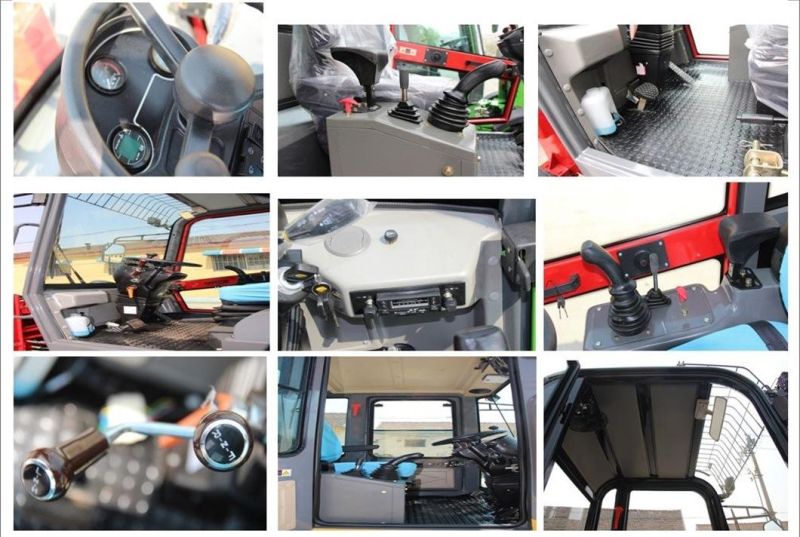

Detailed pictures about WL280 wheel loader

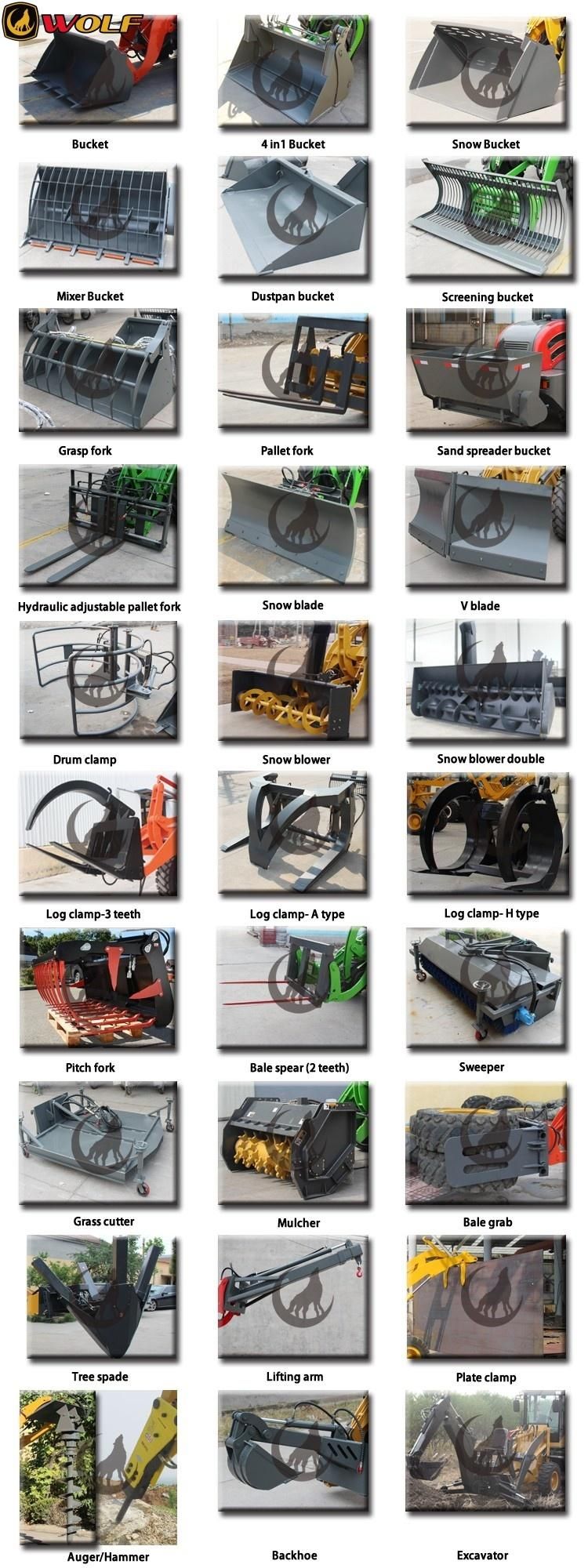

Optional Attachments about WL280, she can do different jobs for you.
2.Products Categories
3.Company Profile
4.Company Strength Display
5.Engineering Case
6.Products Packing Logistics
7.FAQ
FAQ:
1.How long is your lead time?
30~40days after receiving the deposit
2.How is the warranty?
Our warranty time is 1 year from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of WOLF?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.
Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from WOLF?
If there is any using problem, we can provide online or video guidance.
If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site.
Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose WOLF?
Wolf Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
8.Our slogan
QUALITY WITHOUT COMPROMISE
