• Model NO.：WL200
• Condition：New
• Rated Load：1-3t
• Transmission：Hydraulic
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Rated Bucket Capacity：0.9-1.2 Cubic Meter
• Rated Power：70 Kw
• Tyre：16,70-20
• Max.Dump Height：3000 mm
• Operation Weight：5500kg
• Load：2500 Kg
• Bucket Indicator：Yes
• Dump Distance：1084 mm
• Total Time：11.3s
• Engine Model：Changchai 4G33
• Rated Speed：2400 R,Min
• Normal Fuel Consumption：242g,Kw.H
• Total Displacement：4.4L
• Max.Torque：261.7n.M
• Transmission Type：Full-Powershift, Countershaft Type
• Transport Package：1 Set,20gp Container, 3 Sets,40hq Conatiner.
• Specification：LxWxH(mm) 6130x1920x2820
• Trademark：WOLF
• Origin：Shandong
• HS Code：84295100
• Production Capacity：3000 Sets,Year
• Package size per unit product：611.00cm * 205.00cm * 263.00cm
• Gross weight per unit product：5500.000kg

SpecificationOverall weight(kg)5500L×W×H(mm)5960x1920x2820Rated bucket capacity(m3)0.9-1.2Rated load(kg)2500Max. dump height (mm)3000Bucket indicatorYesDump distance(mm)1084Total time11.3sEngineModelChangchai 4G33TypeVertical, In-line , Water cooling, four-stroke diesel engineRated power(kw)70KWRated speed(r/min)2400Normal fuel consumption242g/kw.hTotal displacement4.4LMax.torque261.7N.mTransmission systemModel of torque converterYJ280pattern3-element single stageTransmission typeFull-powershift, countershaft typeGear shift2 gears ahead,2 gear asternMax. travel speed24km/hHydraulic systemWorking pressure16MpaImplement pumpCBF25System working pressure16MPADistribution device modelDF20.2CSteering systemTypeArticulated and hydraulic steeringMin turning radius(mm)4500Max. turning angle35°±1TiresStandard tires16/70-20Standard bucket Width (mm)2200

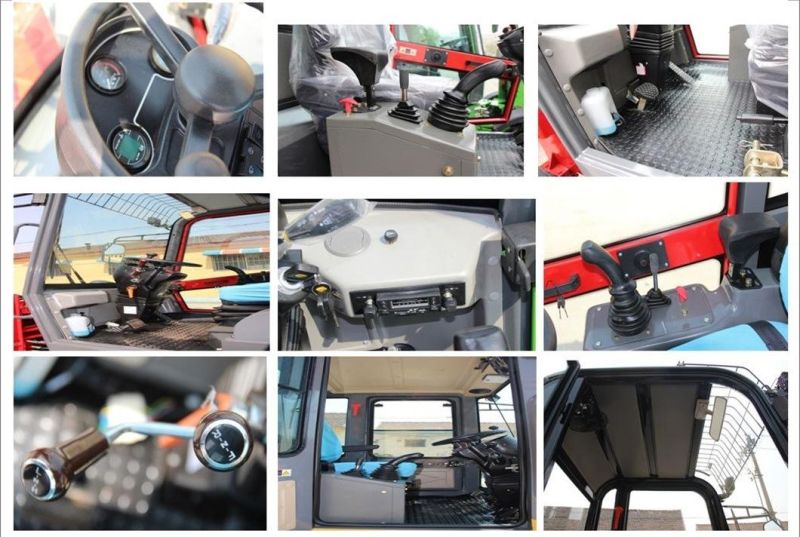

 Detailed pictures about WL200 wheel loader

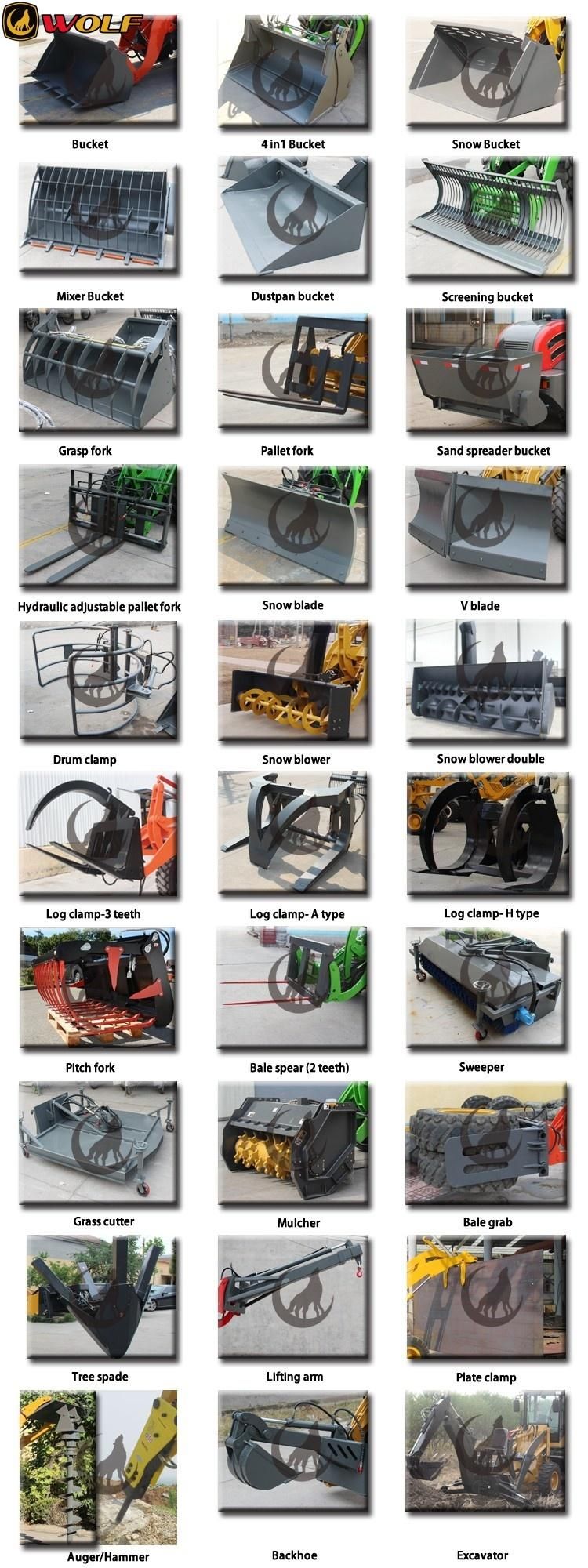

  Optional Attachments about WL200, she can do different jobs for you.


2.Products Categories




3.Company Profile




4.Company Strength Display




5.Engineering Case




6.Products Packing Logistics









7.FAQ




FAQ:

1.How long is your lead time?
 30~40days after receiving the deposit

2.How is the warranty?
Our warranty time is 1 year from date of machine arriving at your destination port.

3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.

4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.

5.What is the advantage of WOLF?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.
Our factory is passed ISO9000 and ISO4000 test.

6.What kind of service can we get from WOLF?
If there is any using problem, we can provide online or video guidance.
If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site.
Our service department has no holiday, always stand by for you and respond within 5 hours.

7.Why do you choose WOLF?
Wolf Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.

8.Our slogan
QUALITY WITHOUT COMPROMISE
