EPA Engine Zl18 CE Mini Skid Steer Wheel Loader
Qingdao Zongjin Engineering Machinery Co., Ltd.- Warranty：1 Year
- Certification：TUV, ISO, CE, Rops & Fops
Base Info
- Model NO.：WL180
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Wheel Base：2180
- Wheel Thread：1490
- Max.Breakout Force：72kn
- Minimum Turning Radius：4367mm
- Engine Type：in Line,Directinjection,Four-Stroke,Liquid Cooled
- Rated Speed(R/Min)：2400
- Options：Changchai 4G33tc71~76kw
- Transmission System Model of Torque Conv：Yj265
- Transmission System Type：Single-Stage,3 Elements
- Transmission System Gearbox Type：Axial Full Power Shift Transmission
- Transmission System Gear Shift：2 Gears Ahead,2 Gear Astern
- Steering System Max. Turning Angle：Left and Right 35±1°
- Steering System Min Turning Radius(mm)：4200 mm
- Type Specification：23.5-16
- Optional Tire：16,70-20(as Picture Shows)
- Transport Package：Machine Are Packed Into Container and Fixed by Ste
- Specification：5800x1860x2730
- Trademark：WOLF
- Origin：Shandong
- HS Code：84295100
- Production Capacity：2000 Set,Year
- Package size per unit product：550.00cm * 195.00cm * 272.00cm
- Gross weight per unit product：4800.000kg
Description
Performance
Rated loading
1800kg
Overall weight
4800kg
Rated bucket capacity
0.9m3
Maximum dump height
3200mm
Overall dimension (L×W×H)
5800X1900X2700mm
Max.Breakout force(KN)
43
Minimum turning radius
4367mm
Engine
Model
Weichai 4102 engine
Engine type
In line,directinjection,four-stroke,liquid cooled
Rated speed(r/min)
2400
Options
Changchai 4G33TC71~76kw
Transmission system
Model of torque converter
YJ265
Type
Single-stage,3 elements
Gearbox type
Axial full power shift transmission
Gear shift
2 gears ahead,2 gear astern
Hydraulic system
Distribution of work valve
DF15.2C
Working pump
CBG2040
Steering system
Type
Articulated hydraulic steering
Max. turning angle
left and right 35±1°
Min turning radius(mm)
4200
Brake system
Service brake
Air assist disc brake on 4 wheels
Parking brake
Flexible shaft operated external drum
Tyre
Type specification
23.5-16
Optional tire
16/70-20(as picture shows)

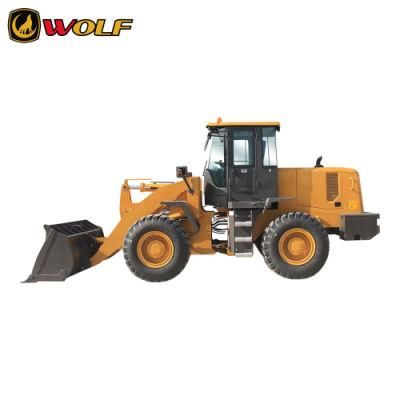

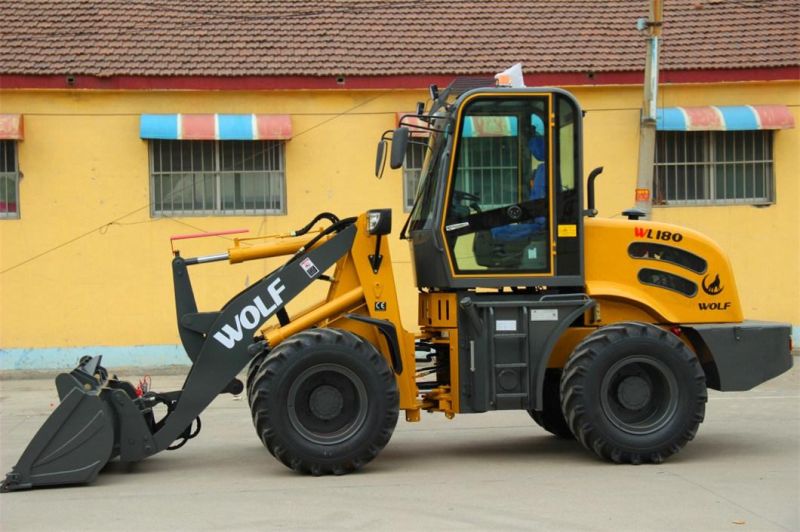

Detailed pictures about WL180 wheel loader

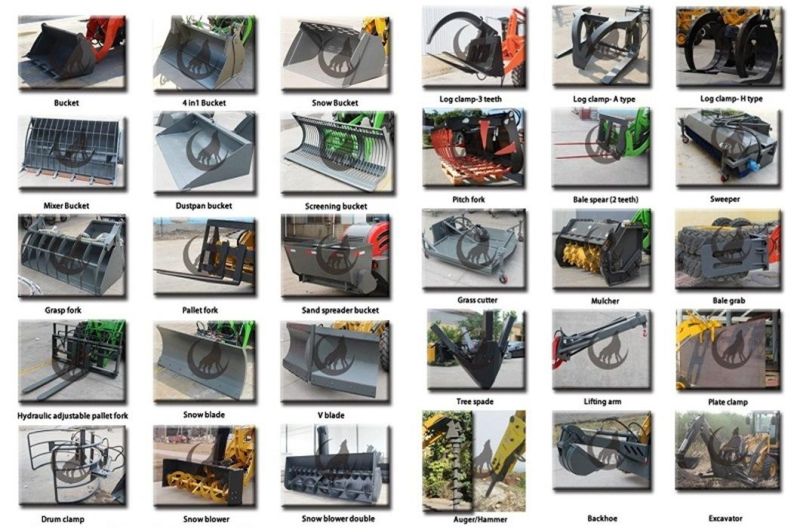

Optional Attachments about WL180 , she can do different jobs for you.
3.Company Profile
4.Company Strength Display
5.Engineering Case
6.Products Packing Logistics
7.FAQ
FAQ:
1.How long is your lead time?
30~40days after receiving the deposit
2.How is the warranty?
Our warranty time is 1 year from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of WOLF?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.
Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from WOLF?
If there is any using problem, we can provide online or video guidance.
If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site.
Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose WOLF?
Wolf Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
