Construction Machinery Zl930 Front Bulldozer with Concrete Mixer
Qingdao Zongjin Engineering Machinery Co., Ltd.- Warranty：1 Year
- Certification：TUV, ISO, CE, Rops & Fops
Base Info
- Model NO.：WL300
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Rated Bucket Capacity：1.7-2.5 Cubic Meter
- Rated Power：92 Kw
- Tyre：17.5-25
- Max.Dump Height：3100 mm
- Operation Weight：9600kg
- Bucket Capacity：1.7-2.5m3
- Maximum Traction Force：95 Kn
- Maximum Breakout Force：127 Kn
- Maximum Grade Ability：30°
- Maximum Dump Height：3100 mm
- Maximum Dump Reach：1006 mm
- Minimum Turning Radius：5097 mm
- Engine Maximum Torque：500n.M
- Min. Fuel-Consume Ratio：<=210kw H
- Gearbox Mode：Power Shaft Normally Engaged Straight Gear
- Transport Package：1 Set,20gp Container, 3 Sets,40hq Conatiner.
- Specification：LxWxH(mm)6890x2430x3070
- Trademark：WOLF
- Origin：Shandong
- HS Code：84295100
- Production Capacity：3000 Sets,Year
- Package size per unit product：718.00cm * 237.00cm * 320.00cm
- Gross weight per unit product：10000.000kg
Description
PerformanceRated loading 3000kg Overall weight 9600kg Bucket capacity 1.7-2.5m3 Maximum traction force 95KN Maximum breakout force 127KN Maximum grade ability 30° Maximum dump height 3100mm Maximum dump reach 1006mm Overall dimension (L×W×H) 6890*2430*3070mm Minimum turning radius 5097mm Engine Model WeichaiDeutz TD226B
CUMMINS 6BT5.9-C130 Type Vertical, in-line, water cooled, 4-stroke diesel engine NO. of cylinder-bore*stroke 6-108*125 Rated power 92kw-97kw-2200r/min Maximum torque 500N.m Min. fuel-consume ratio <=210Kw h Transmission system Torque converter HangChi 428 Gearbox mode Power shaft normally engaged straight gear Gears 2forward 1 reverse Maximum speed 40km/h Drive axles Main reducing spiral Bevel gear grade 1reduction Decelerating mode Planetary reduction grade 1 Wheel base (mm) 2660mm Wheel tread 1800mm Ground clearance 400mm Hydraulic system System working pressure 16,5MPa Boom lifting time 4.83 Total time 9.15±0.5s Brake system Service brake Air assist disc brake on 4 wheels Parking brake Manual disk brake Tyre Type specification 17.5-25 Front tyre pressure 0.4Mpa Rear tyre pressure 0.35Mpa

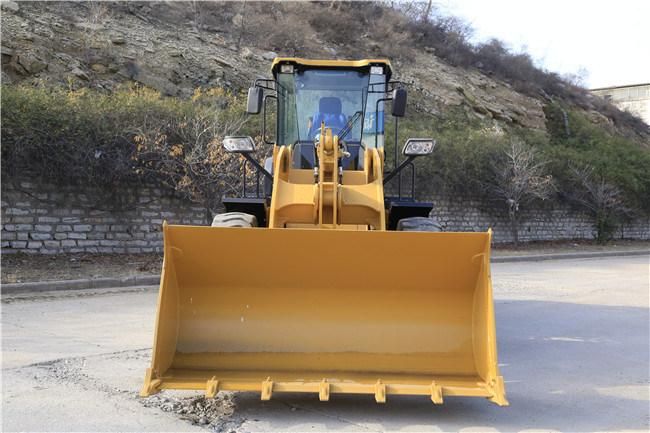

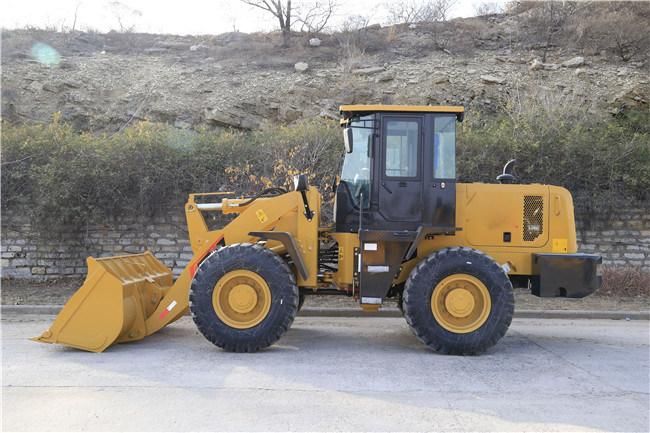

Detailed pictures about WL300 wheel loader

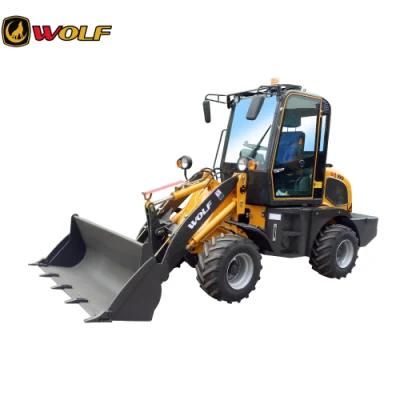

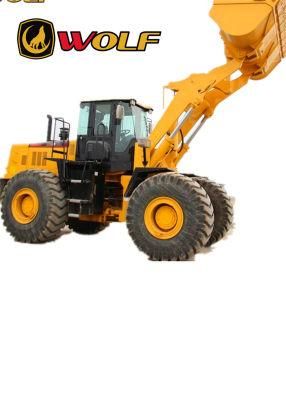

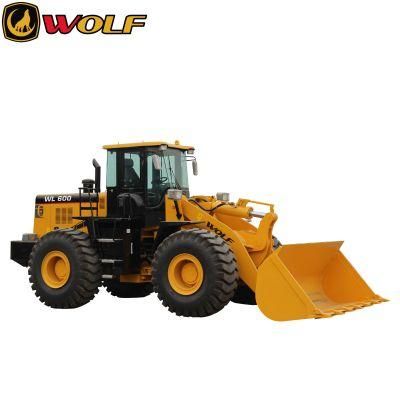

2.Products Categories
3.Company Profile
4.Company Strength Display
5.Engineering Case
6.Products Packing Logistics
7.FAQ
FAQ:
1.How long is your lead time?
30~40days after receiving the deposit
2.How is the warranty?
Our warranty time is 1 year from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of WOLF?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.
Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from WOLF?
If there is any using problem, we can provide online or video guidance.
If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site.
Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose WOLF?
Wolf Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
8.Our slogan
QUALITY WITHOUT COMPROMISE
