• Model NO.：XD122E
• Condition：New
• Operating Weight：12300kg
• Static Linear Load：297,297n,Cm
• I Speed：6km,H
• II Speed：12km,H
• Min. Turning Radius(Inside/Ouside)：4870,7000mm
• Vibration Frequency：50,67Hz
• Nominal Amplitude：0.3,0.8mm
• Engine, Model：Deutz Bf04m2012c
• Rated Power：2300 R,Min,98kw
• Transport Package：Nude Packing
• Specification：6220X2340X3200mm
• Origin：Jiangsu, China
• HS Code：84294019
• Production Capacity：1000,PCS

Basic Info.

Model NO. XD122E Condition New Operating Weight 12300kg Static Linear Load 297/297n/Cm I Speed 6km/H II Speed 12km/H Min. Turning Radius(Inside/Ouside) 4870/7000mm Vibration Frequency 50/67Hz Nominal Amplitude 0.3/0.8mm Engine, Model Deutz Bf04m2012c Rated Power 2300 R/Min,98kw Transport Package Nude Packing Specification 6220X2340X3200mm Origin Jiangsu, China HS Code 84294019 Production Capacity 1000/PCS

Product Description

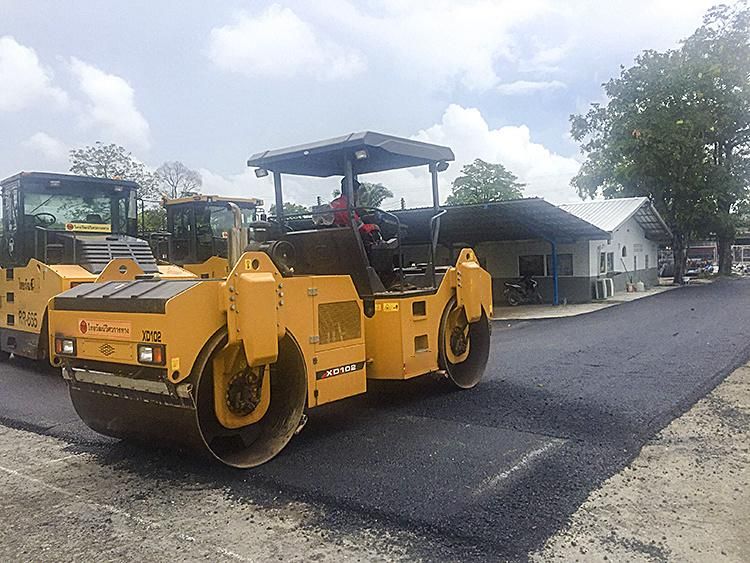

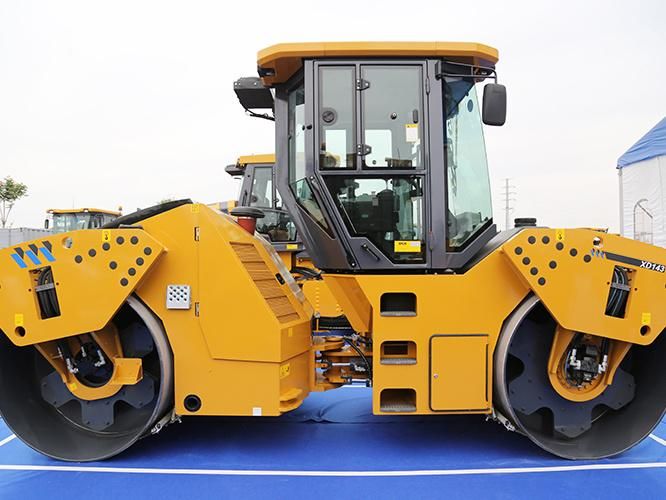

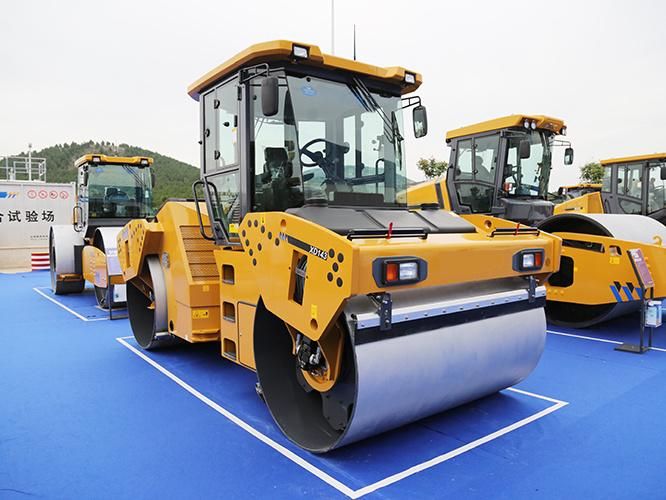

China 12 Ton Vibratory Double Drum Road Roller XD122E

12 Ton Vibratory Double Drum Road Roller

XD122/XD132/XD142 is the second generation of  tandem double-drum high frequency vibratory compactor, and the fashionable appearance and advanced design concept show the high quality image product. The machine features excellent compaction performance in terms of the reasonable compaction width, crab form design and drum of large diameter, the international leading high-frequency vibration and average compaction technology. It makes use of the speed frequency management system in the compaction to get the best operation easily. The scientific design and advanced production equipment ensure the machine distributes reasonably in the weight and drum barycenter. Thus the customer could get the satisfying compaction uniformity.

Excellent compaction weight
67HZ high frequency vibration, form the smooth road surface due to the nearer impact distance, and improve the operation efficiency. It is the best choice for thin paving compaction and high-level road compaction.
The application of uniform compaction greatly improves the compaction quality and compaction uniformity.

Efficient operation
The reasonably matched engine system features fuel saving, endurance and high reliability in tough condition. The design of the spring seat cushion greatly improves the vibration and noise level.
The independent cooling system could ensure the cooling requirement even in tough working condition.
The closed hydraulic drive system of imported heavy load variable pump and variable motor ensures the excellent drive performance and gradeability of the compactor. Dual-gear stepless speed change meets the requirement of the different conditions.
Dual-pump dual-motor vibratory system could realize the separate vibration of front or rear drum.
The reasonably match of system damping coefficient ensures the stability of machine in vibration, improving the compaction quality and the service life of the component.

Top control technology
The machine features intelligent control due to the advanced PLC and CAN mastering control technology. The control system could display the parameter in real time, and warn automatically for the fault and indicate the output status and the fault record and search function.
Speed frequency management function. The user could get the best compaction according to the three-color stripe of red, yellow and blue.
The automatic vibration and watering function could reduce the operation times of the user and the labor intensity. When the machine speed reaches the set speed, it will be vibrating and watering automatically.
The large screen colorful LCD shows multiple parameters and warning information clearly.

Perfect detailed design
The ergonomic cab provides comfortable environment for the operator. The rotating and adjustable control panel ensures the excellent visibility for the operator in all kinds of compaction condition.
The glued glass window avoids the metal frame which could influence the visibility, and ensure the safe view. The operator could see the object 1x1m from the front and rear frames from the cab.
The efficient air conditioning features reasonably wind output distribution, and the operator could operator comfortably in any condition.
The engine hood consists of left, middle and right parts. Two side doors could be opened in large angle, which is convenient for the user to repair and maintain the engine and hydraulic system. The air channel on two side doors could meet the cooling requirement of the whole system.
The side hydraulic hose configuration of the frame adopts the hidden design to ensure the safety of the hose.

Type	Unit	Specifications
Operating Weight	kg	12300
Static Linear Load	N/cm	297/297
Speed Range
I Speed	km/h	6
II Speed	km/h	12
Theoretical Gradeability	%	42
Min. Turning Radius(Inside/Ouside)	mm	4870/7000
Vibration Frequency	Hz	50/67
Nominal Amplitude	mm	0.3/0.8
Centrifugal Force	kN	103/159
Drum Diameter	mm	1300
	mm	2130
Engine, Model		DEUTZ BF04M2012C
Rated Power	kW	2300 r/min,98
