• Model NO.：Xs163j
• Travel Speed：30cm,s
• Certification：ISO 9001:2000
• Condition：New
• Operating Weight(Kg)：16000
• Load Applied on Front Drum：7700kg
• Static Linear Load：362n,Cm
• Theoretical Gradeability：30%
• Min. Outer Turning Radius：6500mm
• Vibration Frequency：28Hz
• Nominal Amplitude (High/Low)：1.9,0.95mm
• Exiting Force (High/Low Amplitude)：290,145kn
• Engine Model：Shanghai Diesel Engine Sc4h140.192
• Max. Power：103kw
• Transport Package：Nude Packing
• Specification：6220X2340X3200mm
• Origin：Jiangsu, China
• HS Code：84294019
• Production Capacity：1000,PCS

Basic Info.

Model NO. Xs163j Travel Speed 30cm/s Certification ISO 9001:2000 Condition New Operating Weight(Kg) 16000 Load Applied on Front Drum 7700kg Static Linear Load 362n/Cm Theoretical Gradeability 30% Min. Outer Turning Radius 6500mm Vibration Frequency 28Hz Nominal Amplitude (High/Low) 1.9/0.95mm Exiting Force (High/Low Amplitude) 290/145kn Engine Model Shanghai Diesel Engine Sc4h140.192 Max. Power 103kw Transport Package Nude Packing Specification 6220X2340X3200mm Origin Jiangsu, China HS Code 84294019 Production Capacity 1000/PCS

Product Description

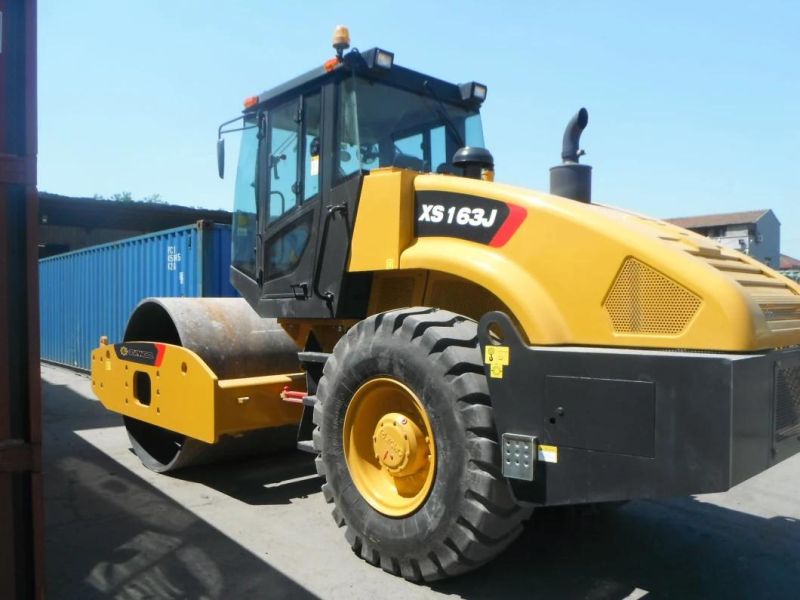

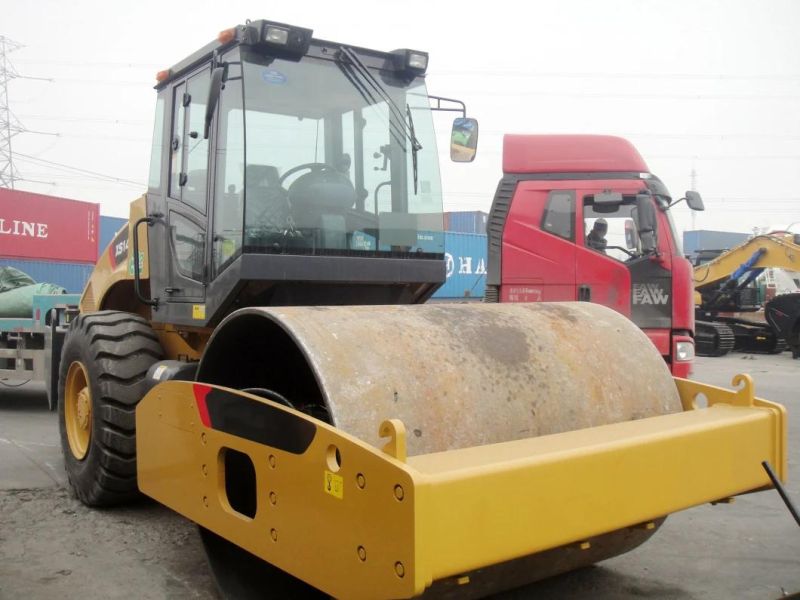

Energy-saving Xs163j 16 Ton Single Drum Vibratory Road Roller with Air Conditioner

Main parameter:
Operating weight :16 tons
Drum width: 2130 mm

Detailed configuration
* Shanghai SC4H140.192 engine 103KW
*Rexroth hydraulic system
* DANA axle
* Driving cabin with air conditioner equipped

Advantages
Maximum visibility.
Comfortable driving cabin, Easy for operation. Easy for maintain.
Reliable electrical system, Good performance in vibration.
XS163J vibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines and more.

Simple operation
The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
Adopt the gearbox with synchronizer, which is easy to operate.
The special compactor drive axle has the function of preventing slipping, featuring strong traction.

Reliable and durable hydraulic system
The standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16T, 18T). All those have a long service lifespan, supplying stable start-oscillation and oscillation stop and high compacting quality.

Energy-saving and environmentally friendly power
Shanghai diesel engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.

High efficient and reliable vibratory compacting system
Unique drum structure features good rigidity and intensity. The bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.
The vibratory bearing can be lubricated when the compactor travels, which is simple and convenient, ensuring a quite low lubricating system failure rate.
Adopt the numerical control blanking, numerical control plate rolling, numerical control bender, and numerical control horizontal machining center to ensure the precision of the whole machining.

Technical Specification:


Model	Unit	XS163J
Operating weight	kg	16000
Load applied on front drum	kg	7700
Static linear load	N/cm	362
Speed range	km/h	F/R
Gear I	km/h	2.85/2.88
Gear II	km/h	5.08/5.02
Gear III	km/h	11.17/-
Theoretical gradeability	%	30
Min. outer turning radius	mm	6500
Steering angle	°	±30
Swing angle	°	±11
Vibration frequency	Hz	28
Nominal amplitude (high/low)	mm	1.9/0.95
Exiting force (high/low amplitude)	kN	290/145
Engine model		Shanghai Diesel Engine SC4H140.192
Type		/
Max. power	kW	103
Hydraulic tank capacity	L	170
Fuel tank capacity	L	310
