• Model NO.：RP453L
• Certification：ISO9001: 2000, CE
• Condition：New
• Transport Package：Suitable Package for Shipment
• Specification：ISO, CE
• Trademark：EVANGEL
• Origin：Jiangsu, China
• Production Capacity：5 Sets Per Month

Basic Info.

Model NO. RP453L Certification ISO9001: 2000, CE Condition New Transport Package Suitable Package for Shipment Specification ISO, CE Trademark EVANGEL Origin Jiangsu, China Production Capacity 5 Sets Per Month

Product Description

4.5m Paving Width Concrete Asphalt Wheel Paver Machine RP453L

Feasures
As a miniaturized machine with 2.0 meter of the super narrow complete width and paving width, RP453L paver is satisfied to the requirement of urban zones and laneways.
   Configure with YC4D95Z-T21 water cooling diesel engine powered 70KW, the paver can be used in the west high altitude area due to its wide-range adaptability in altiplano and its adequate power reserve.
   The four-wheel driving and full hydraulic infinite displacements ensure the machine operated automatically, simply and promptly.
   The each side of conveyors and augers can be separately controlled automatically via the mixture level sensors both on the right and left.
   The main switch of electric system realizes that only one switch-point could operate all the functions of the whole machine including the auto leveling system. Therefore the operation is convenient and the smoothness can be improved efficiently.
   The well-known imported hydro-electric units keep the paver's stability and convenient maintenance
   The hydraulic extensible screed has the advantage in the construction of the laneway with variational width in the city, its vibration frequency can be adjusted infinitely and its paving width ranges from 2 meter to 4.5 meter conveniently.
   The automatic leveling system can accurately control the tolerance of longitudinal smoothness to 3mm/3 meter and the sensitivity of transverse slope to 2/10000 at the top of the criteria of highways.
   The Paver can hold up hopper sides wholly or one side separately to improve the travel capability of the road in construction site.

Parameters

Item	Unit	Parameter	Item	Unit	Parameter
Basic Working width	m	2.0	Slop leveling Tolerance	%	0.02
Max. working width	m	4.5	Crown adjust	%	0-3
Max. paving thickness	mm	150	Engine type		YC4D95Z-T21
Paving speed	Km/h	0-13	Rated output	KW	70
Traveling speed	Km/h	0-13	Rated Rev.	Rpm	2200
Theoretical Productivity	t/h	240	Tank capacity	L	130
Hopper capacity	T	12	Weight	T	10.5
Gradient Ability	%	20	Overall dimension	mm	5670x2070x3590
Smoothness	Mm/3m	3

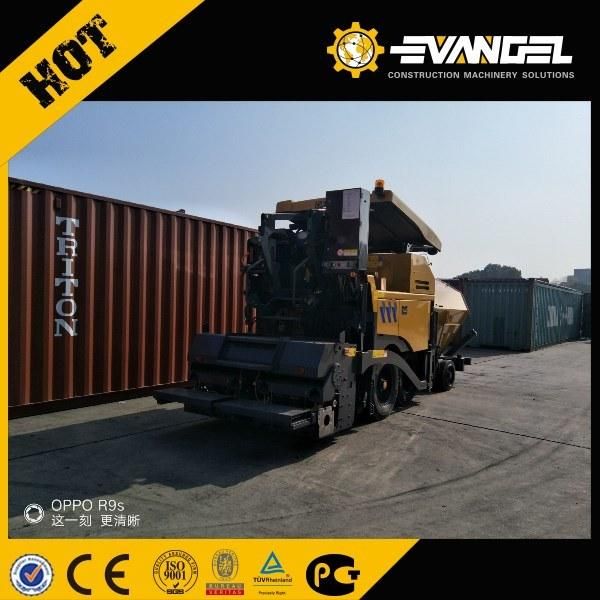

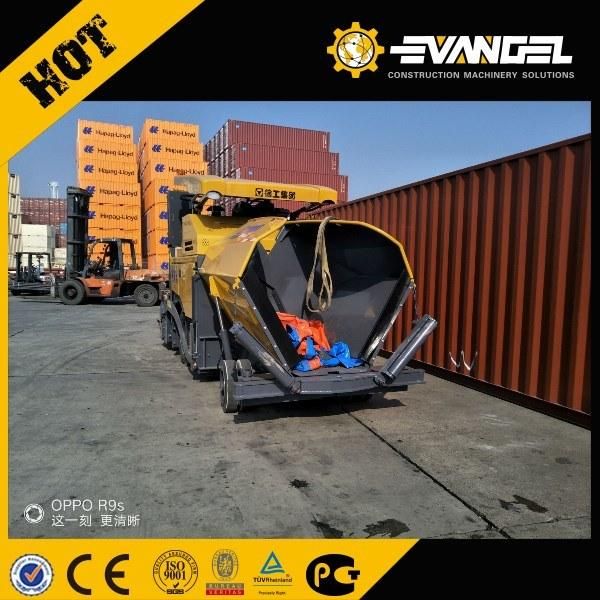

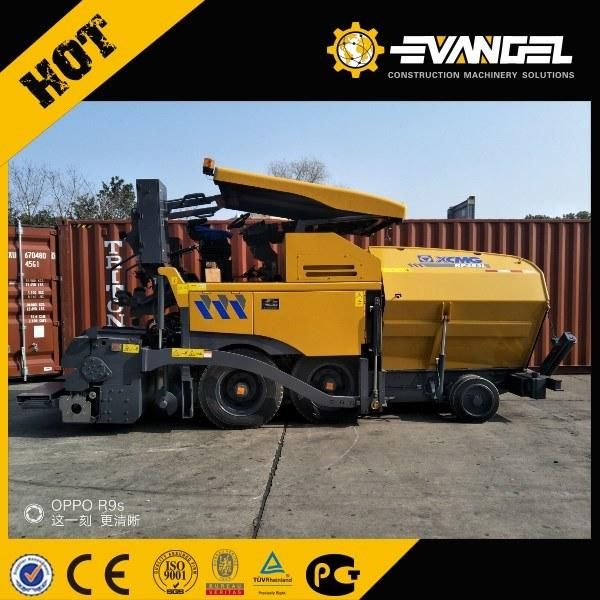

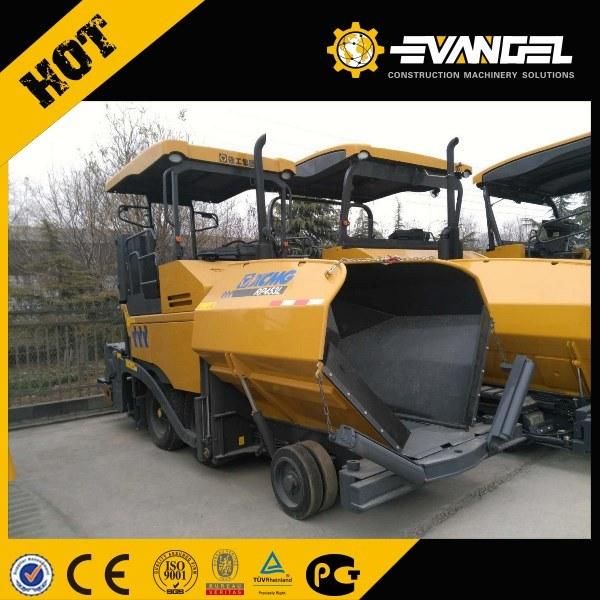

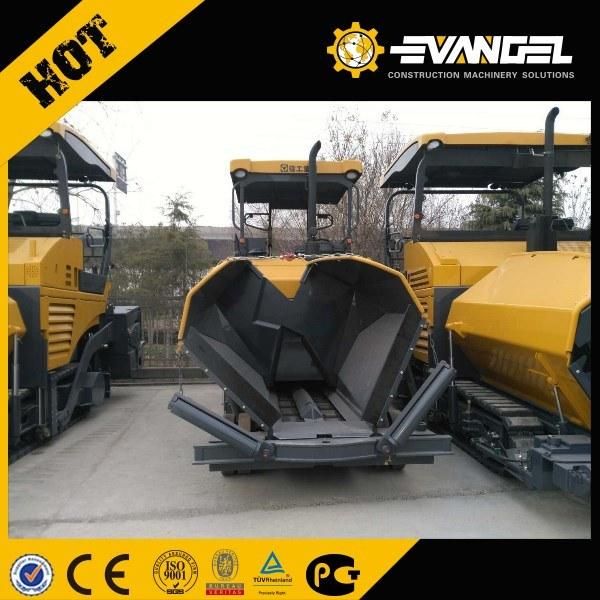

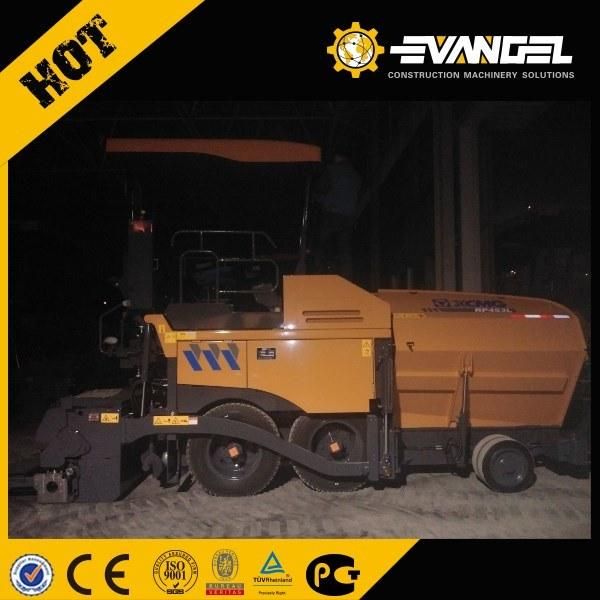

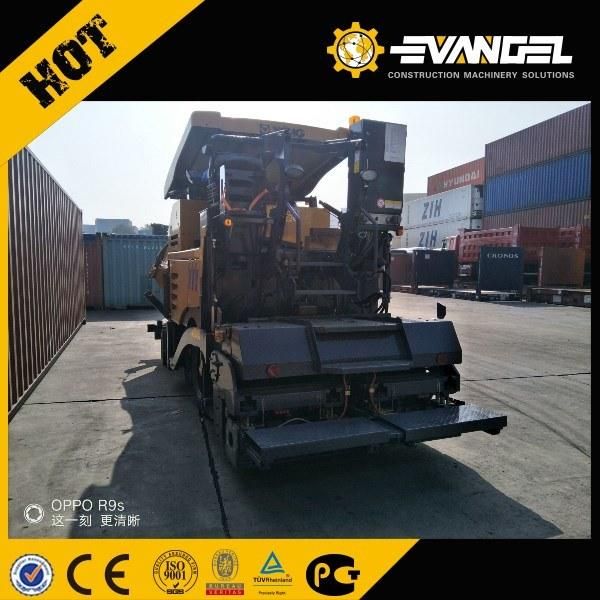

Pictures
