• Model NO.：Xs123
• Travel Speed：30cm,s
• Certification：CS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Weight：12000kg
• Power：97kw
• Static Linear Load：31.5kg,Cm
• Weight at Drum：6700kg
• Vibrational Frequency：30,35 Hz
• Rated Speed：2300rpm
• Transport Package：Suitable for Ocean Shipment
• Origin：China
• HS Code：84294011
• Production Capacity：1000 Set Per Month

Basic Info.

Model NO. Xs123 Travel Speed 30cm/s Certification CS, ISO 9001:2000, ISO 9001:2008 Condition New Weight 12000kg Power 97kw Static Linear Load 31.5kg/Cm Weight at Drum 6700kg Vibrational Frequency 30/35 Hz Rated Speed 2300rpm Transport Package Suitable for Ocean Shipment Origin China HS Code 84294011 Production Capacity 1000 Set Per Month

Product Description

12 Tons Small Road Machine Xs123 Hydraulic Single Drum Road Roller


Product Description

XS123 single drum roller is medium, self-propelled, full-hydraulic vibratory roller, has the big exciting force, high compaction efficiency, good compaction quality, used mainly for compaction operation of base coarse, sub-base coarse, stone filling of high-speed railway, high-grade highway, airport, harbor, dams and industrial construction site.

Parameter



Model	XS123
Operating weight(KG)	12000
Load on front drum(KG)	6700
Load on rear wheels(KG)	5300
Drum diameter(mm)	1523
Drum width(mm)	2130
Static linear load(N/cm)	308
Vibration frequency(Low/High)	28/35
Nominal amplitude(High/Low)(mm)	1.86/0.88
Excitation force(High/Low)	290/180
Travel speed(km/h)	0~10.4
Steering angle(°)	±30
Swing angle(°)	±10
Theoretical  gradeability(%)	45
Min. external turning radius(mm)	6415
Engine model	Cummins 4BTAA3.9-C125
Engine power(kW)	93
Rated engine speed(r/min)	2200
Overall length(mm)	5970
Overall width(mm)	2300
Overall height(mm)	3150

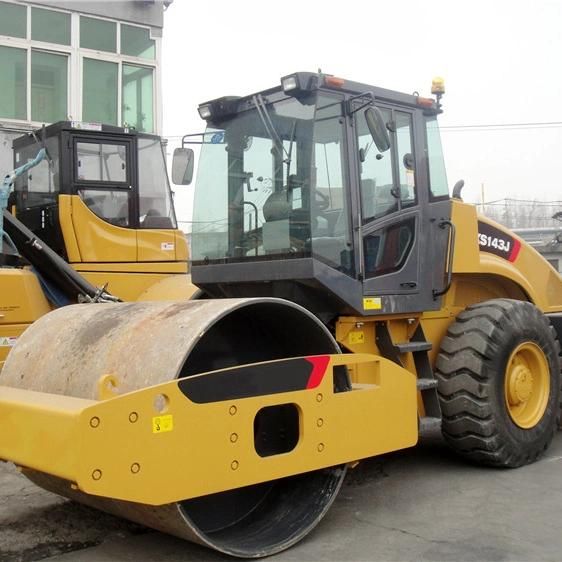

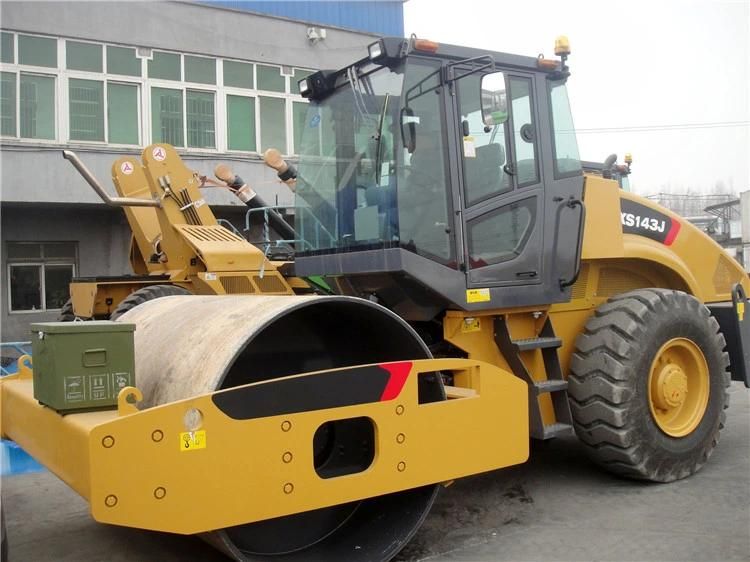

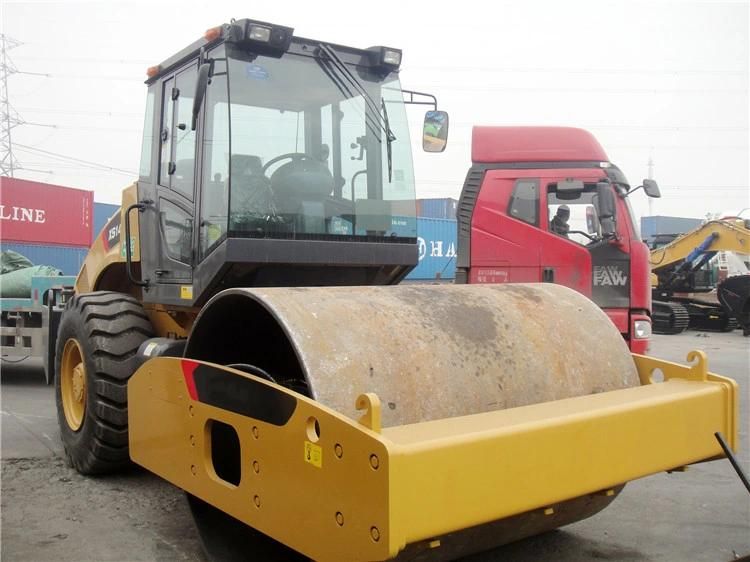

Product Show
