• Model NO.：MDHB-20
• Vibrating Amplitude：2.6mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Capacity：20ton,Hour
• Hot Asphalt Temperature：130-165(Adjustable)
• Transport Package：Nude Packing
• Specification：15.6*15*6
• Trademark：ORIEMAC
• Origin：China
• HS Code：87051092
• Production Capacity：100 Units,Month

Fuel Consumption (kg/t)AggregateBitumenCoalOilMDHB-2020ton/h±1.5%±1%7510-135.5-7

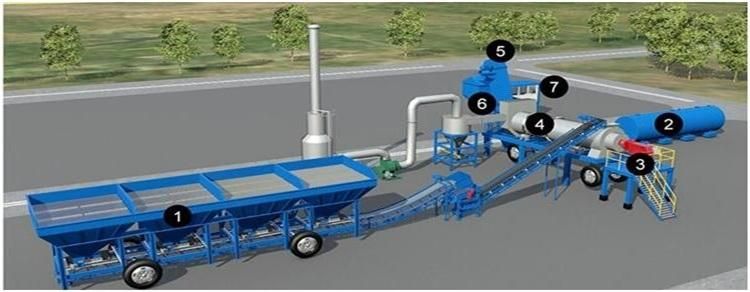

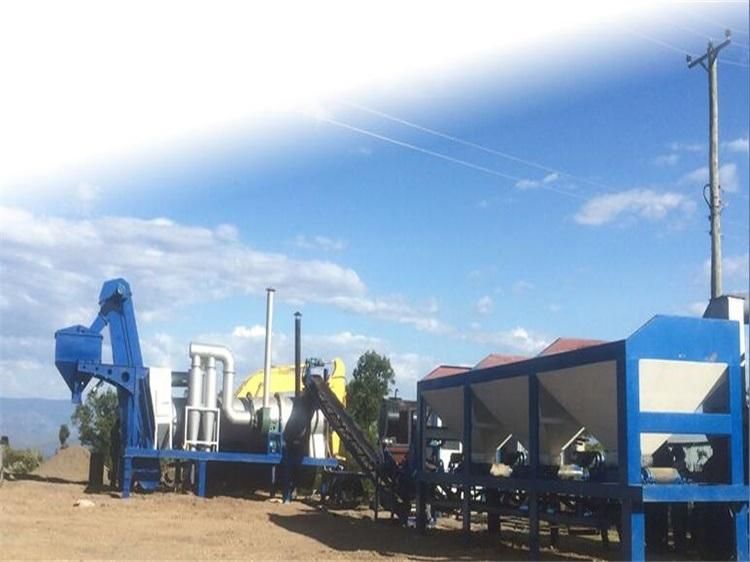

1. Cold aggregate feeder
2. Bitumen tank
3. Burner
4. Drying & mixing drum
5. Hot asphalt silo
6. Water dust filter
7. Control cabin


Model	MDHB20
Type	Continuous Hot  Mix
Capacity	20 Tons Per Hour
Drying & Mixing Drum	Φ1000*4500mm
Fuel Consumption	diesel consumption: 5.5-7.0 kg /ton
Weighing Precision	hot aggregate: ±0.5%; bitumen: ±0.3%
Hot Asphalt Temperature	130ºC-165ºC(adjustable)
Air Emissions	≤50mg/Nm³
Working Noise	≤70db(A)
Operation	Full Auto/Manual Operation
Installation Power	25.15kw
Electrical Design	220V/380V-50Hz(adjustable)
Plant Covering Area	Length:15.6meters, width:15m, max. height point: 6m
Documents	Lay-Out/ Electric Circuit Diagram; Chinese-English Operation Manual; Qualification Certificate
