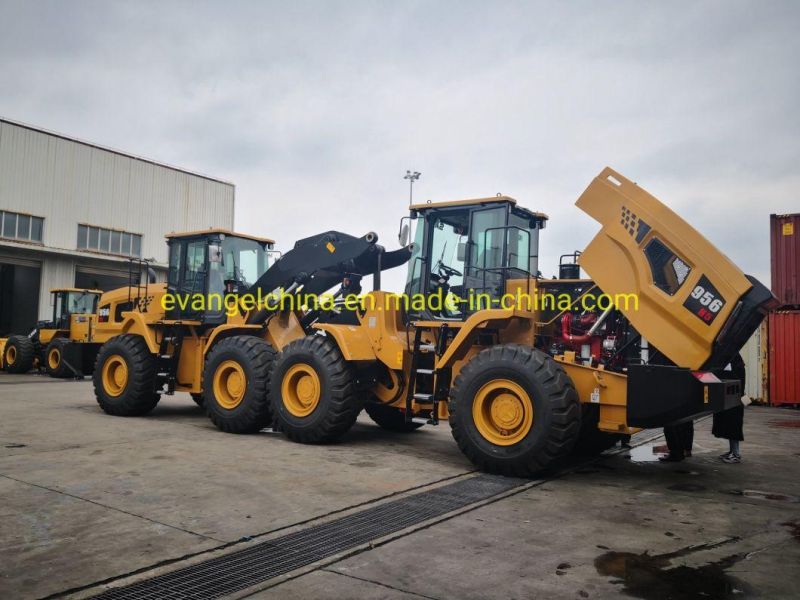

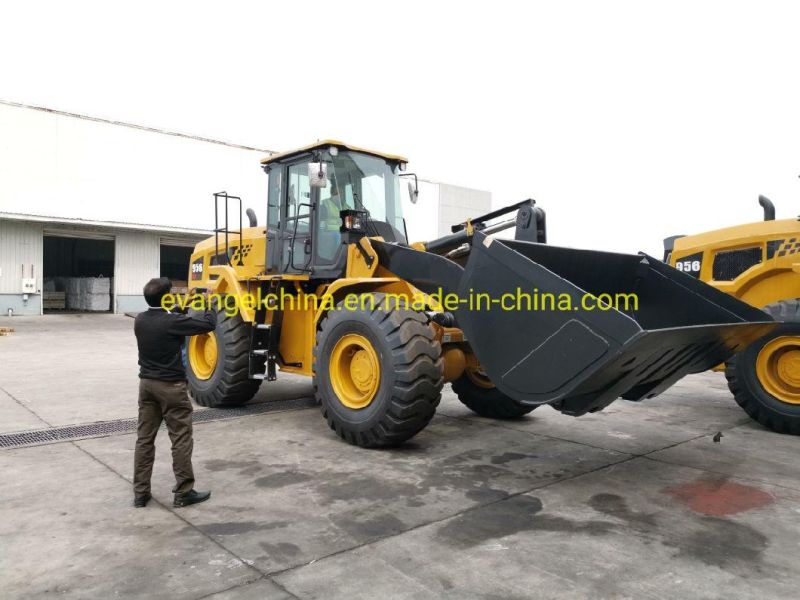

5 Ton Wheel Loader Sw405K with EPA to North America
Evangel Industrial (Shanghai) Co., Ltd.- Certification：ISO, EPA
- Condition：New
- Rated Load：3-6t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Crawler
Base Info
- Model NO.：SW405K
- Type：Medium-sized Loader
- Engine：Deutz Tcd7.8L6
- Rated Power：170,1800 Kw,Rpm
- Torque：962 FT Lbs,1304nm,1450rpm
- No. of Cyliners：6
- Displacement：7.8L
- Bore X Stroke：110mm X 136mm
- Hydraulic System Type：Load Sensing Hydraulic System
- Cycle Time：10.6s
- Transport Package：Nude Packing
- Trademark：EVANGEL
- Origin：China
- Production Capacity：200units,Month
Description
Basic Info.
Model NO. SW405K Type Medium-sized Loader Engine Deutz Tcd7.8L6 Rated Power 170/1800 Kw/Rpm Torque 962 FT Lbs/1304nm/1450rpm No. of Cyliners 6 Displacement 7.8L Bore X Stroke 110mm X 136mm Hydraulic System Type Load Sensing Hydraulic System Cycle Time 10.6s Transport Package Nude Packing Trademark EVANGEL Origin China Production Capacity 200units/MonthProduct Description
5 ton wheel loader SW405K with EPA to North AmericaCustomized DANA transmission:
The DANA axis-shift transmission with electronic control system is used for automatic shifting, maximum efficiency and 10k-hour service life.
F/R handle and fingertips control realize ease of switch between left and right hands.
Solenoid valve + logic control achieve a much smoother shifting and faster response.
High-pressure load-sensitive hydraulic system:
Perfect match between speed and power, 10%-15% energy saving.
The 25MPa high-pressure hydraulic system and main valve of large displacement achieves higher breakout and lifting force.
Reinforced structural components:
For heavy-duty mining applications with a service life reaching 10k hours.
| Motor |
| Model |
| DEUTZ TCD7.8L6 |
| Power |
| 170/1800 kW/rpm |
| Torque |
| 962 ft lbs/1304Nm/1450rpm |
| No. of cyliners |
| 6 |
| Displacement |
| 7.8L |
| Bore x Stroke |
| 110mm x 136mm |
| Hydraulic System |
| Hydraulic System Type |
| Load sensing hydraulic system |
| Pump |
| Implement - Kawasaki Steering - Eaton/Danfoss |
| Max. flow |
| 81 GPM / 132L/min @ 2200rpm |
| System pressure |
| 3916 PSI / 27MPa |
| Cycle time |
| 10.6 s |
| Transmission |
| Gear-shift model |
| Automatic, Manual, KD |
| Travel speed |
| forward 4.4/8/16/25 mph, reverse 4.4/8/16 mph |
| Service brakes |
| Wet Disk |
| Parking brake |
| SAHR Disk Brake |

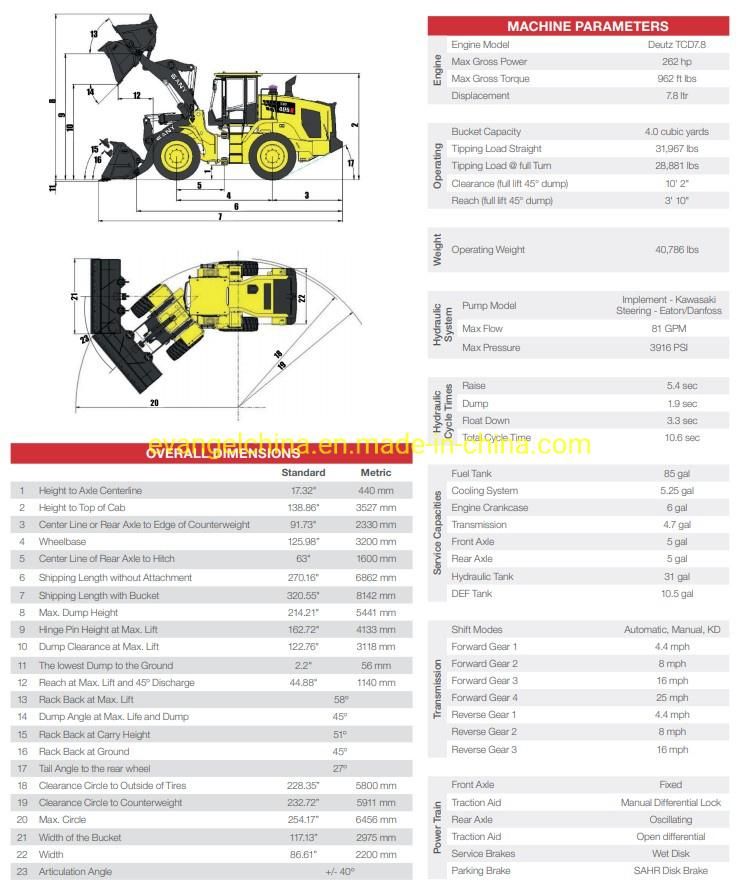

| Dimensions |
| Height to axle centerline |
| 440mm |
| Centerline of rear axle to edge of counterweight |
| 2330mm |
| Wheelbase |
| 3200mm |
| Centerline of rear axle to hitch |
| 1600mm |
| Shipping length |
| 6862/8142mm |
| Max. dump height |
| 5441mm |
| Hinge pin height at max.lift |
| 4133mm |
| Dump clearance at max.lift |
| 3118mm |
| The lowest dump to the ground |
| 56mm |
| Reach at max.lift and 45° discharge |
| 1140mm |
| Rack back at max.lift |
| 58° |
| Dump angle at max.lift |
| 45° |
| Rack back at carry height |
| 51° |
| Rack back at ground |
| 45° |
| Tail angle to the rear wheel |
| 27° |
| Clearance circle to outside of tires |
| 5800mm |
| Clearance circle to counterweight |
| 5911mm |
| Max.circle |
| 6456mm |
| Bucket width |
| 2975mm |
